Side Air Bag

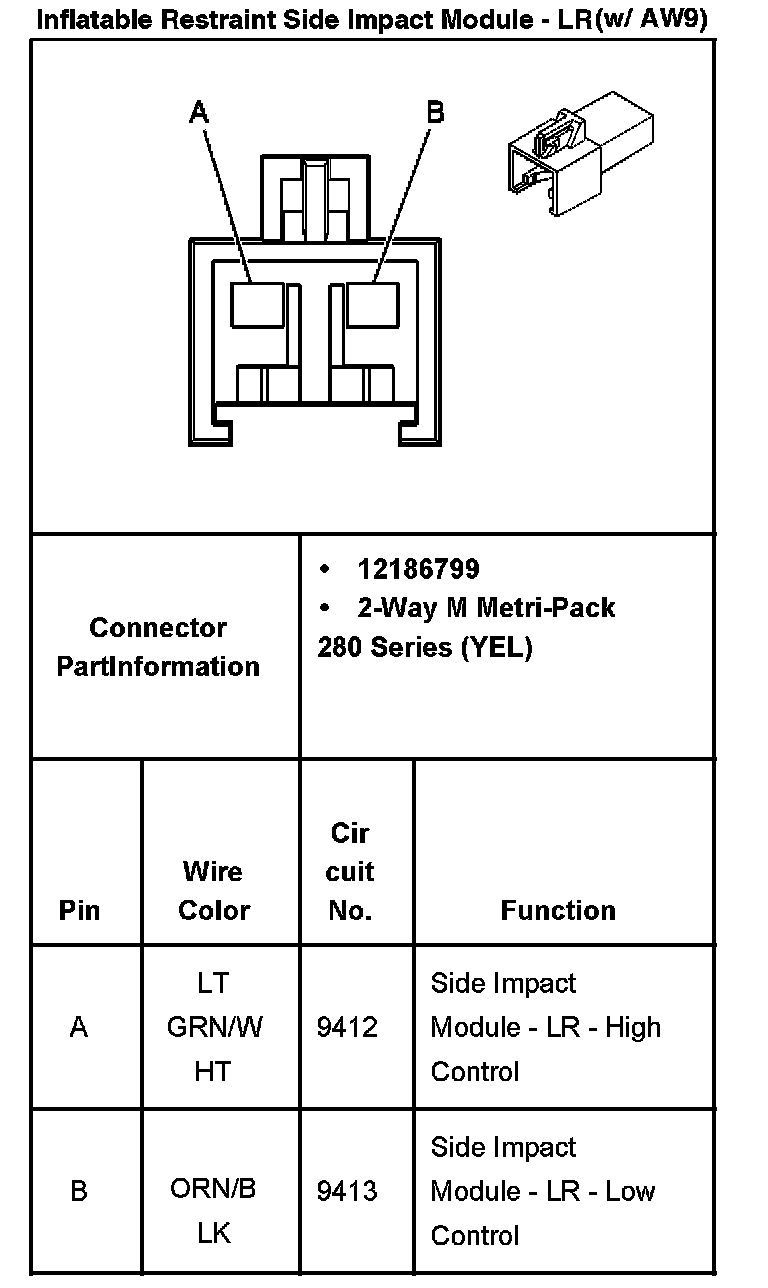

Inflatable Restraint Side Impact Module - LR (W/AW9):

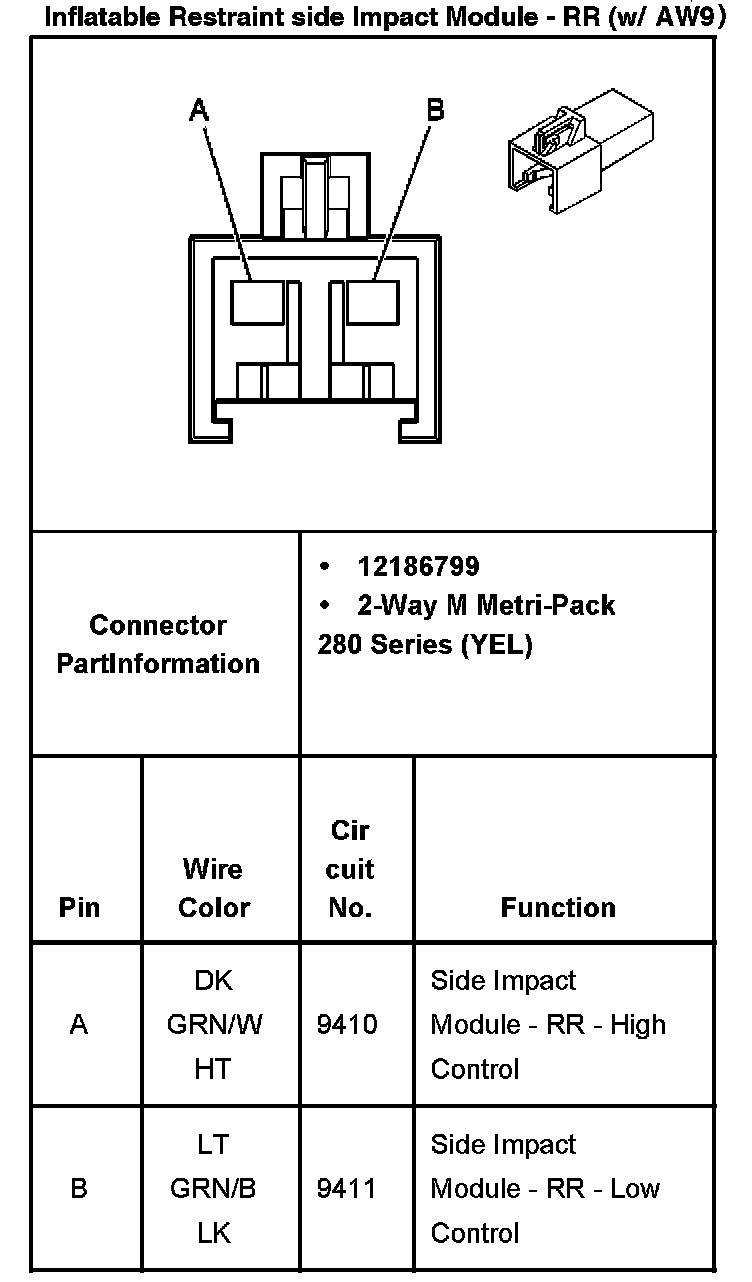

Inflatable Restraint Side Impact Module - RR (W/AW9):



Inflatable Restraint Side Impact Module And Seat Belt Pretensioner - LF:

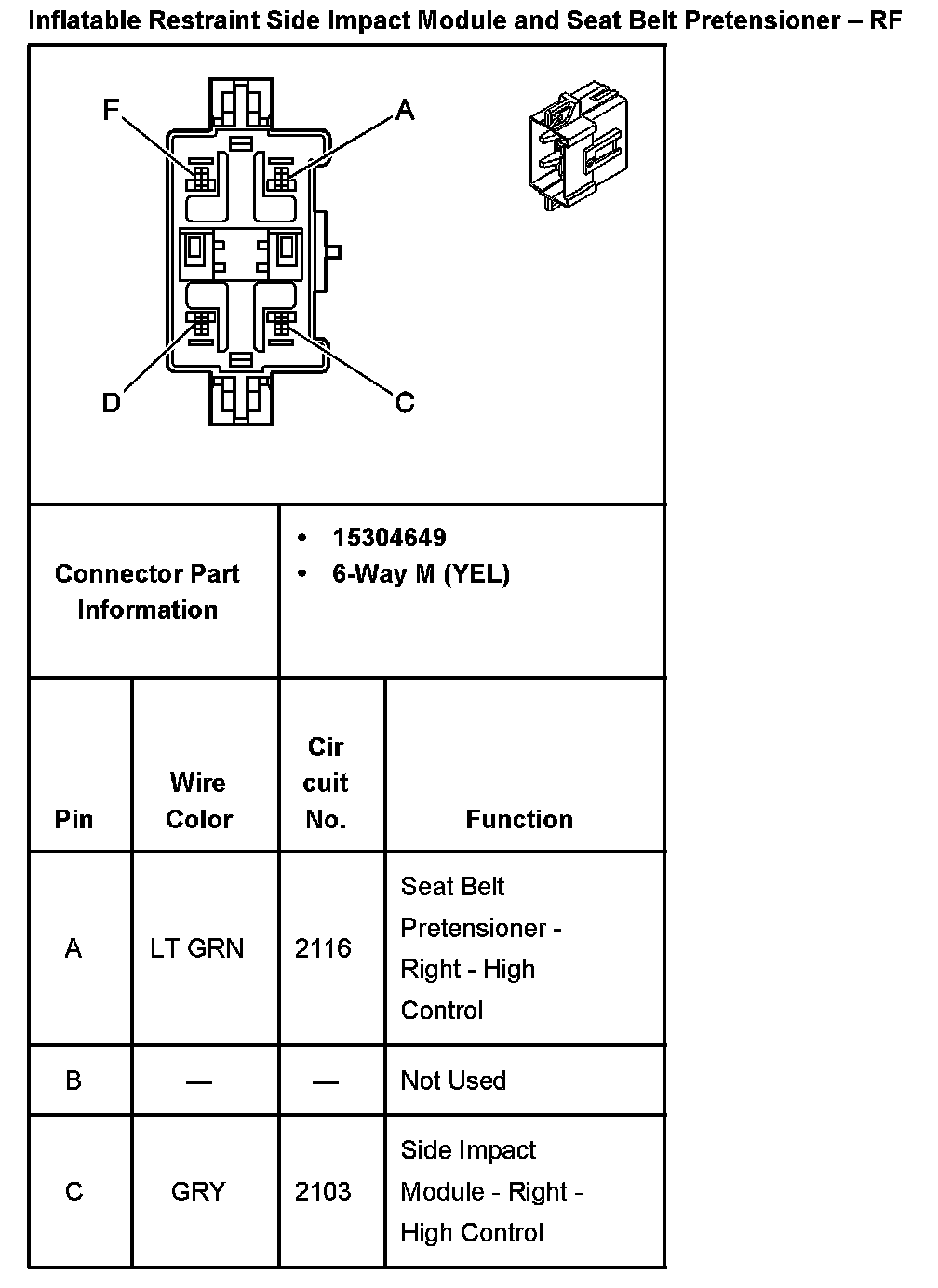

Inflatable Restraint Side Impact Module And Seat Belt Pretensioner - RF Part 1:

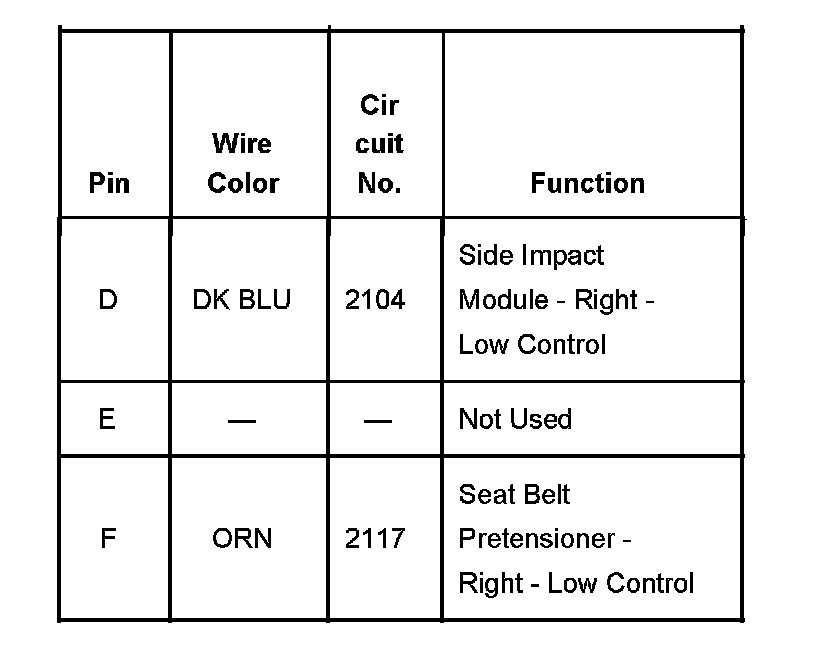

Inflatable Restraint Side Impact Module And Seat Belt Pretensioner - RF Part 2:
