Fluid Pan: Service and Repair

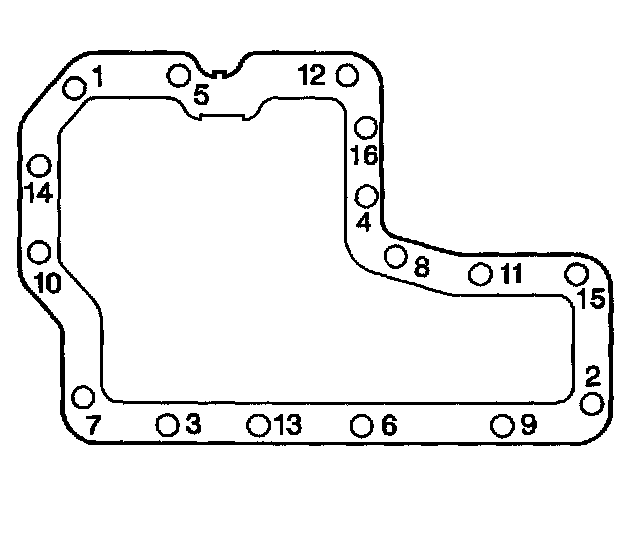

Pan bolts:
1st pass 3 Nm (27 inch lbs.)
2nd pass 6 Nm (53 inch lbs.)
3rd pass 12 Nm (106 inch lbs.)
