Arm Rest: Service and Repair

Armrest Replacement - Rear Seat

Removal Procedure

1. Remove the rear seat back. Refer to Seat Back Replacement - Rear (Seat Back Replacement - Rear).

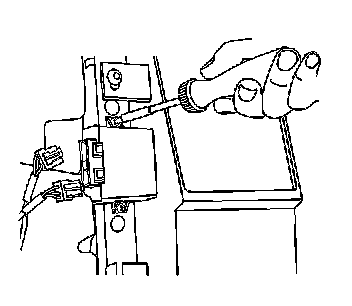

2. Disconnect the electrical connectors to the heated seat control module.
3. Remove the pass through access door assembly. Refer to Pass Through Access Door Replacement (Pass Through Access Door Replacement).

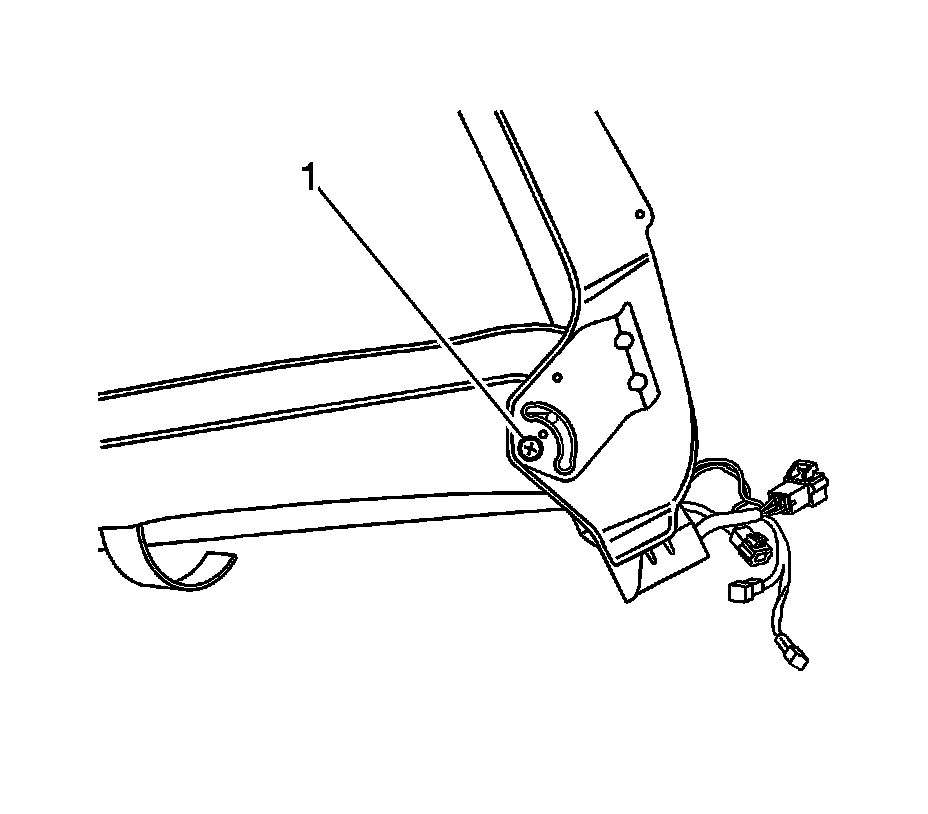

4. Remove the armrest retainers (1) from the armrest.
5. Remove the armrest.



Installation Procedure

1. Install the armrest to the pass through assembly.




2. Install the armrest retainers (1).

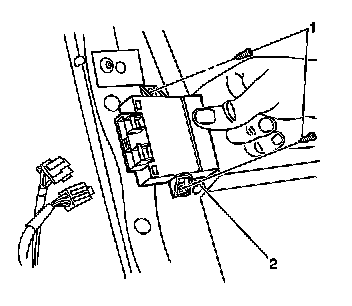

3. Connect the electrical connectors to the heated seat control module (2).
4. Install the pass through access door assembly. Refer to Pass Through Access Door Replacement (Pass Through Access Door Replacement).
5. Install the rear seat back. Refer to Seat Back Replacement - Rear (Seat Back Replacement - Rear).
