Transmission Pressure Test Port: Service and Repair

Oil Pressure Test Plug Replacement

Removal Procedure
1. Raise and support the vehicle.

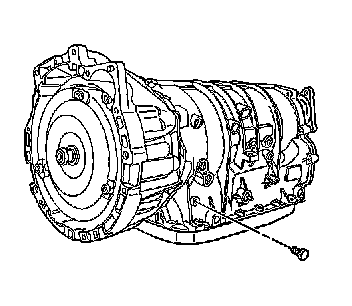

2. Remove and discard the oil pressure test plug.

Installation Procedure





1. Notice: Refer to Fastener Notice in Service Precautions.

Install a NEW oil pressure test plug.
Tighten the oil pressure test plug to 11 Nm (97 inch lbs.).
2. Check the transmission fluid level (fill if necessary).
3. Lower the vehicle.
