Transmission Cooler: Service and Repair

Auxiliary Automatic Transmission (AT) Oil Cooler Replacement

Removal Procedure





1. Remove the front air deflector.
2. Disconnect the auxiliary transmission cooler inlet line.
3. Disconnect the auxiliary transmission cooler outlet line.

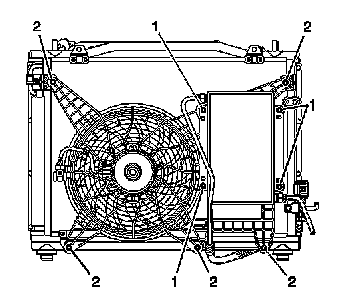

4. Remove the auxiliary transmission oil cooler mounting bolts (1).
5. Remove the auxiliary transmission oil cooler.

Installation Procedure
1. Install the auxiliary transmission oil cooler.

2. Notice: Refer to Fastener Notice in Service Precautions.

Install the auxiliary transmission oil cooler mounting bolts (1).
Tighten the bolts to 6.5 Nm (58 inch lbs.).
3. Connect the auxiliary transmission cooler outlet line.
4. Connect the auxiliary transmission cooler inlet line.





5. Install the front air deflector.
6. Check the transmission fluid level.
7. Check the auxiliary transmission oil cooler for leaks.
