Scan Tool Output Controls - Passenger Door Module (PDM)

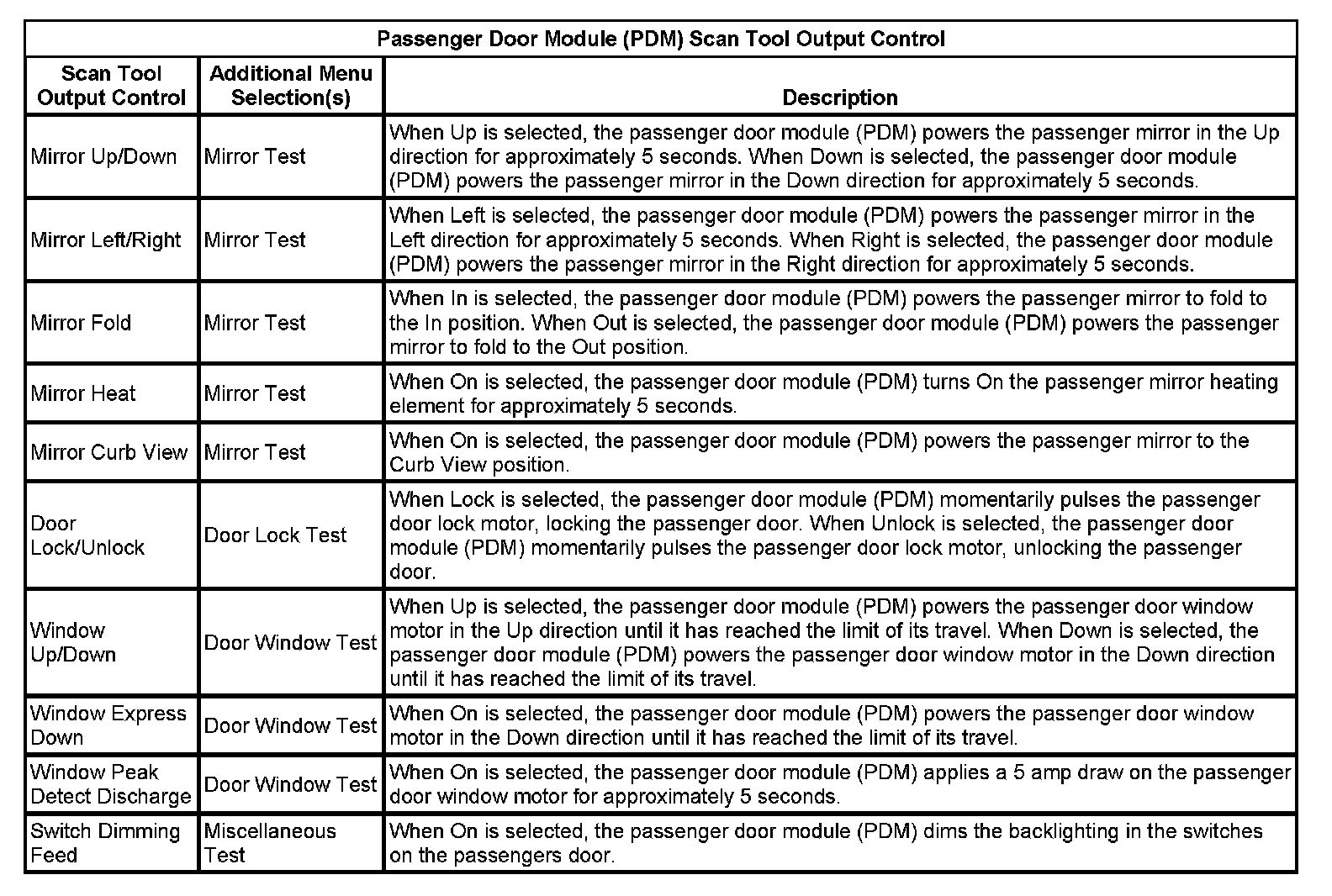

Passenger Door Module (PDM) Scan Tool Out Put Control:
