C202
C202

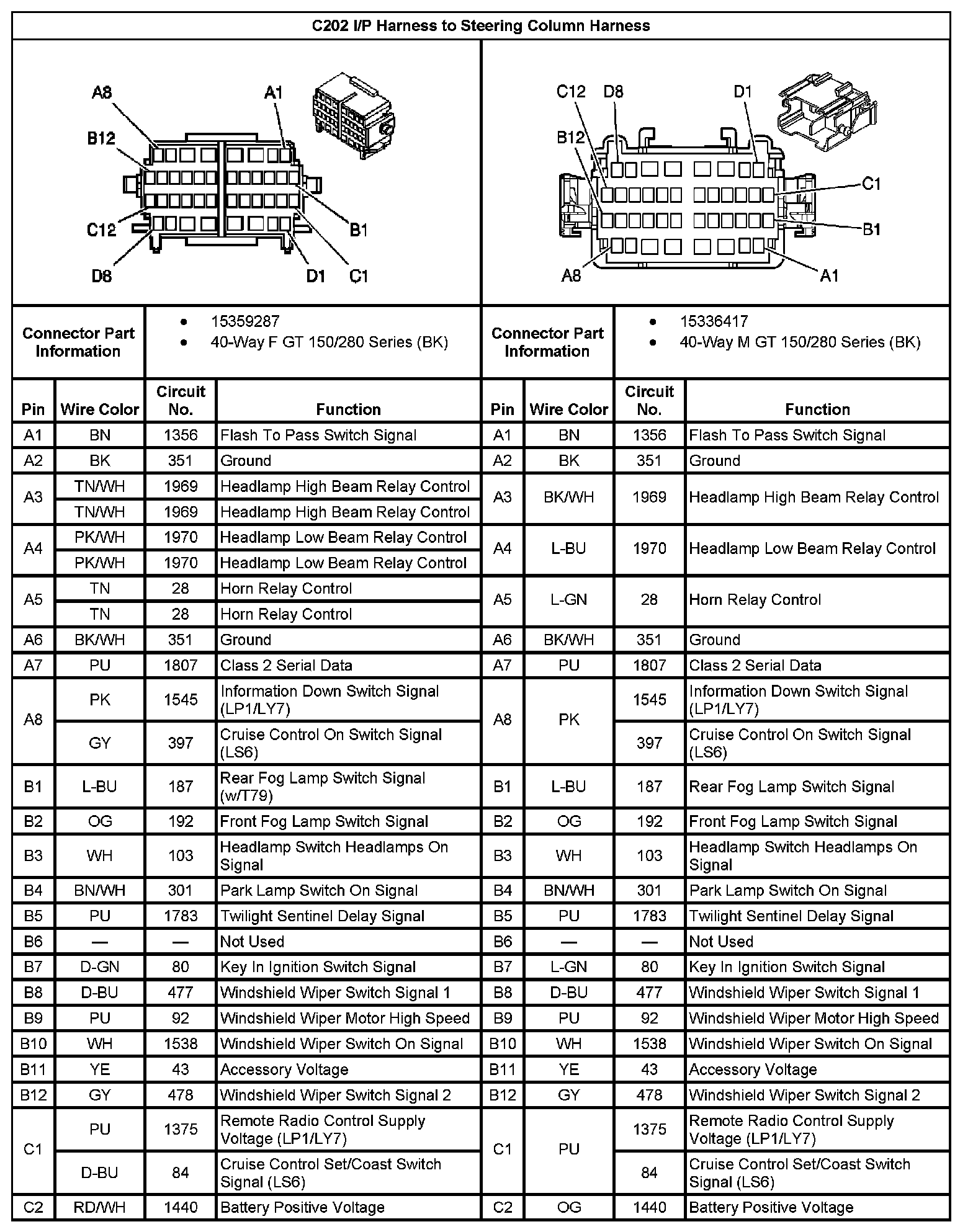

C202 IP Harness to Steering Column Harness Part 1:

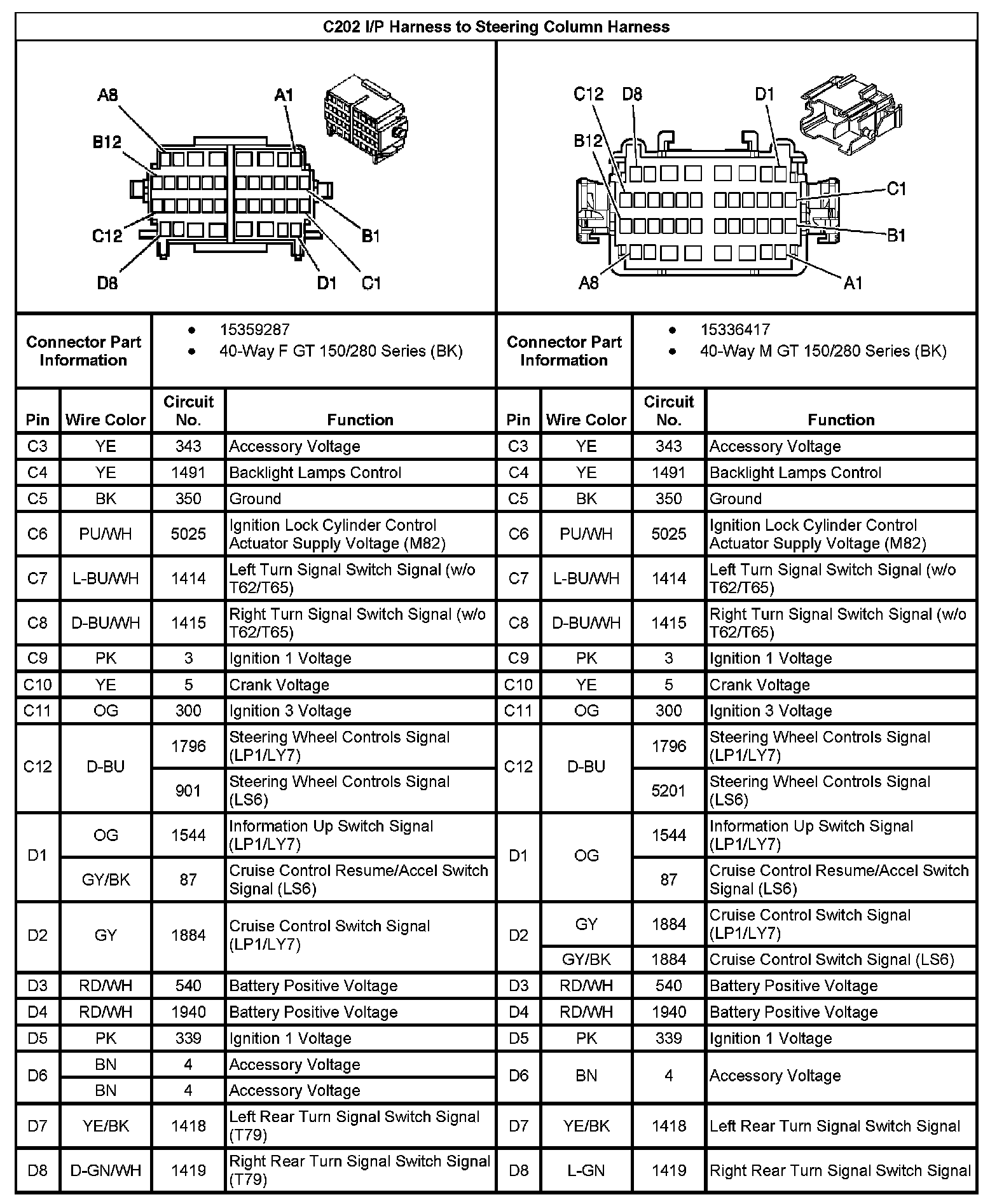

C202 IP Harness to Steering Column Harness Part 2:
