Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2005
>>
DeVille V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Vanity Lamp
>>
Vanity Mirror
Vanity Mirror
Vanity Mirror - Right:

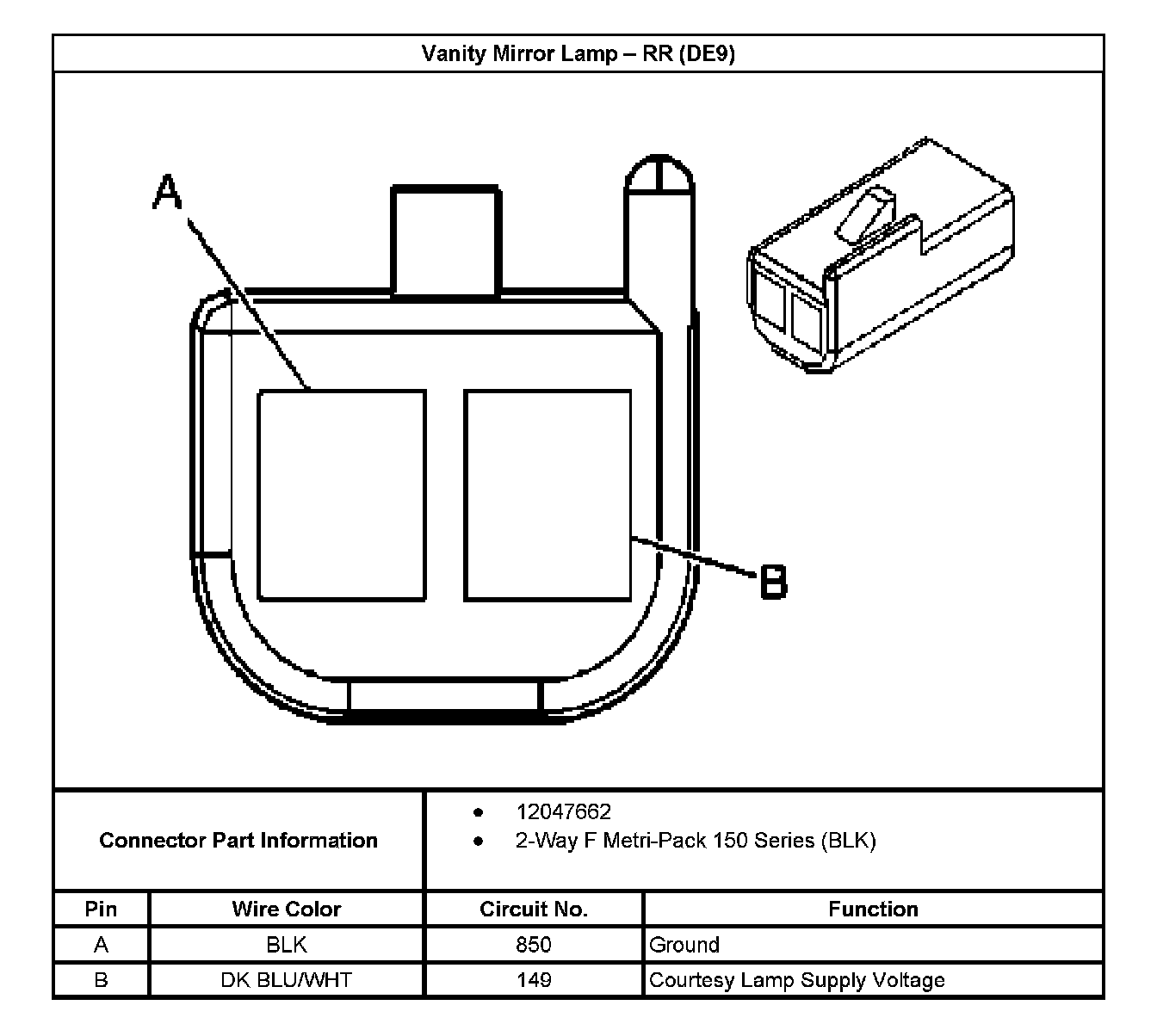

Vanity Mirror Lamp - RR (With RPO Code DE9):
