Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2005
>>
STS V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C200 - C299
>>
C200
C200

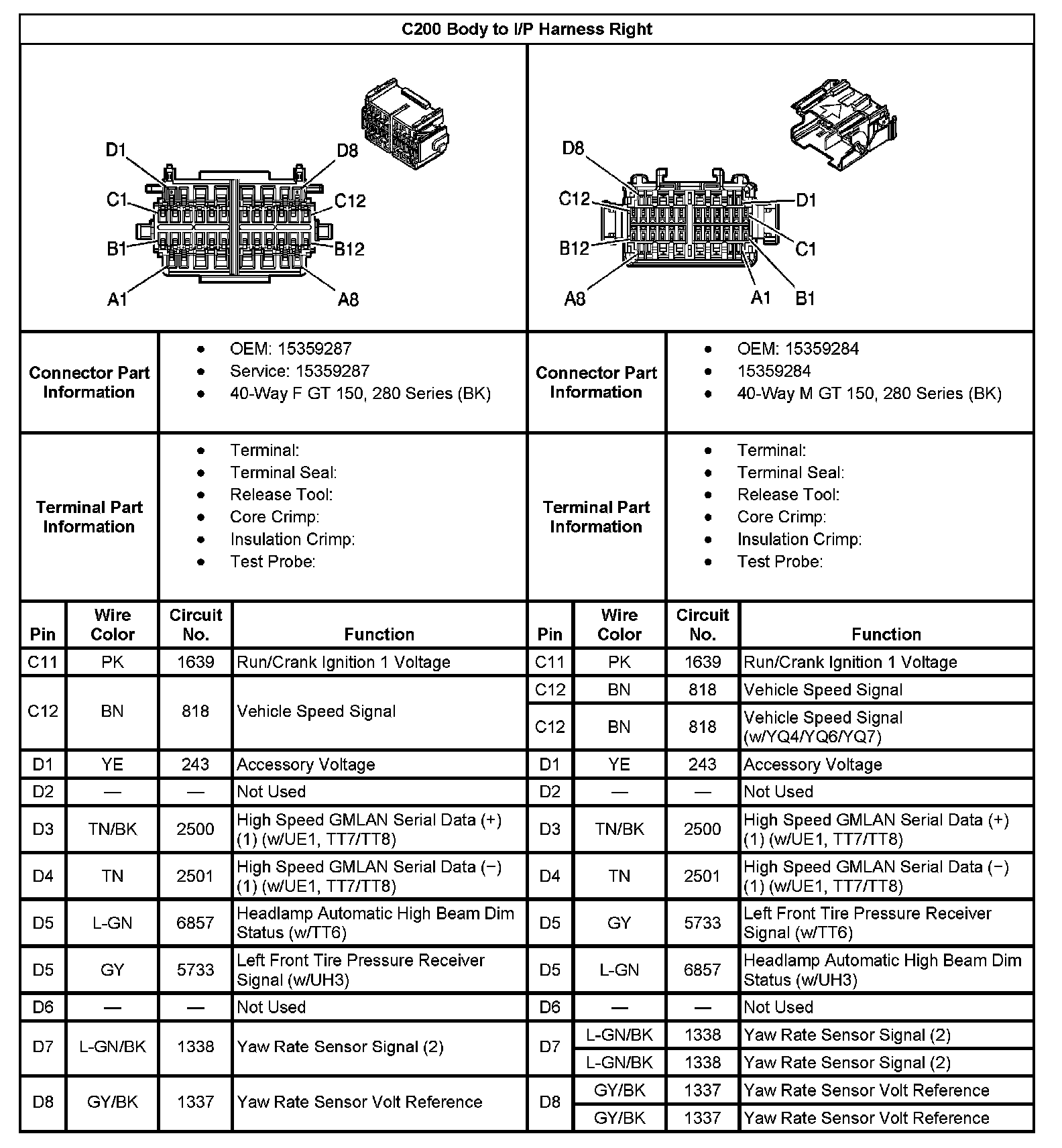

C200 Body To I/P Harness Right Part 1:

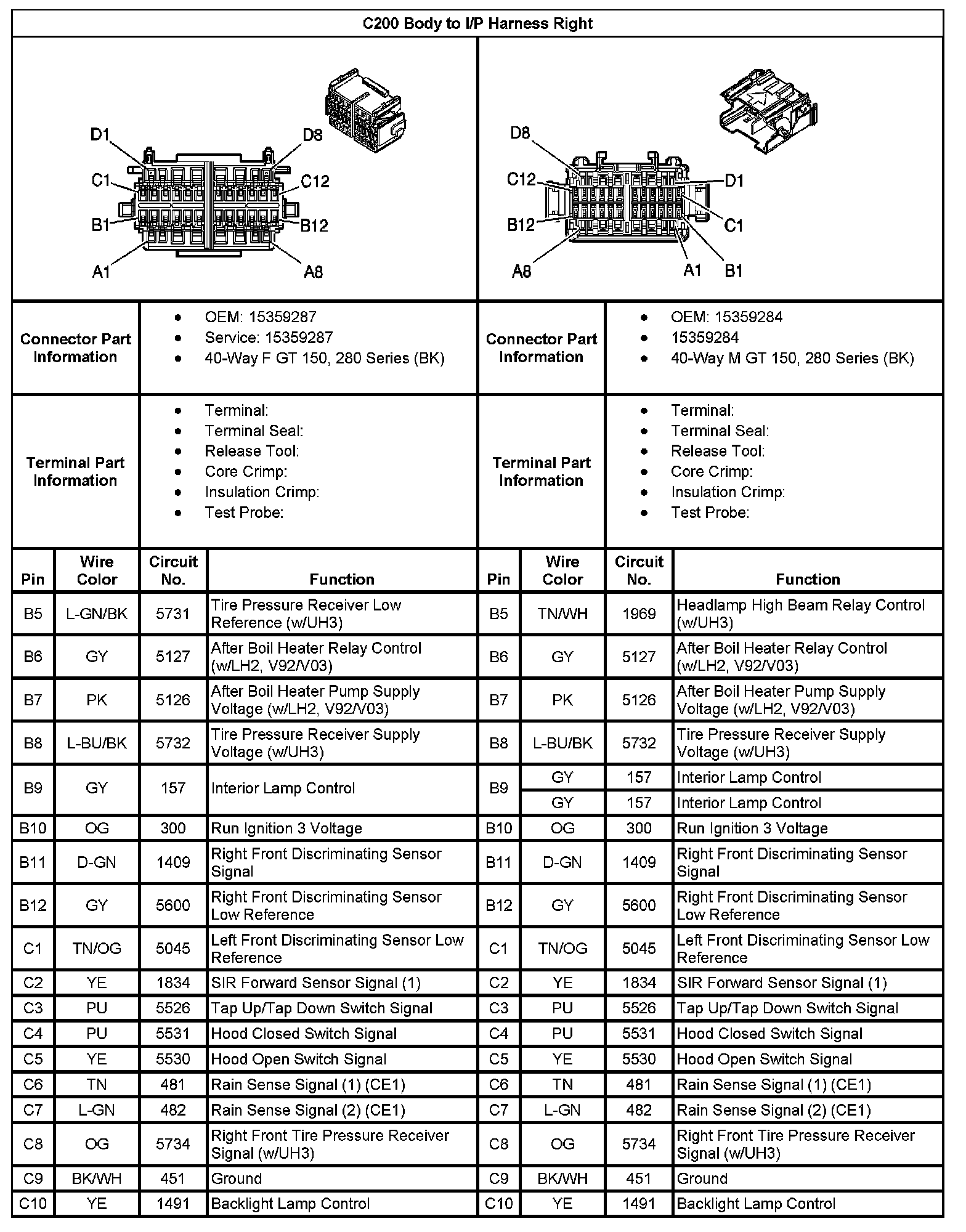

C200 Body To I/P Harness Right Part 2:

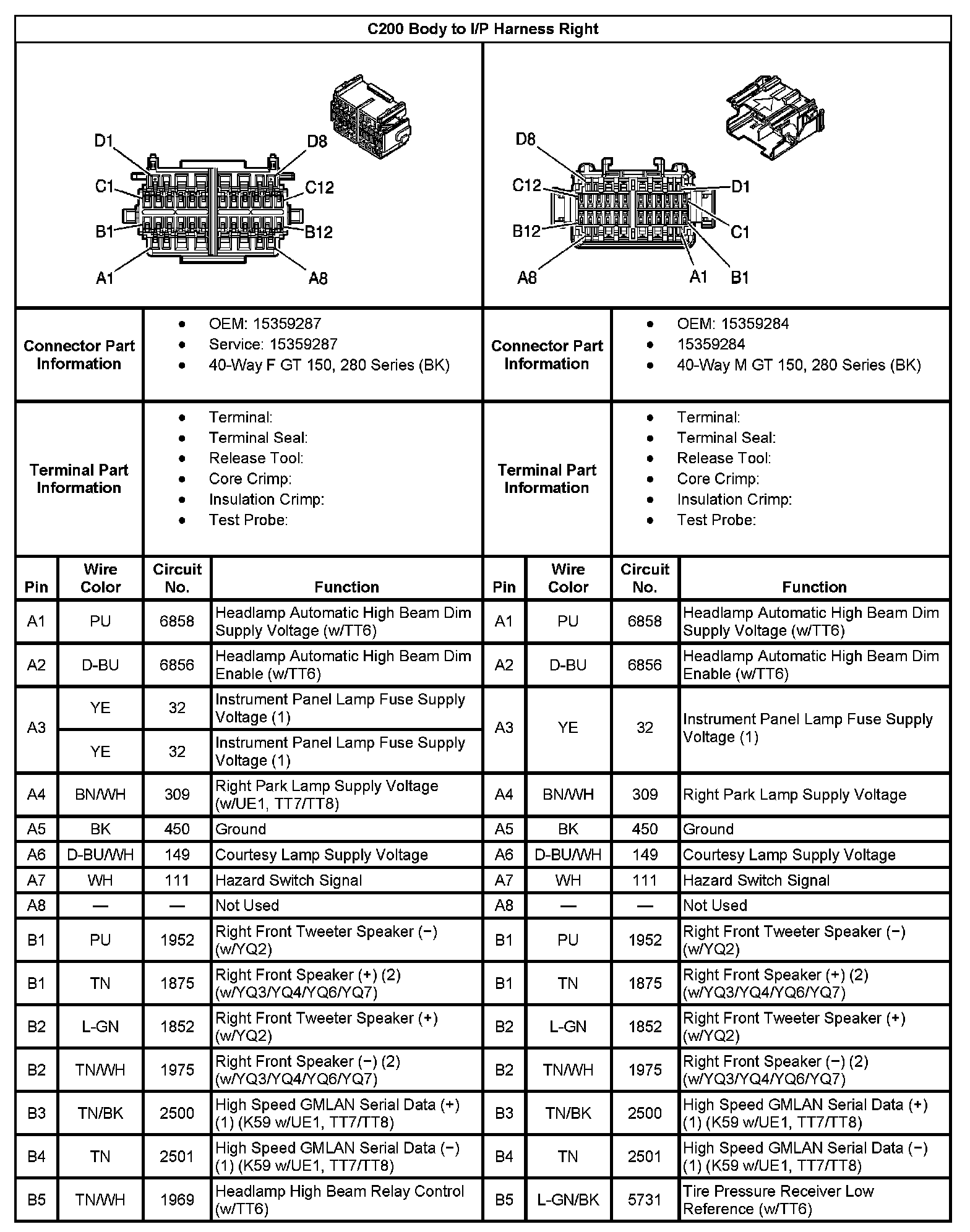

C200 Body To I/P Harness Right Part 3:
