C201
C201

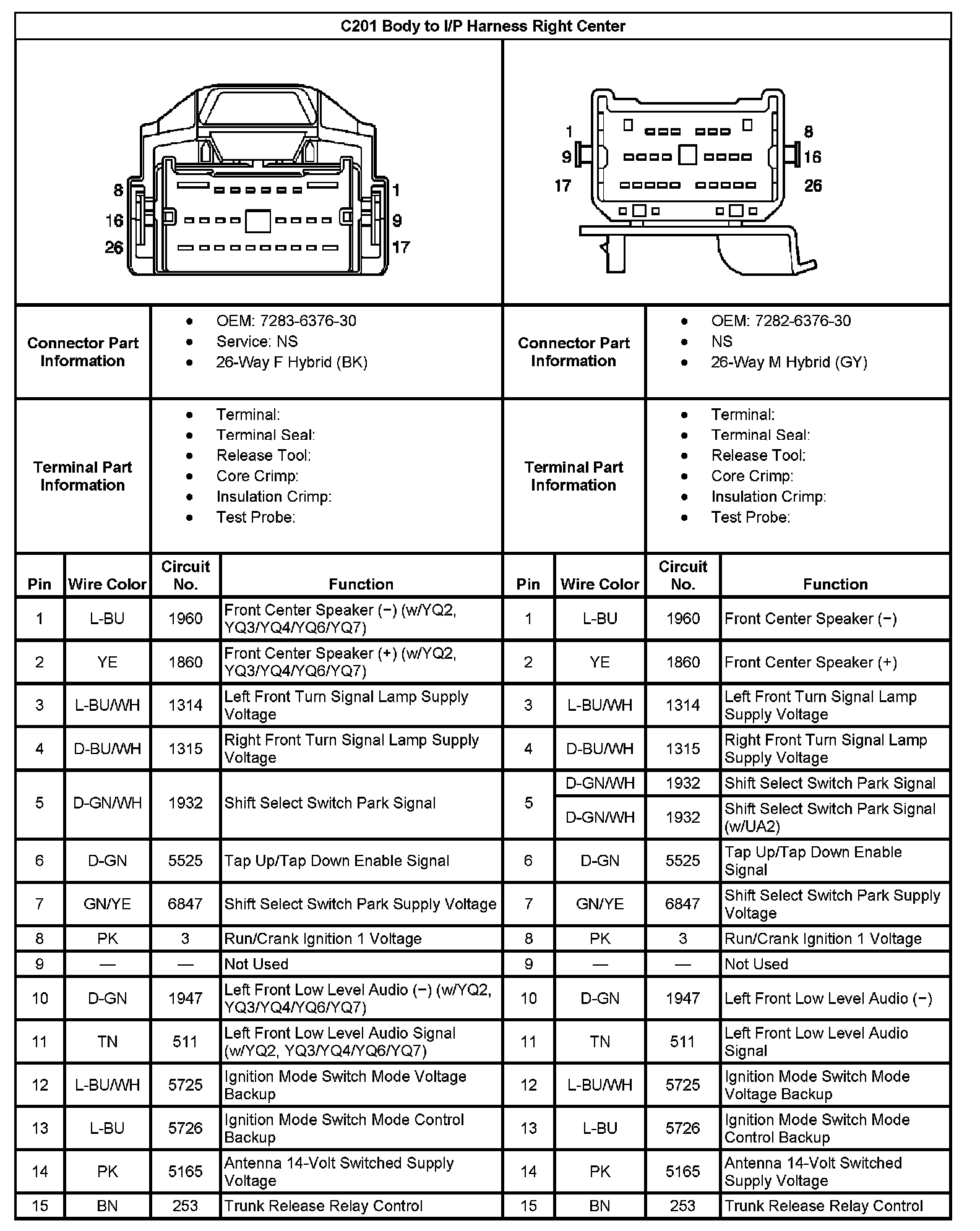

C201 Body To I/P Harness Right Center Part 1:
C201 Body To I/P Harness Right Center Part 2:
