C202
C202

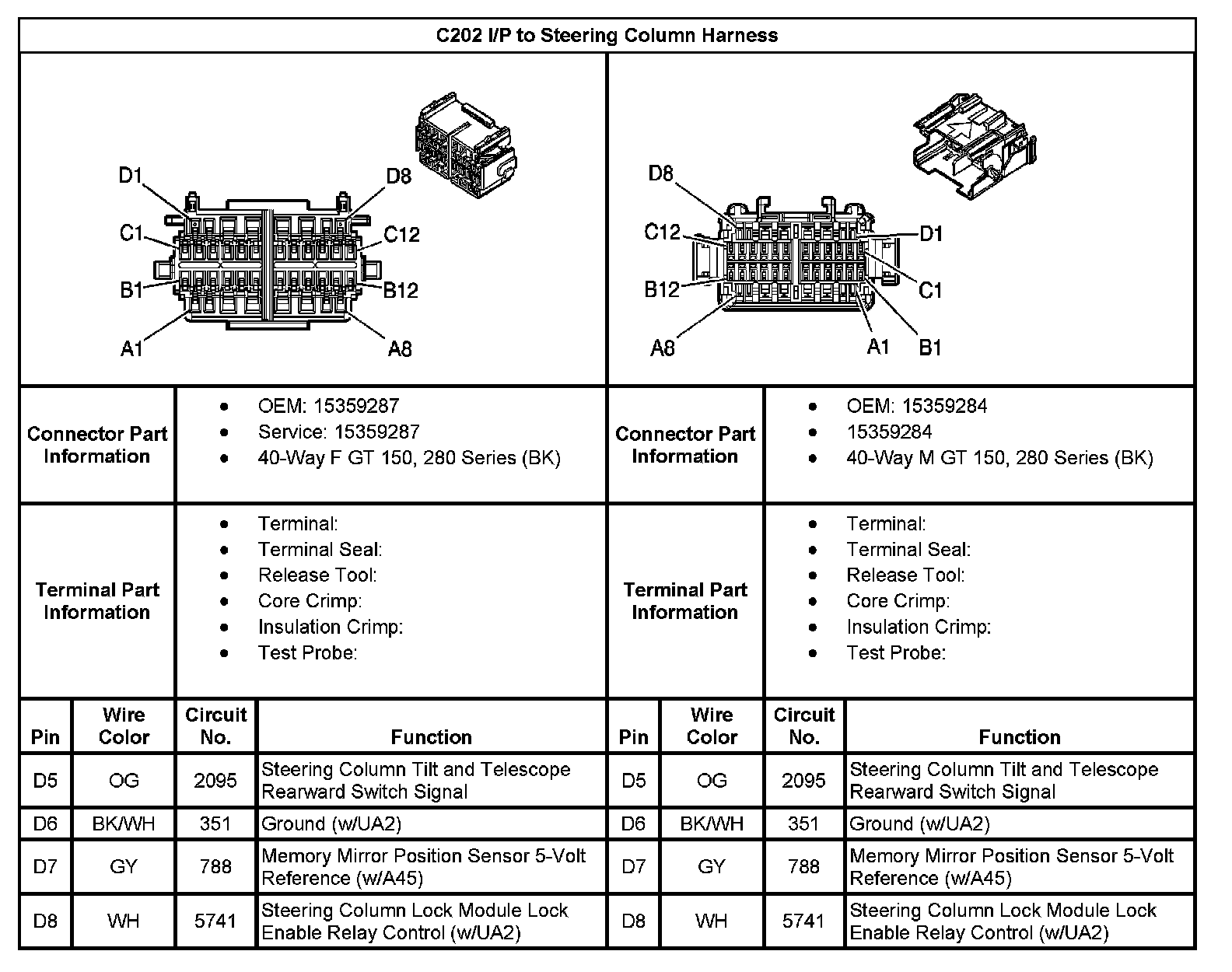

C202 I/P To Steering Column Harness Part 1:

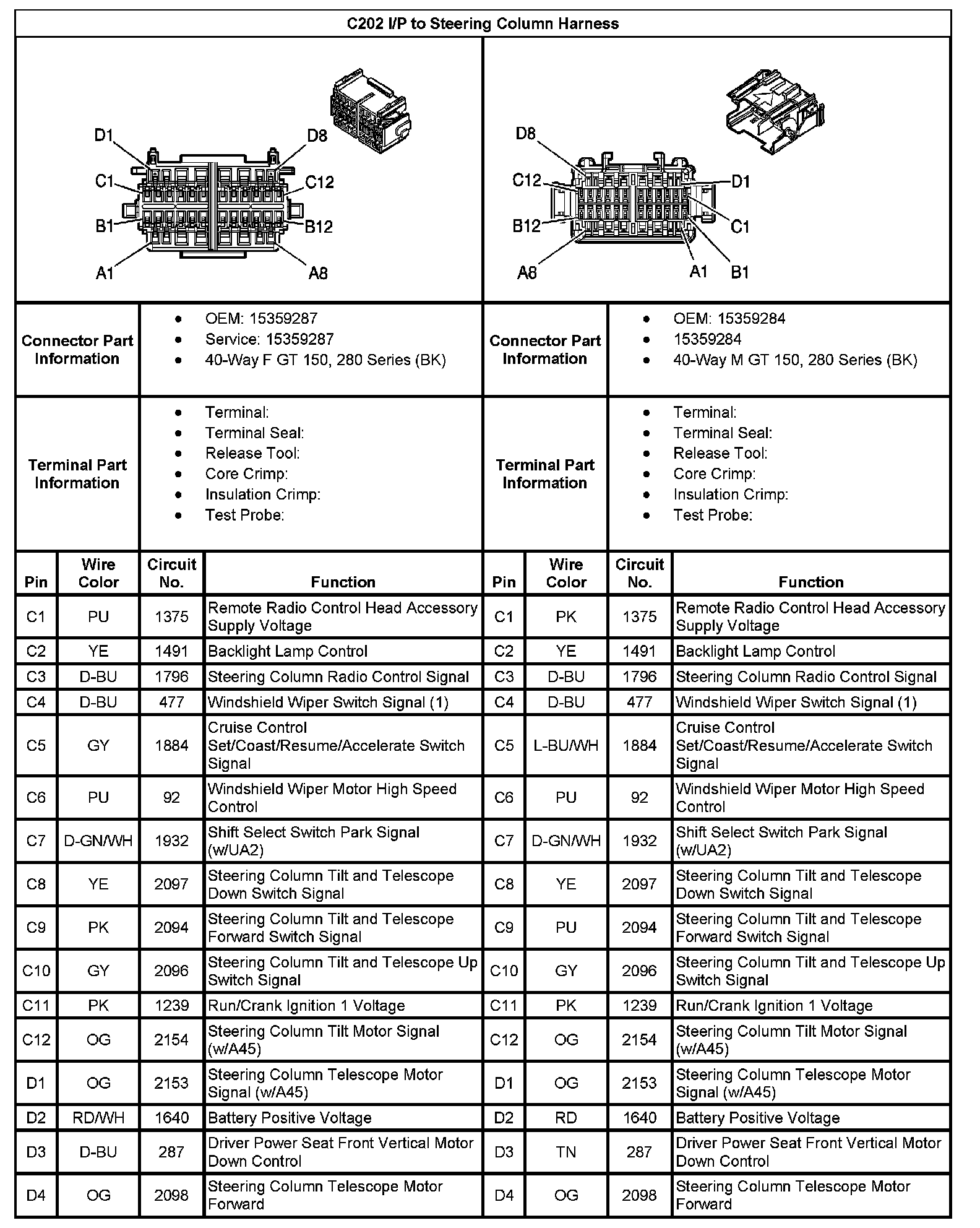

C202 I/P To Steering Column Harness Part 2:

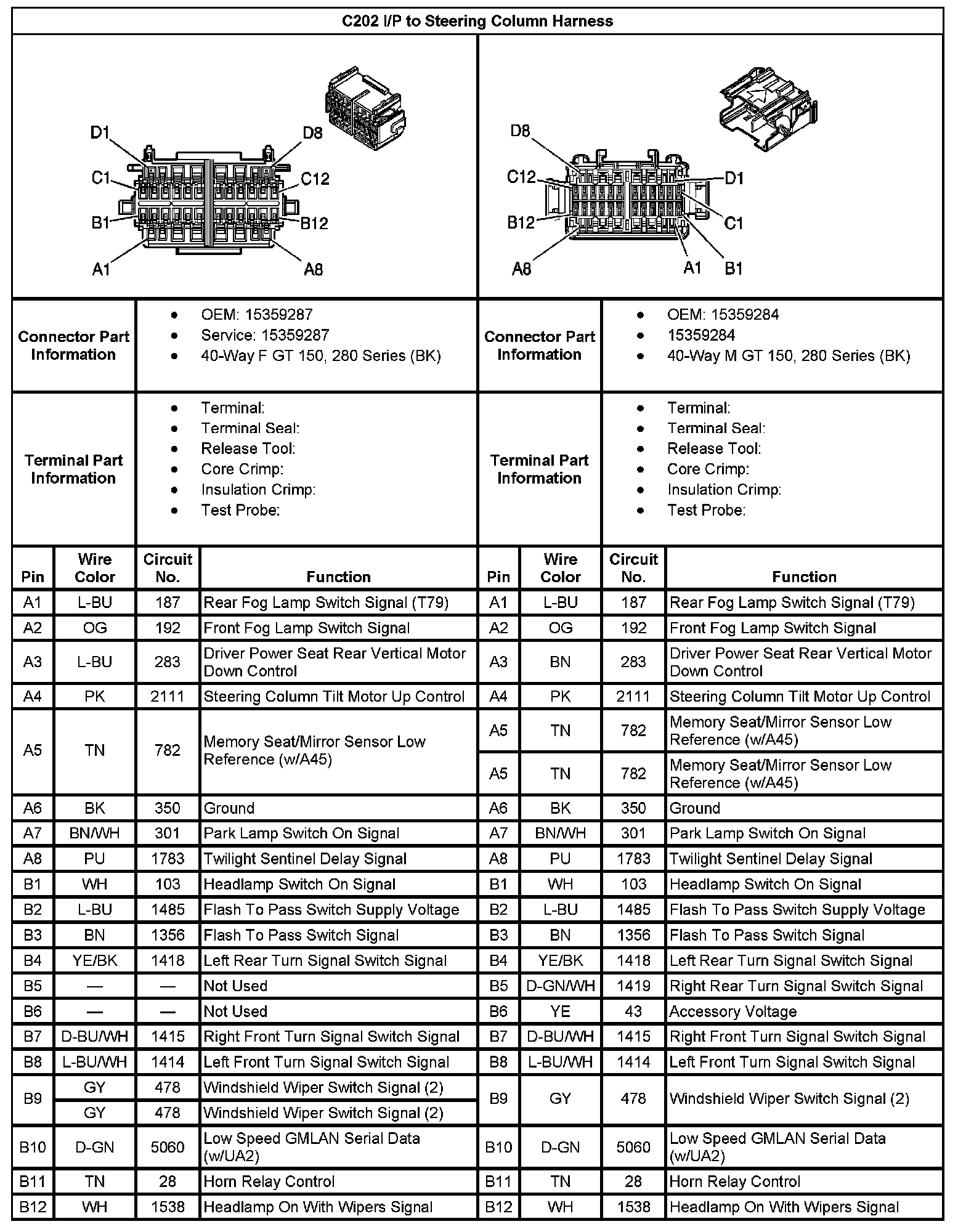

C202 I/P To Steering Column Harness Part 3:
