C205
C205

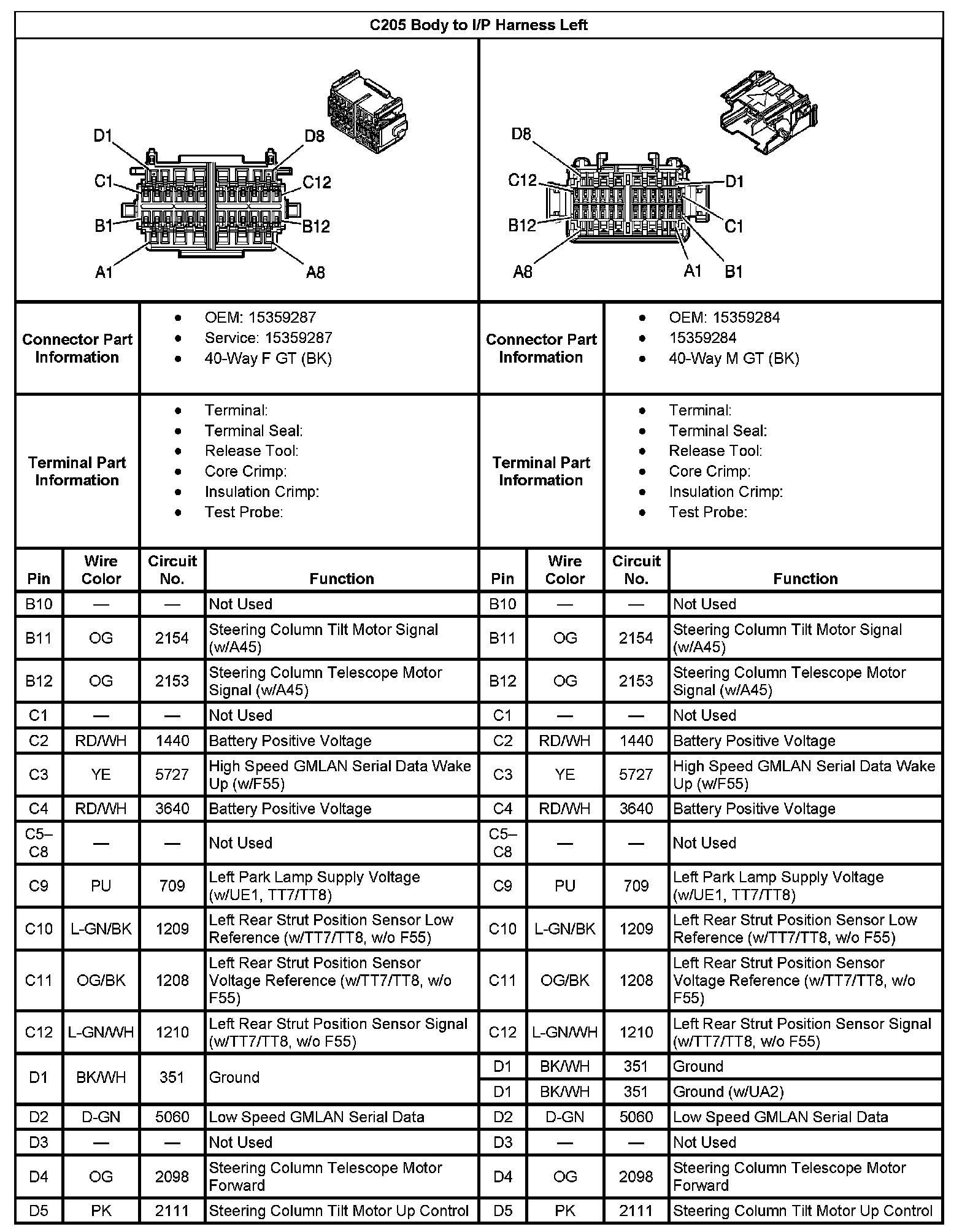

C205 Body To I/P Harness Left Part 1:

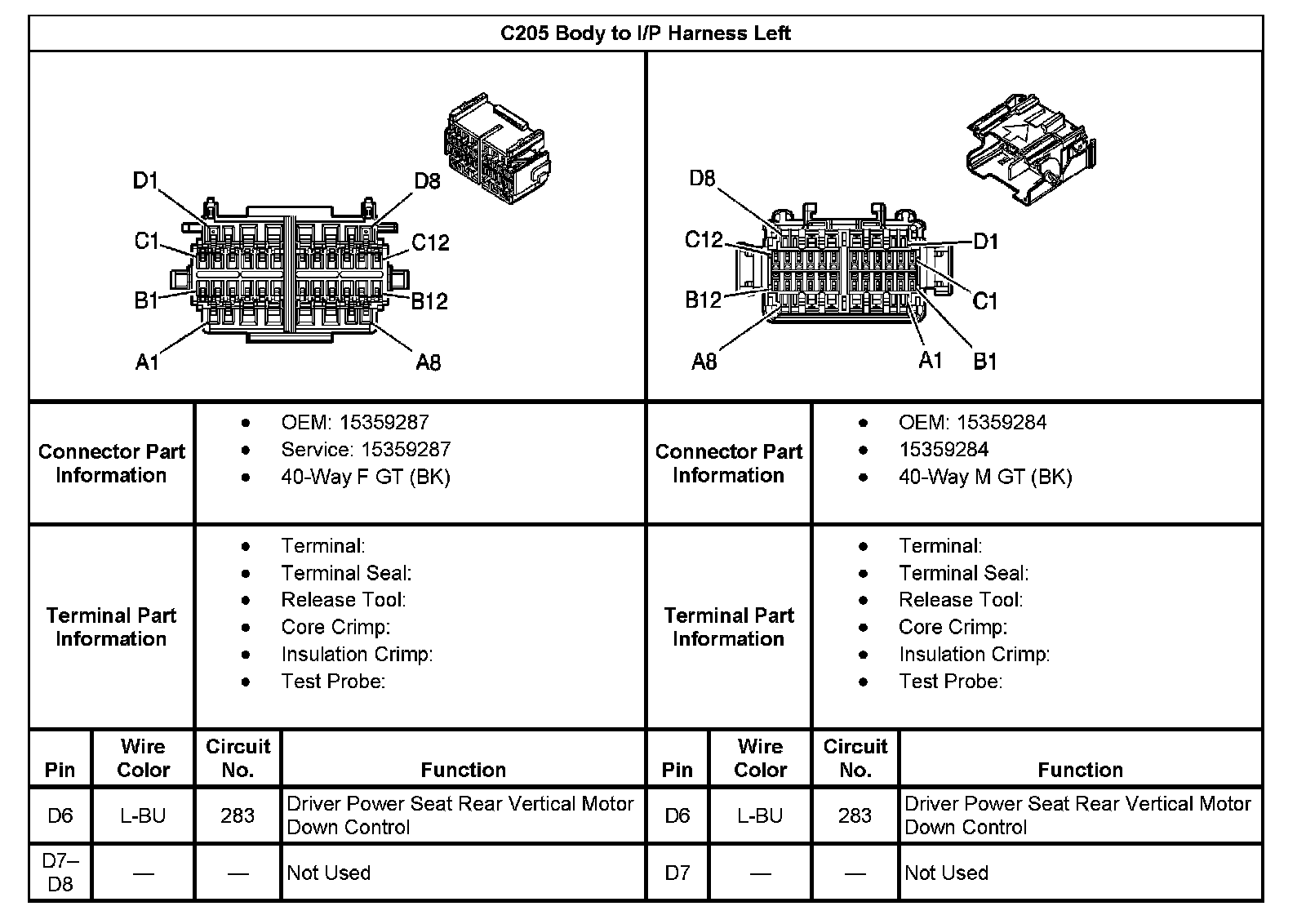

C205 Body To I/P Harness Left Part 2:

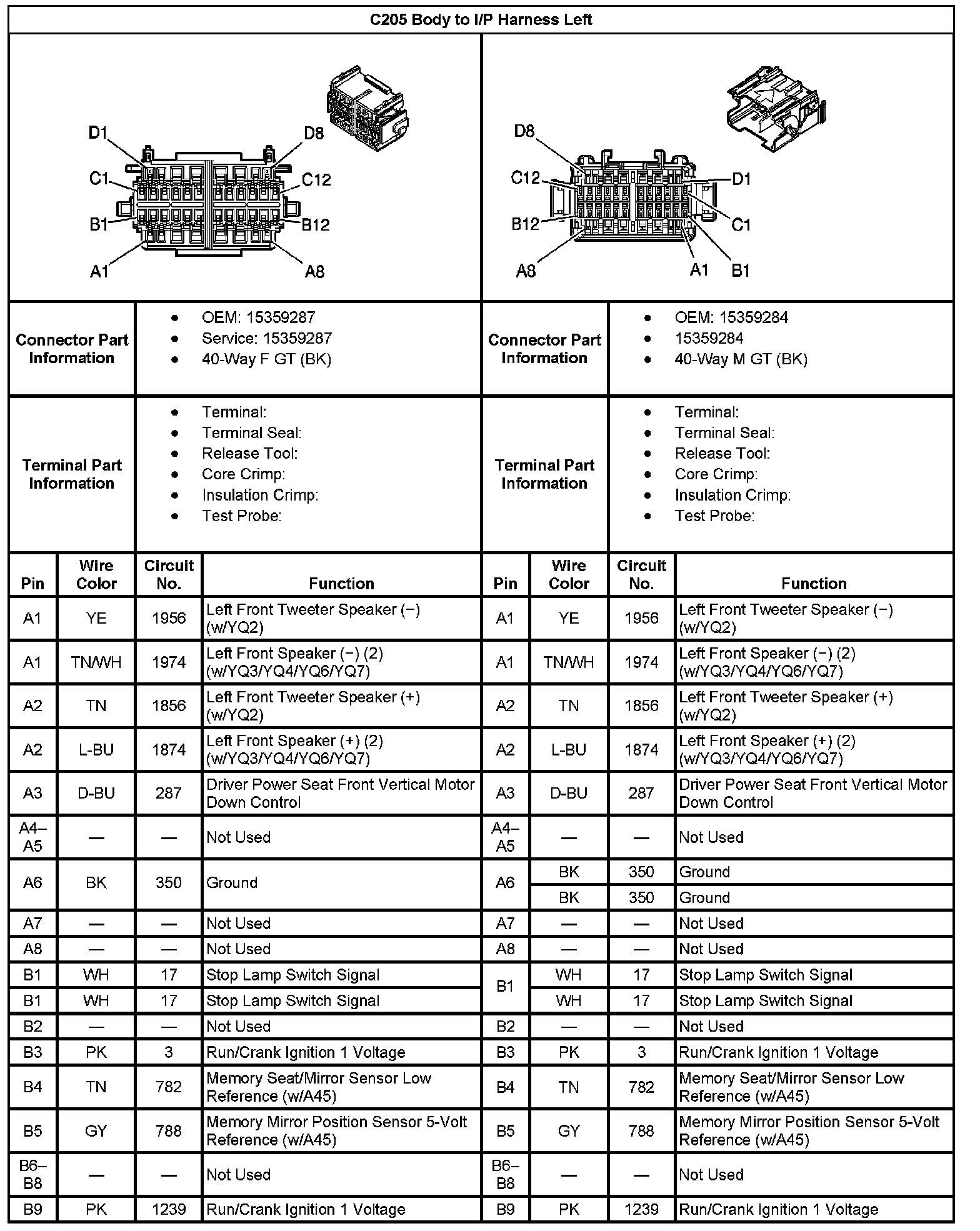

C205 Body To I/P Harness Left Part 3:
