Home >> Cadillac >> 2005 >> STS V6-3.6L VIN 7 >> Repair and Diagnosis >> Diagrams >> Connector Views >> C400 - C499 >> C402

C402

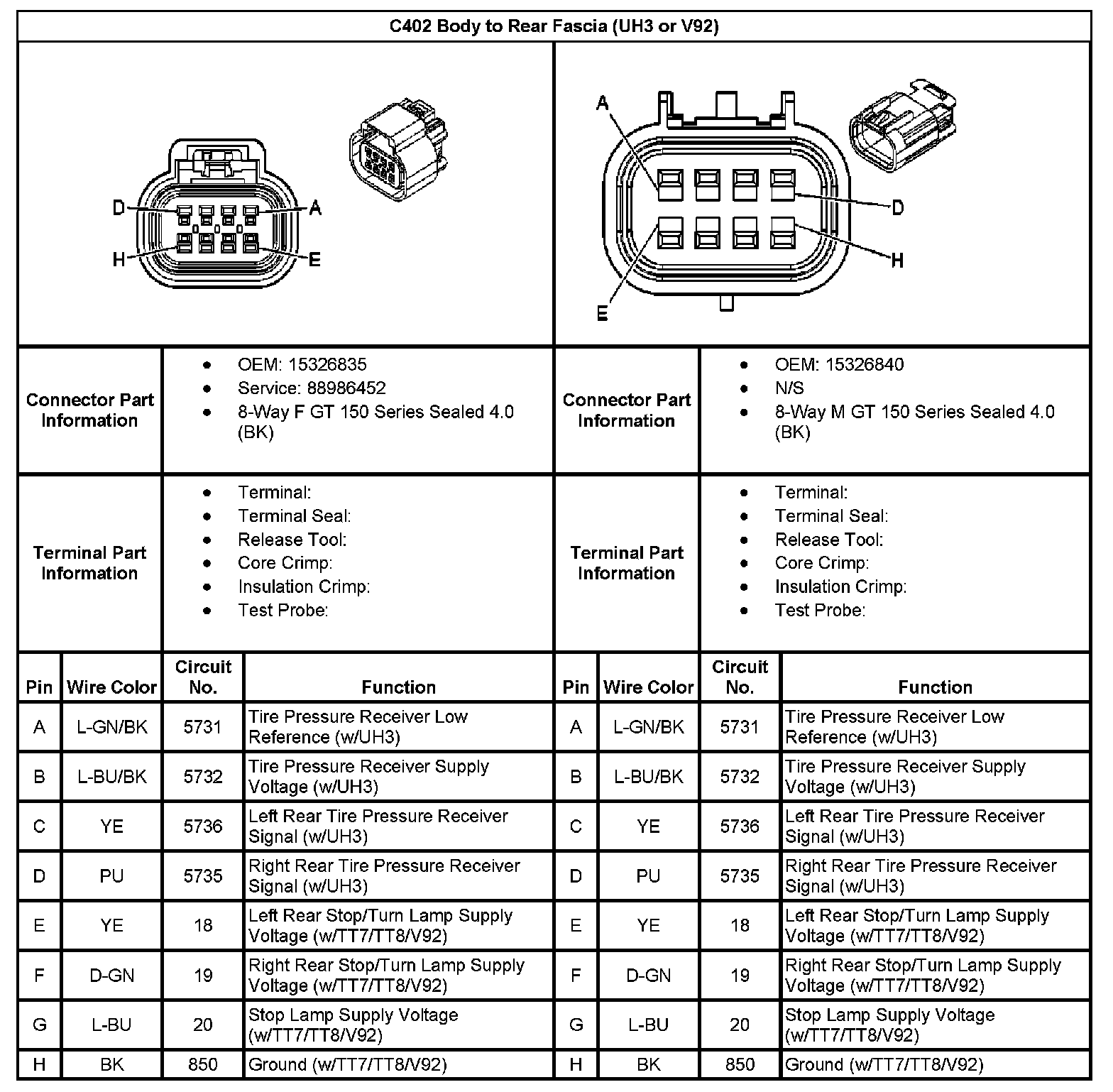

C402 Body To Rear Fascia (With RPO Code UH3 Or V92):
