Connector Views

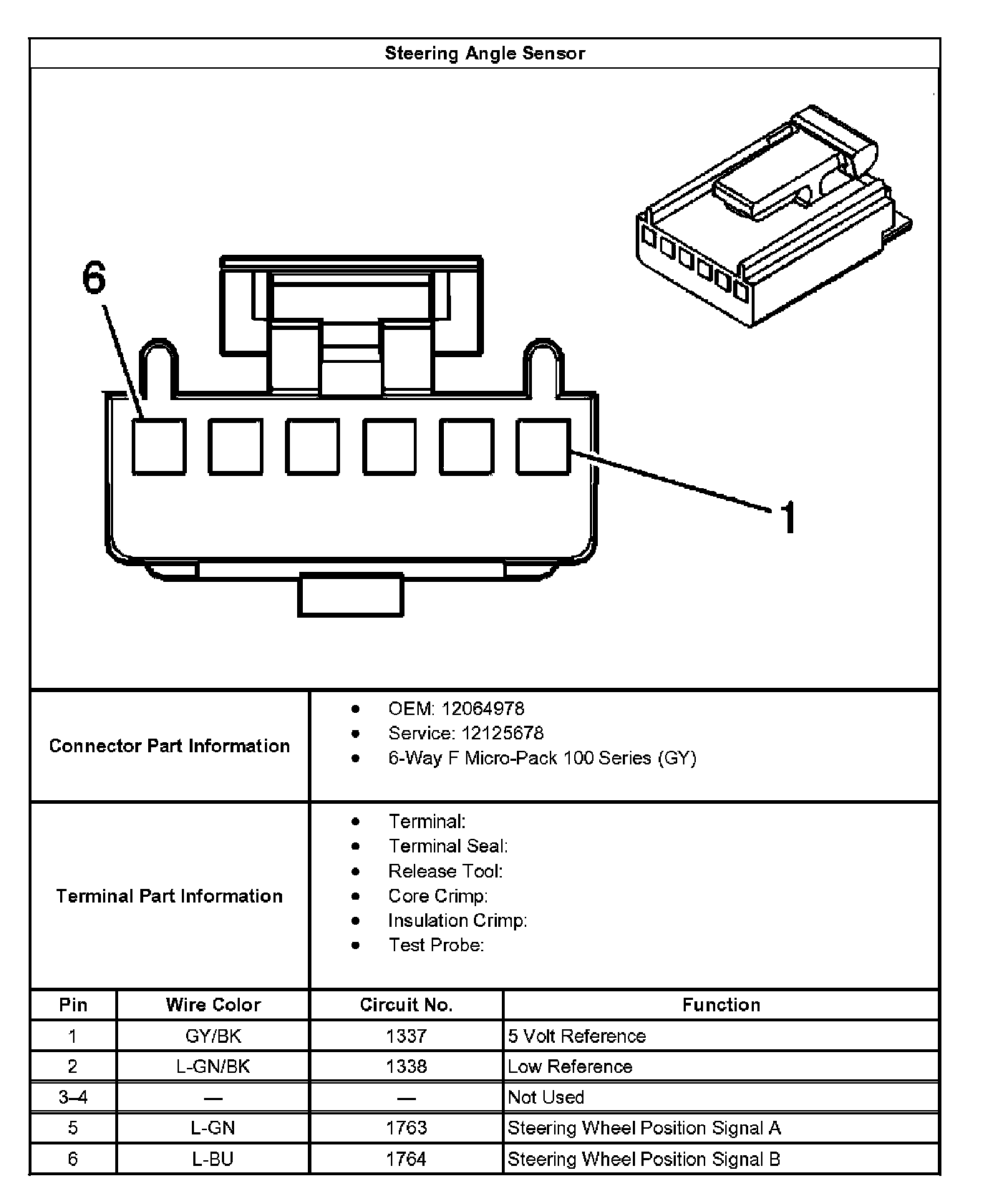

Steering Angle Sensor:

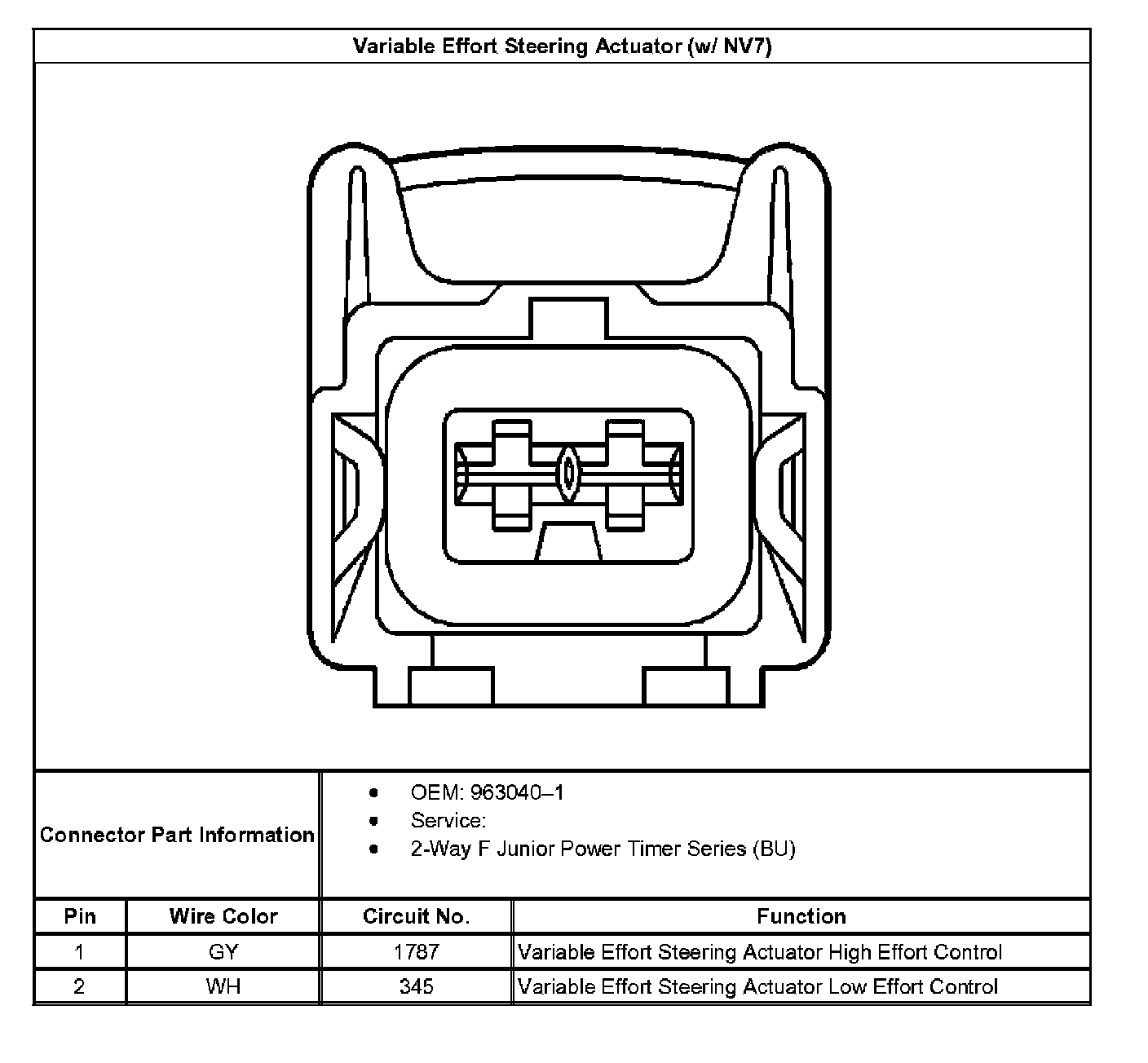

Variable Effort Steering Actuator (w/NV7):

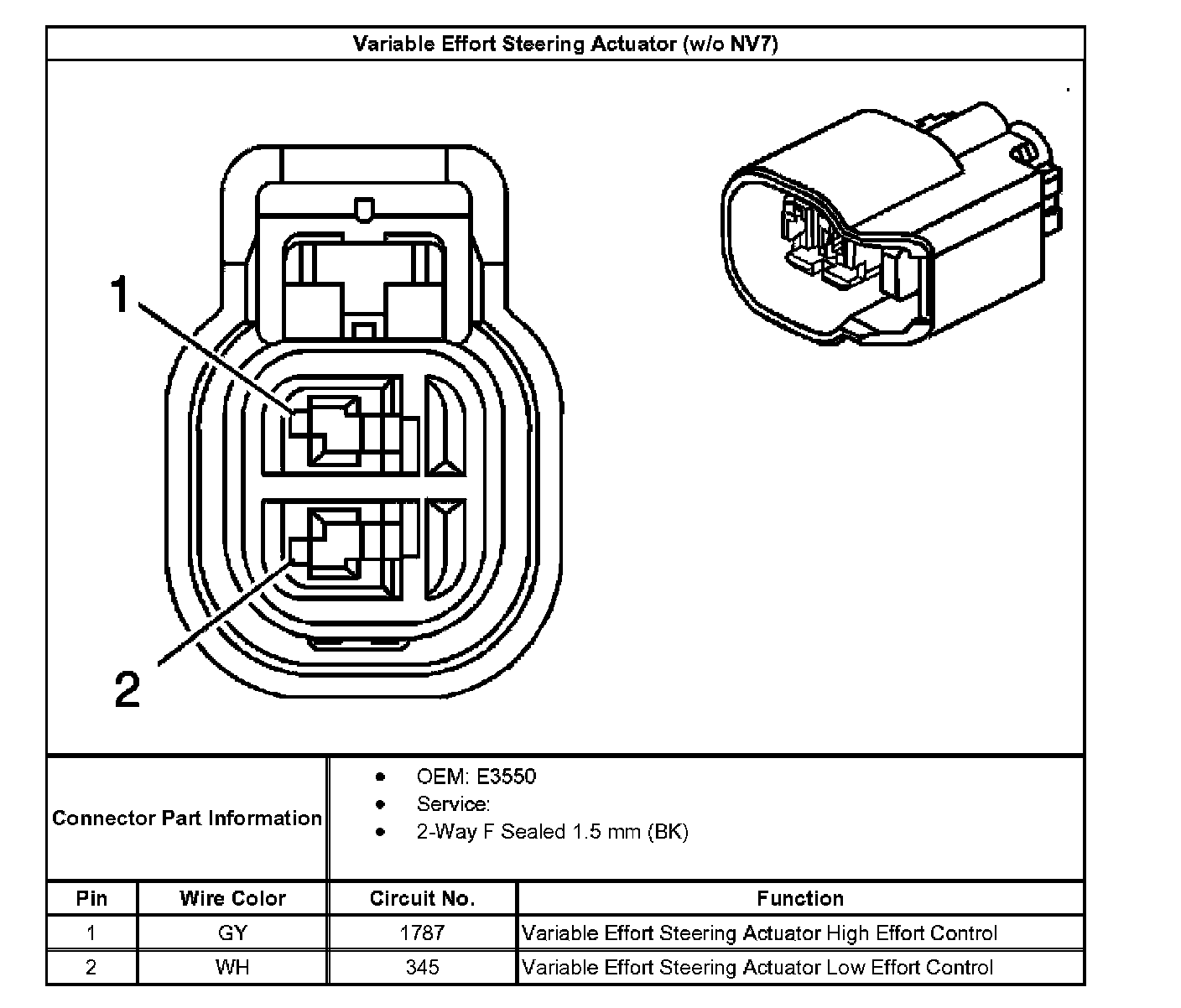

Variable Effort Steering Actuator (w/o NV7):
