Home >> Cadillac >> 2005 >> STS V8-4.6L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> C700 - C799 >> C700

C700

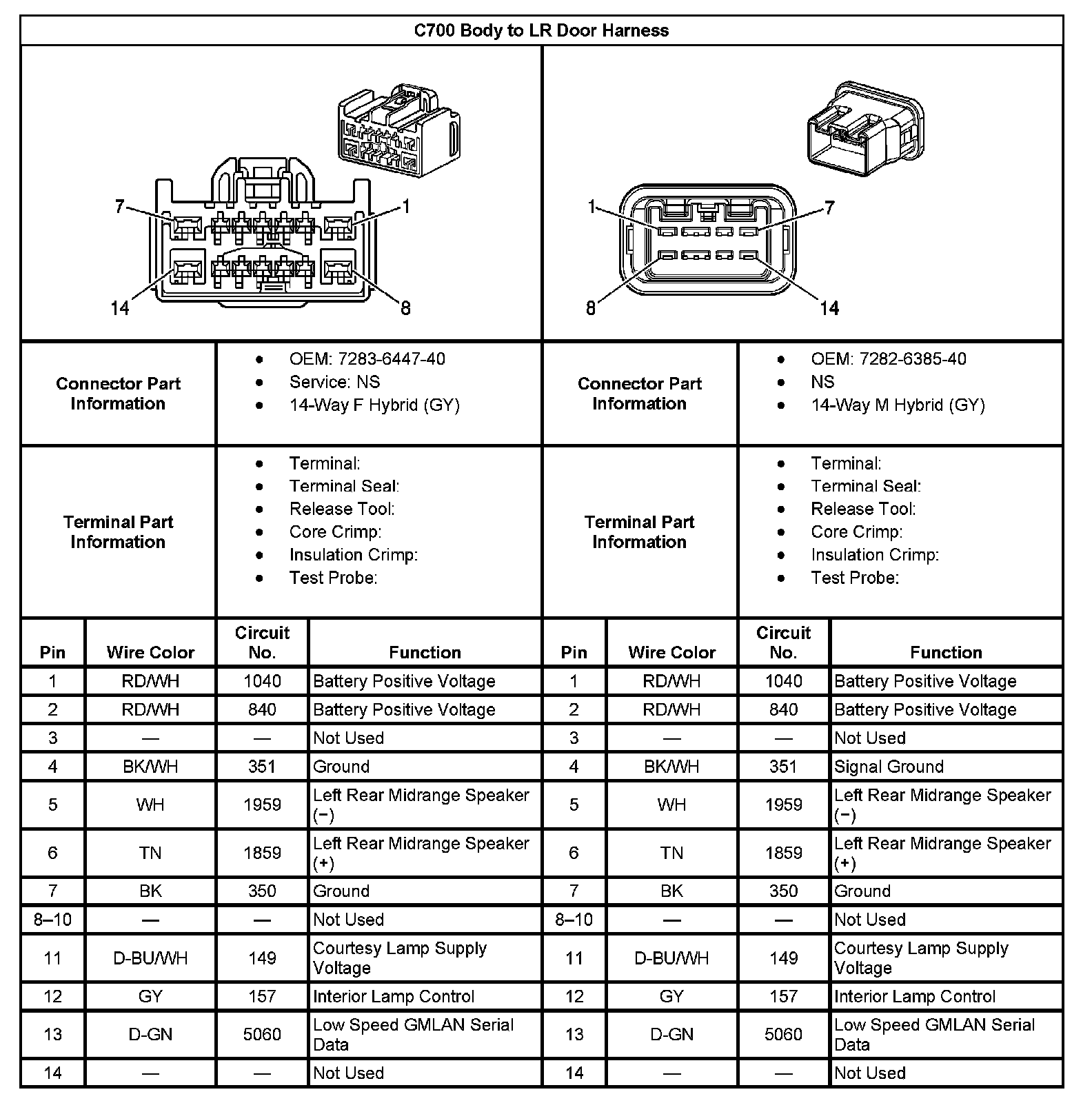

C700 Body To LR Door Harness:
