Home >> Cadillac >> 2005 >> STS V8-4.6L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp >> Headlamp Dimmer Relay

Headlamp Dimmer Relay

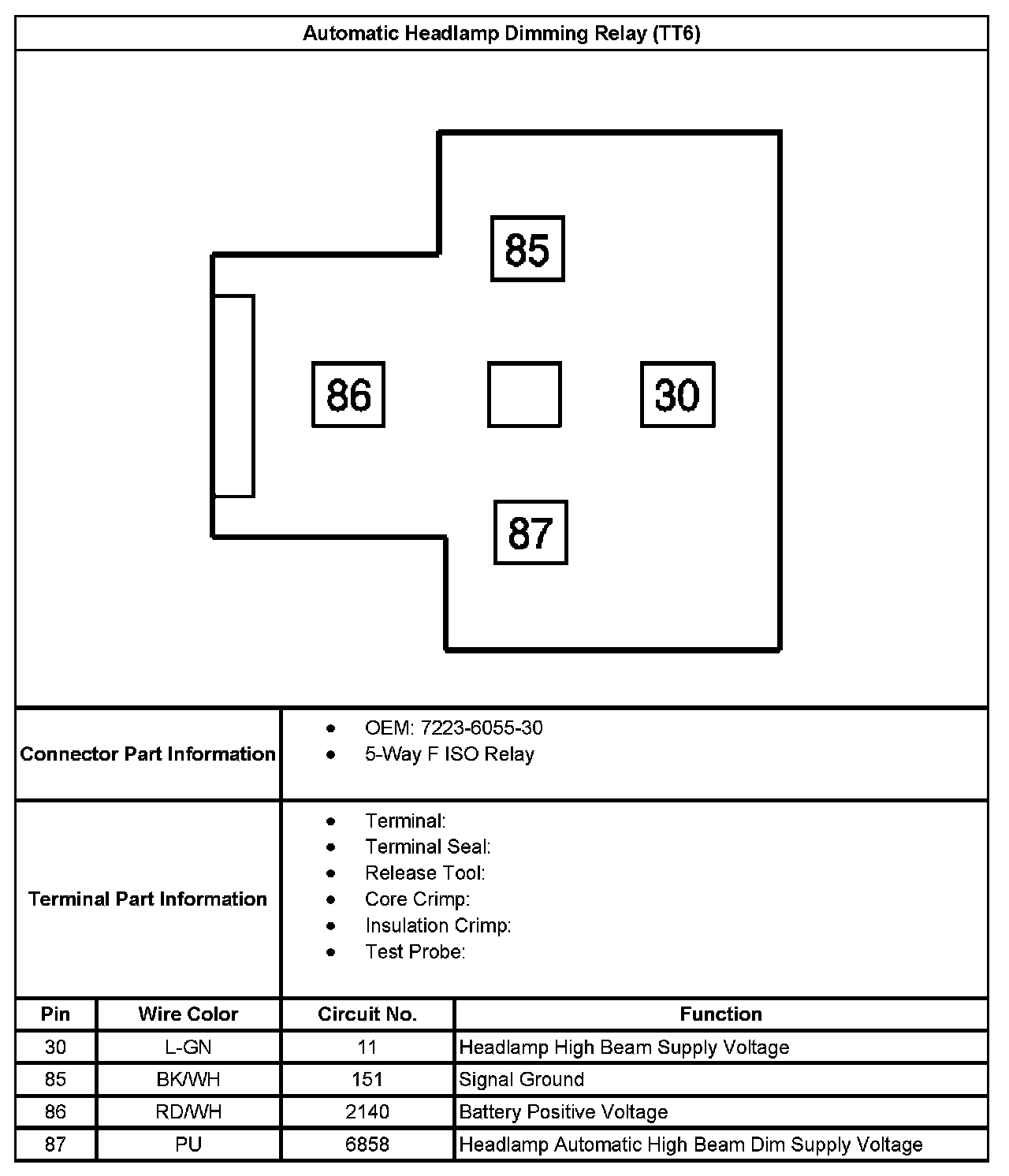

Automatic Headlamp Dimming Relay (With RPO Code TT6):
