Multiple Junction Connector
>>
C100 - C199
>>
C108
C108

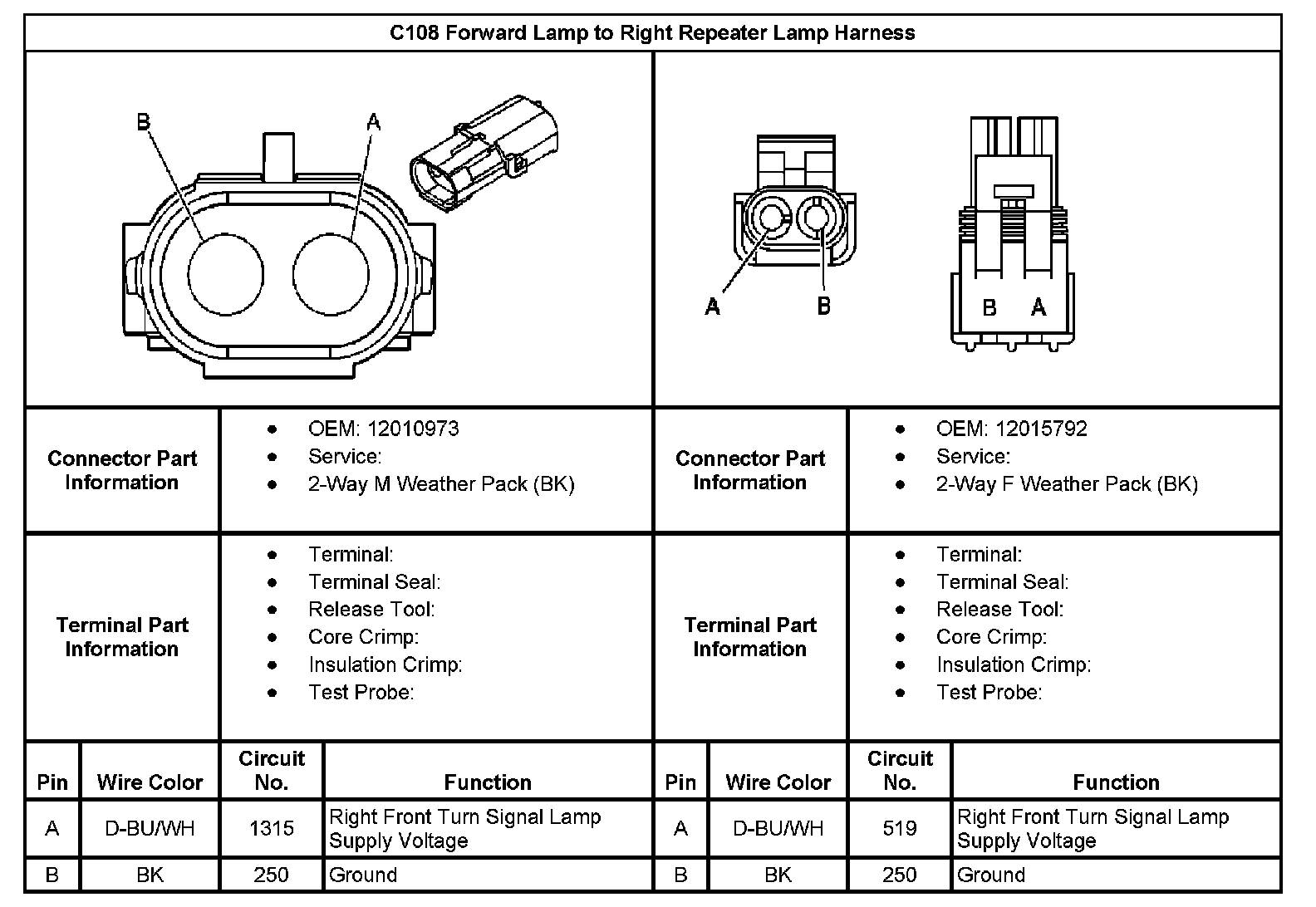

C108 Forward Lamp To Right Repeater Lamp Harness:
