Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2005
>>
STS V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C700 - C799
>>
C701
C701

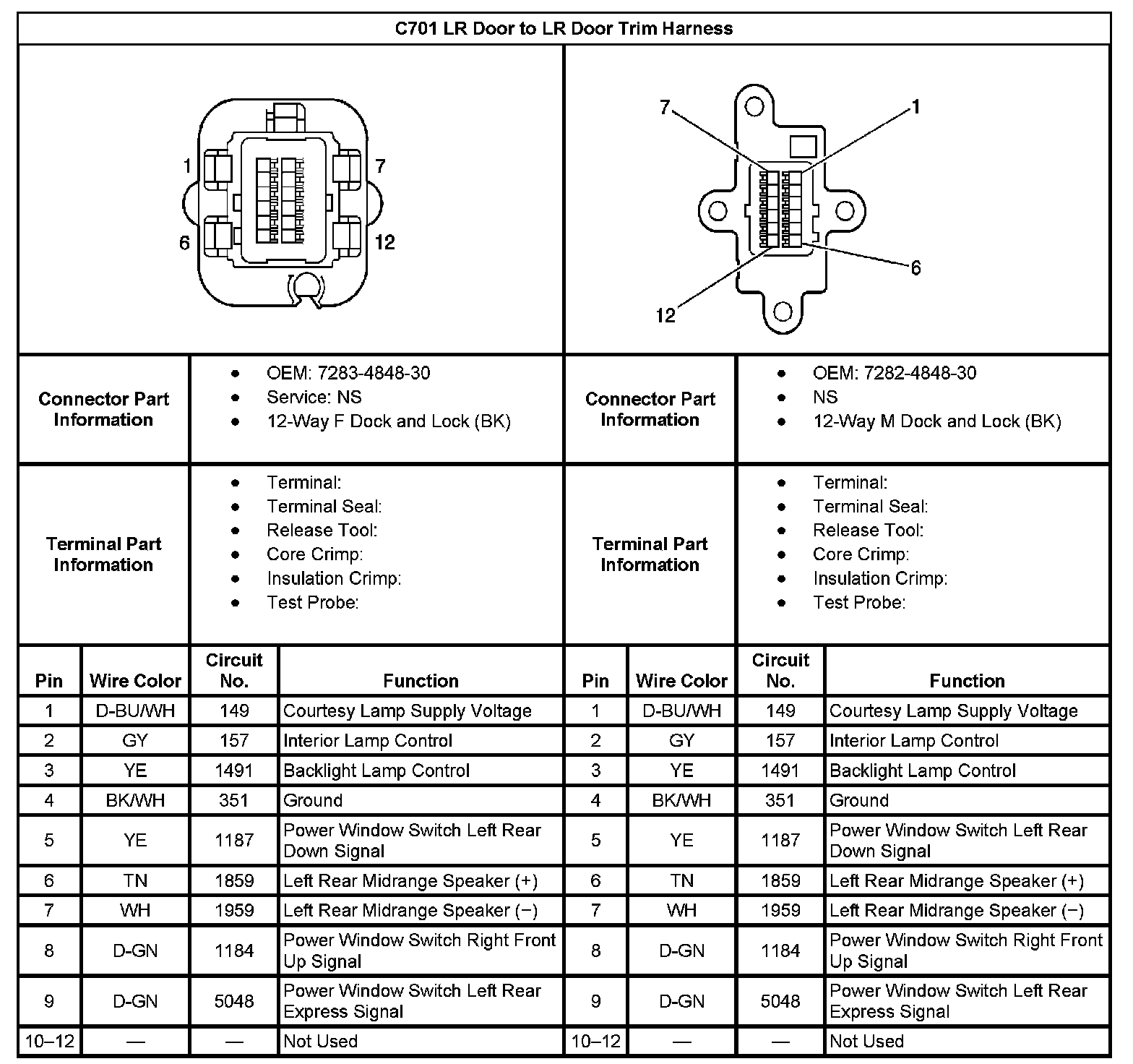

C701 LR Door To LR Door Trim Harness:
