Lumbar Motor Assembly

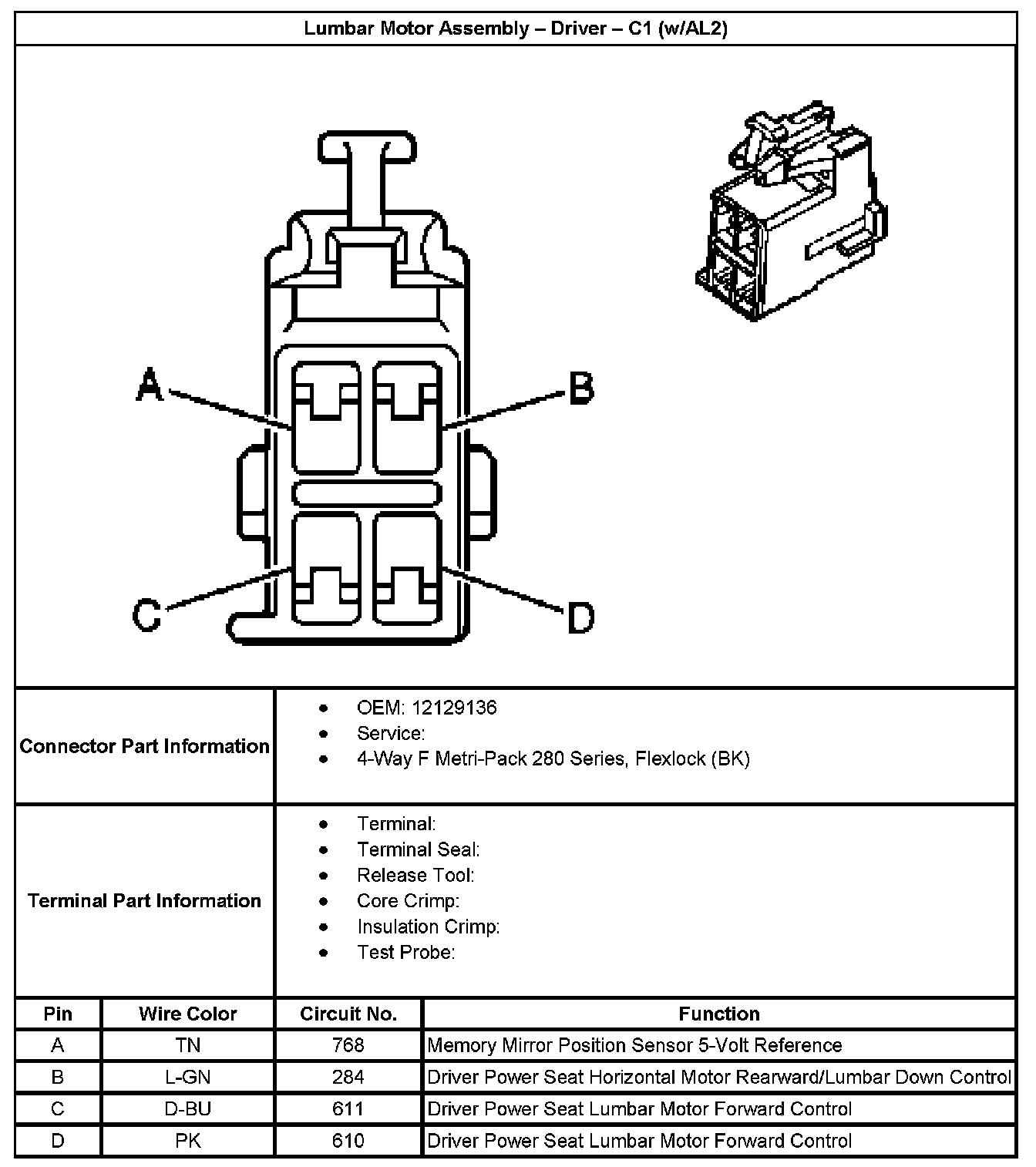

Lumbar Motor Assembly - Driver - C1 (With RPO Code AL2):

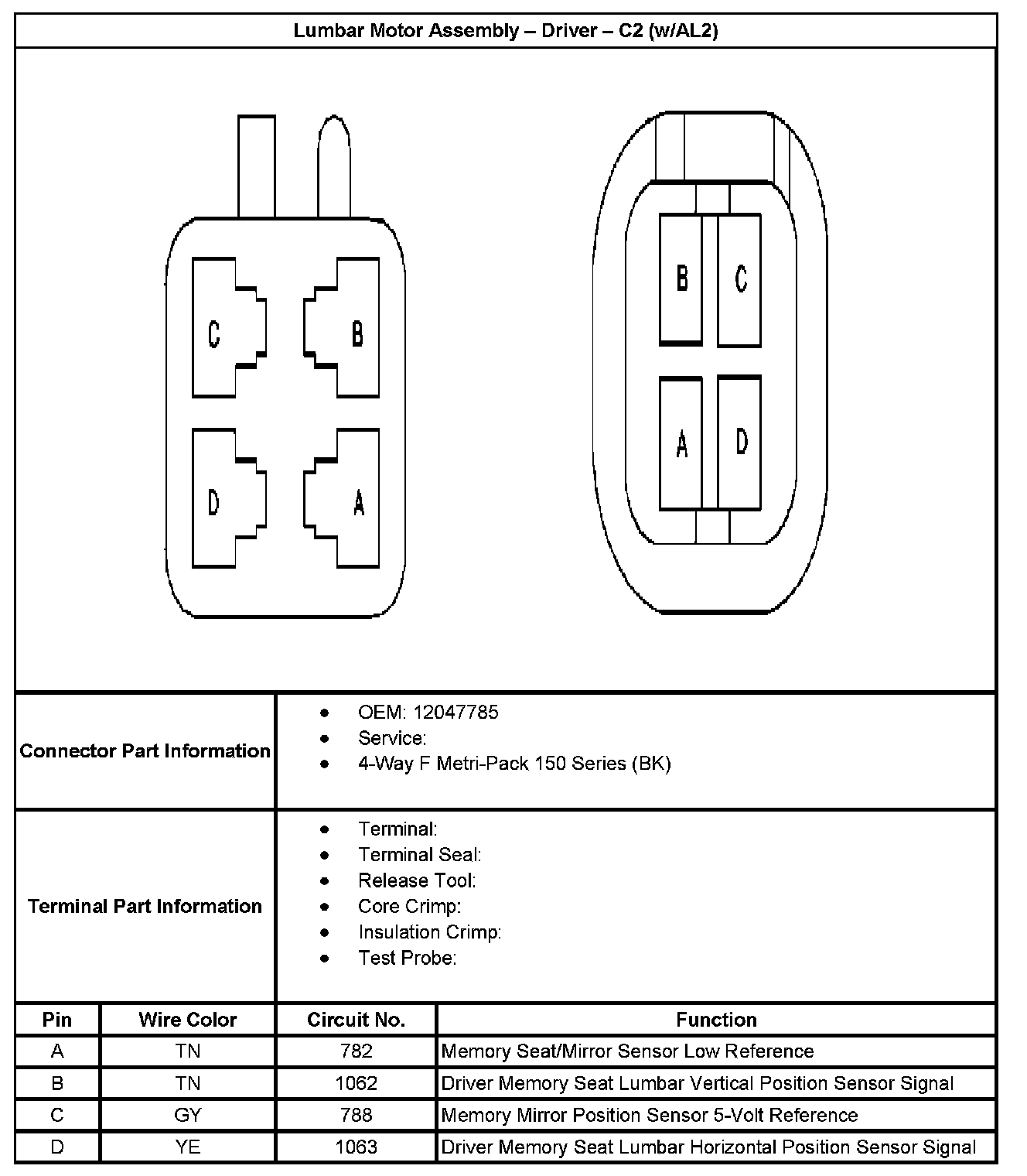

Lumbar Motor Assembly - Driver - C2 (With RPO Code AL2):

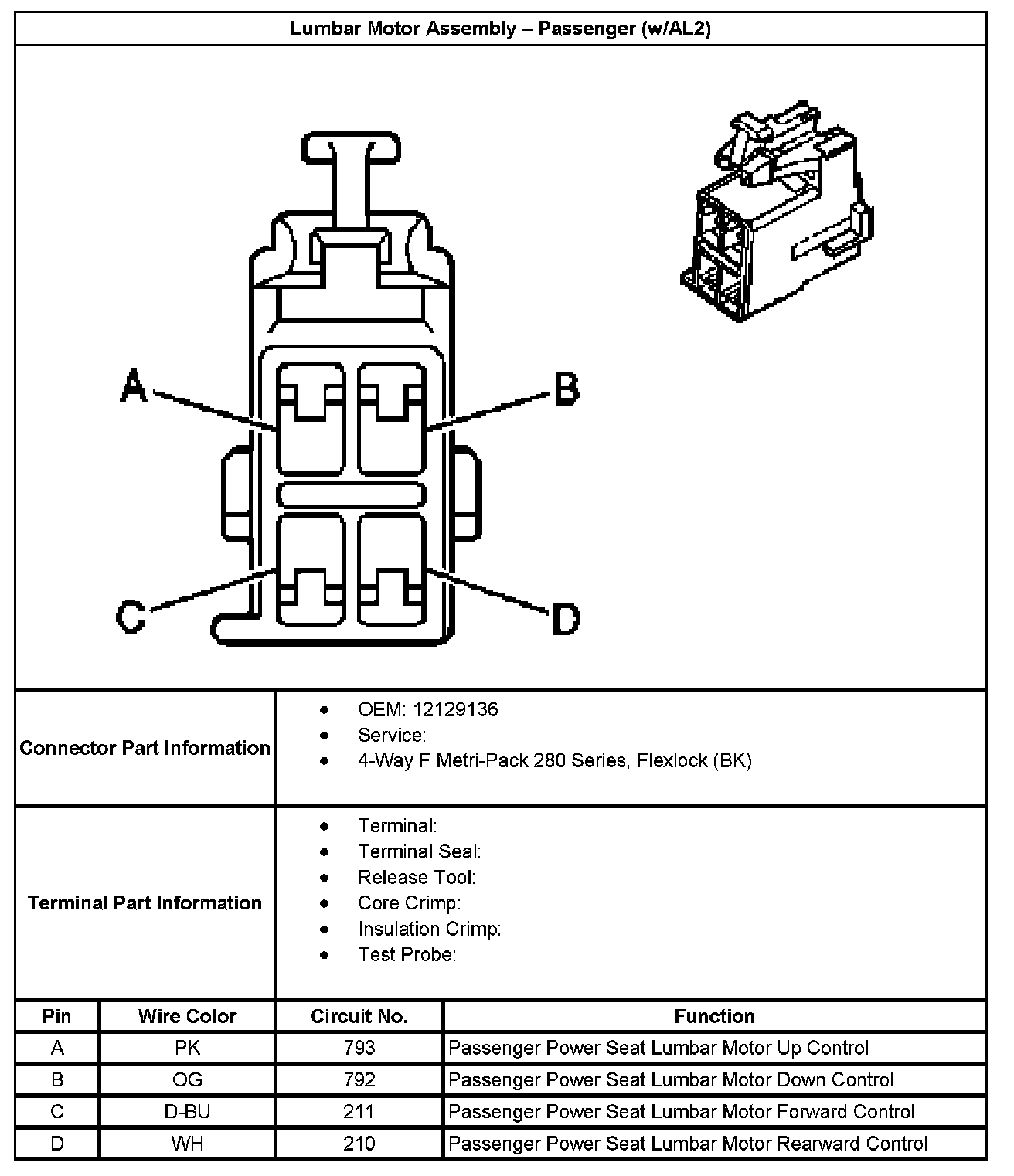

Lumbar Motor Assembly - Passenger (With RPO Code AL2):
