Cadillac
>>
2005
>>
STS V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Diagrams
>>
Connector Views
Connector Views

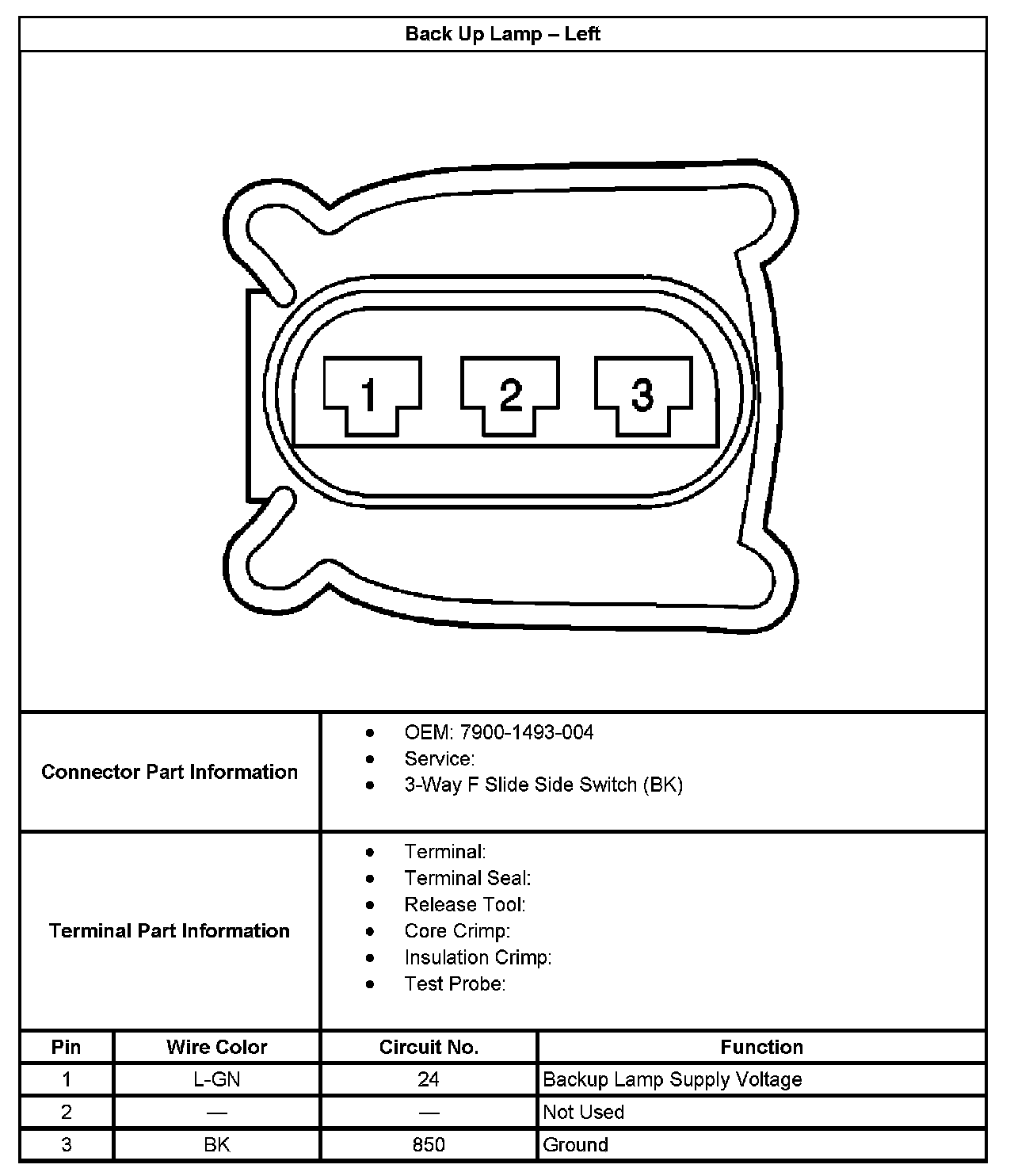

Back Up Lamp - Left:

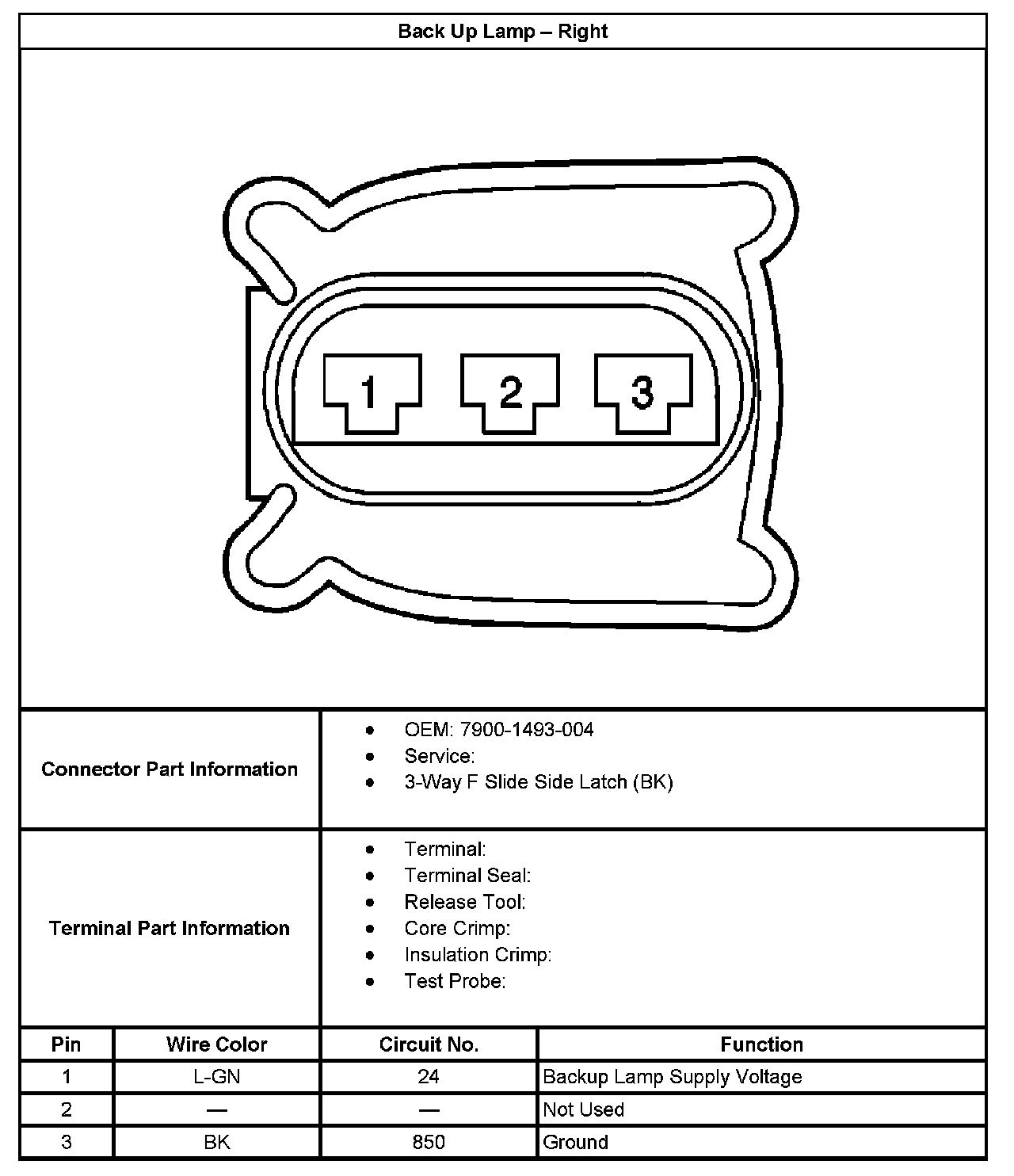

Back Up Lamp - Right:
