Connector Views

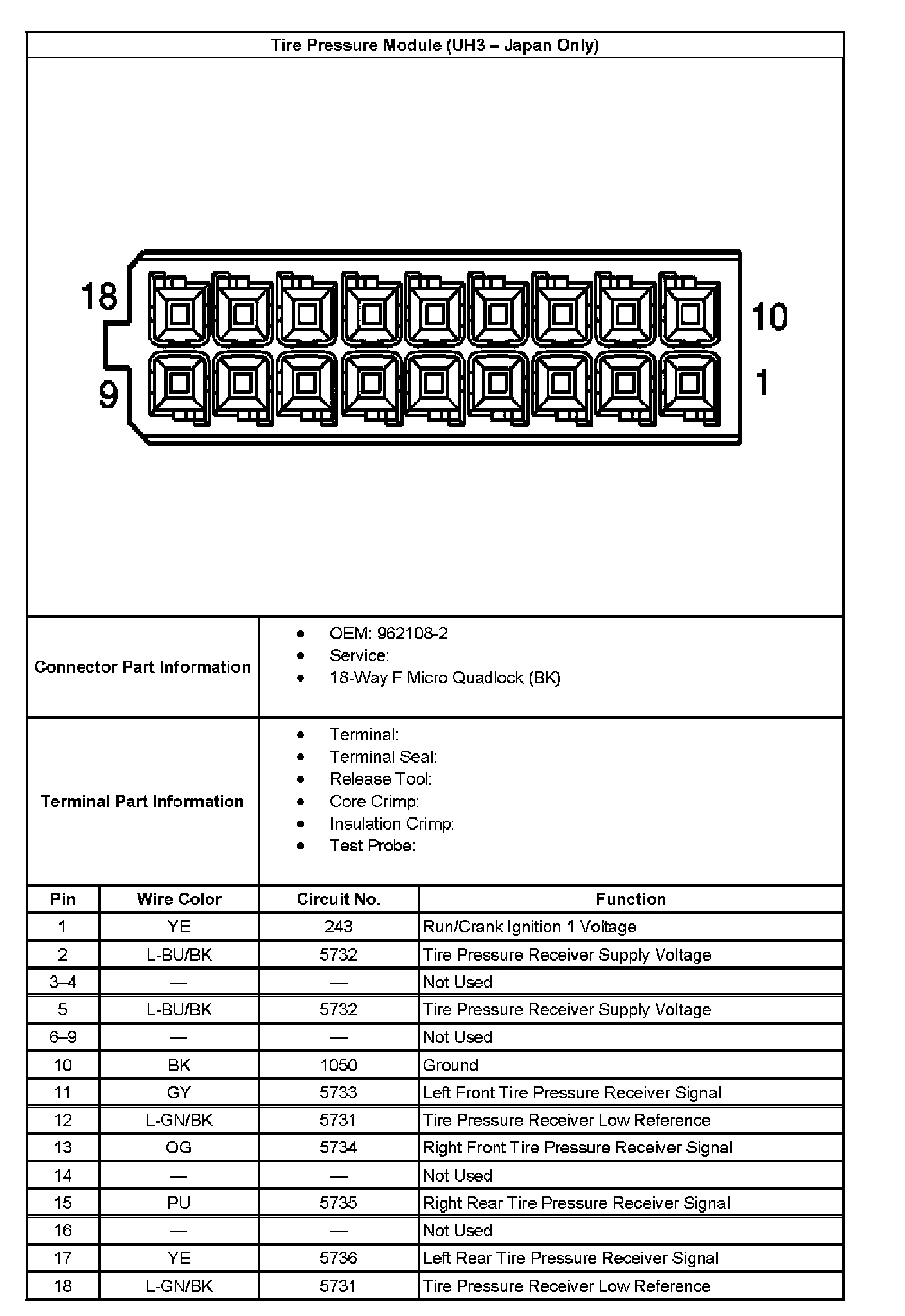

Tire Pressure Module (UH3 - Japan Only):

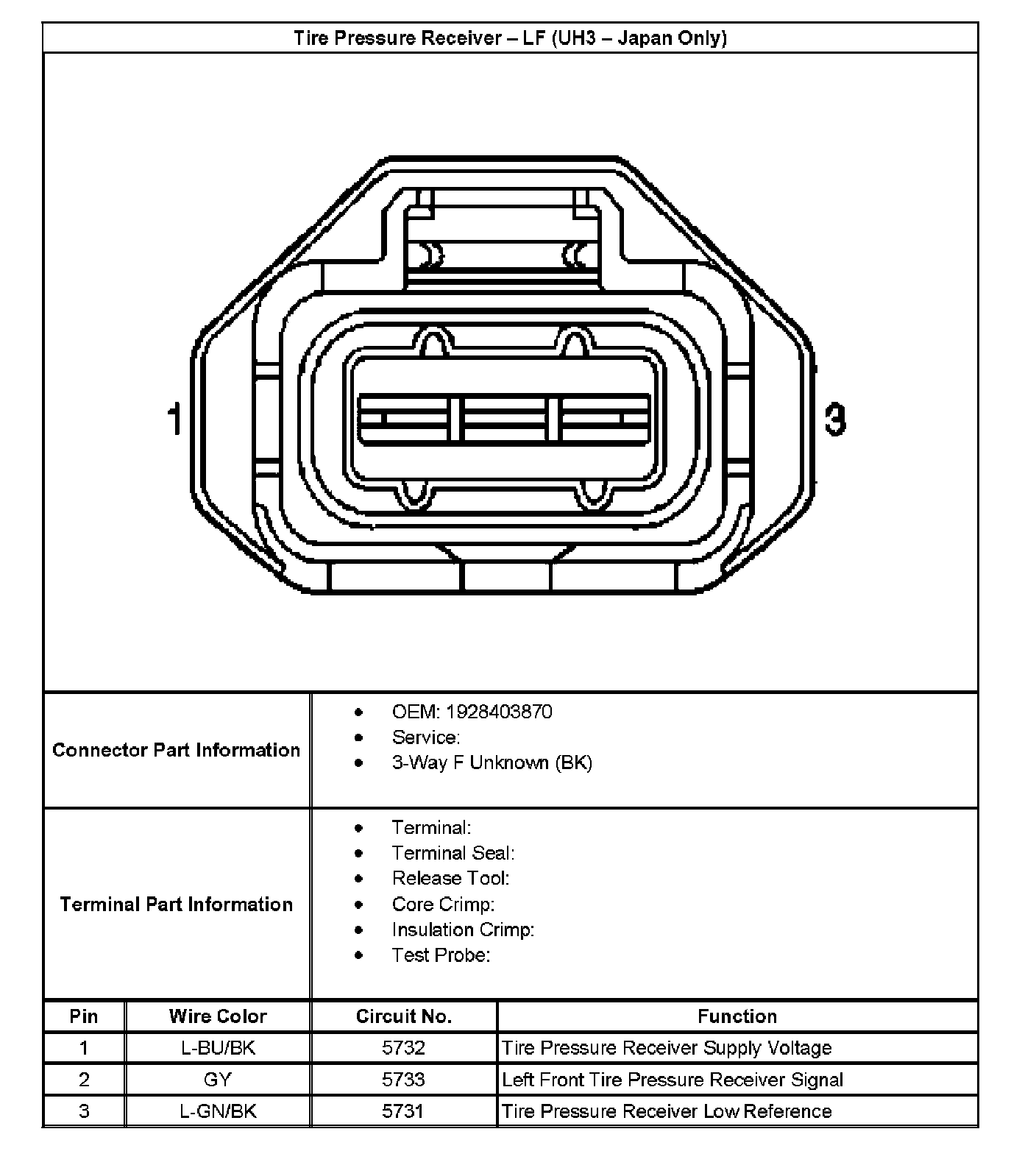

Tire Pressure Receiver - LF (UH3 - Japan Only):

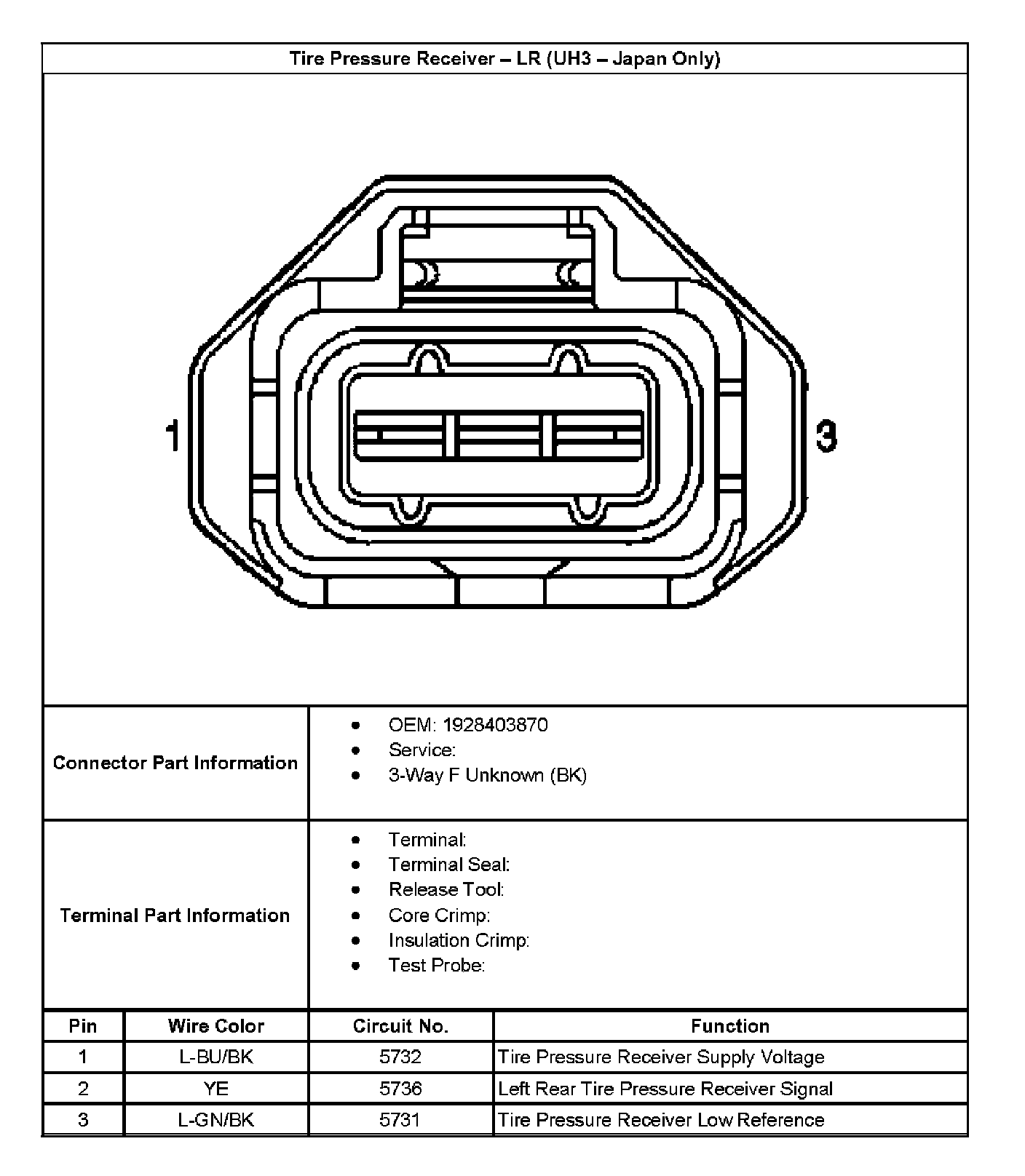

Tire Pressure Receiver - LR (UH3 - Japan Only):

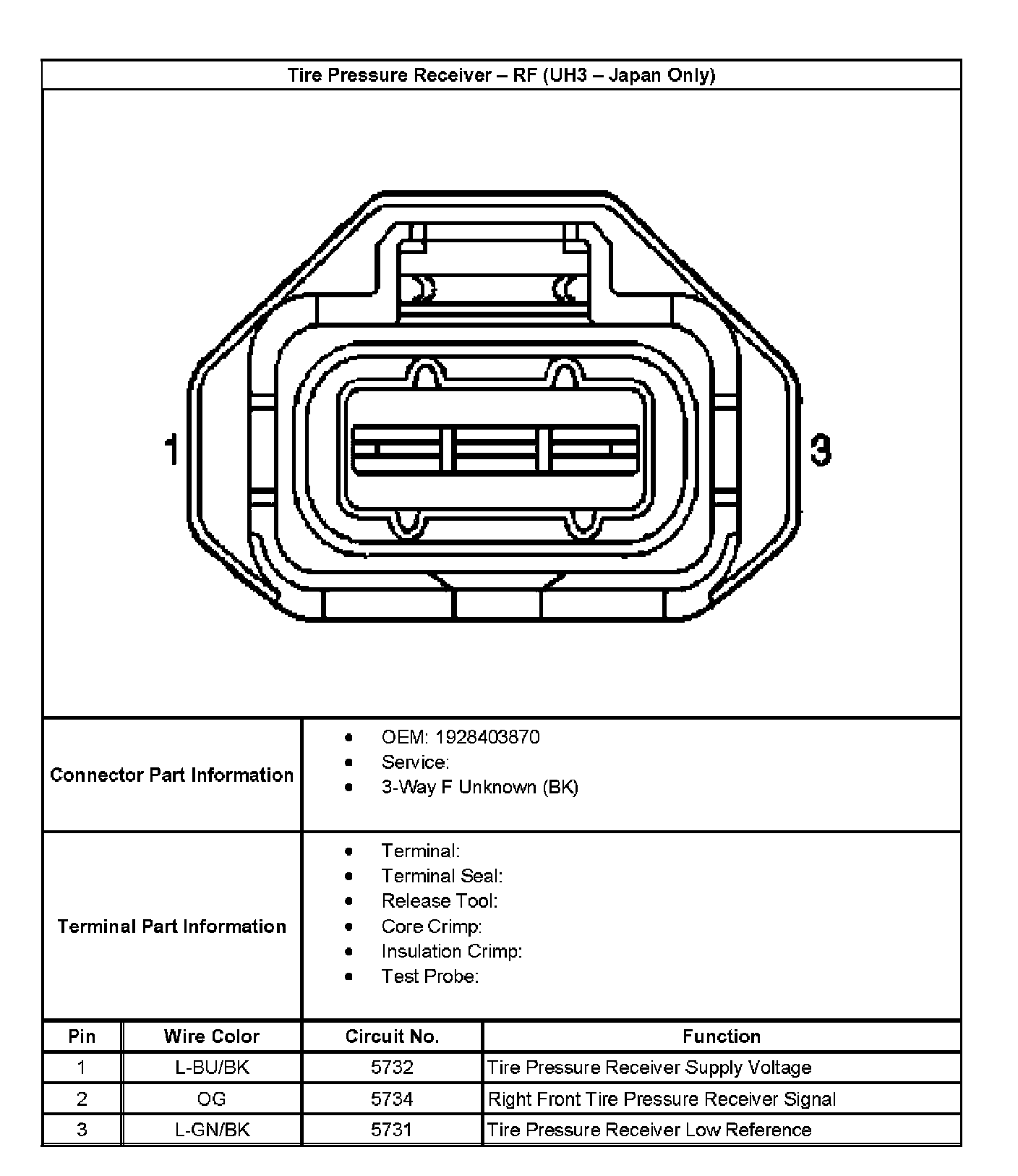

Tire Pressure Receiver - RF (UH3 - Japan Only):

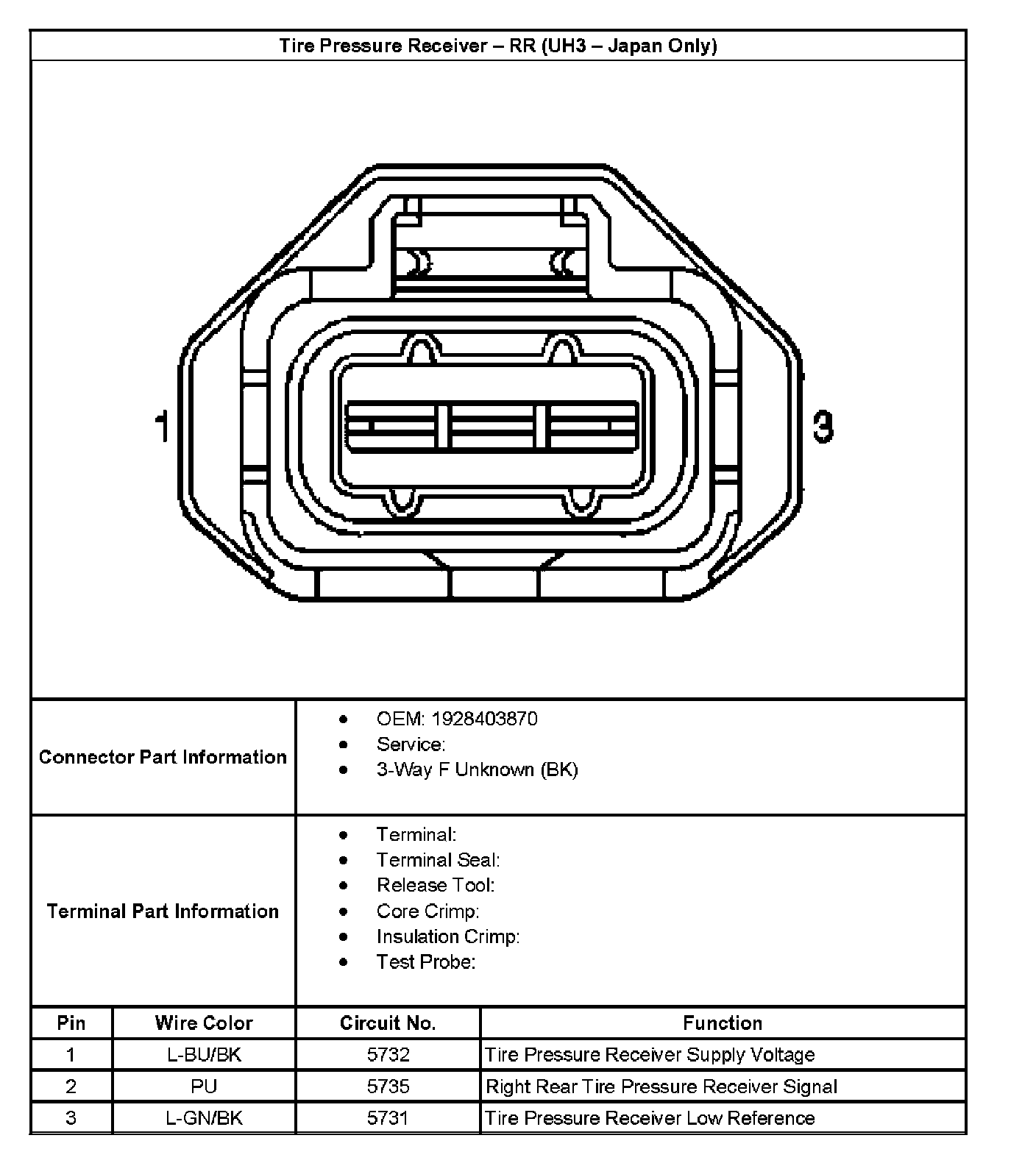

Tire Pressure Receiver - RR (UH3 - Japan Only):
