Suspension Control Module: Service and Repair

Electronic Suspension Control Module Replacement
Removal Procedure
1. Remove the right rear trim panel.

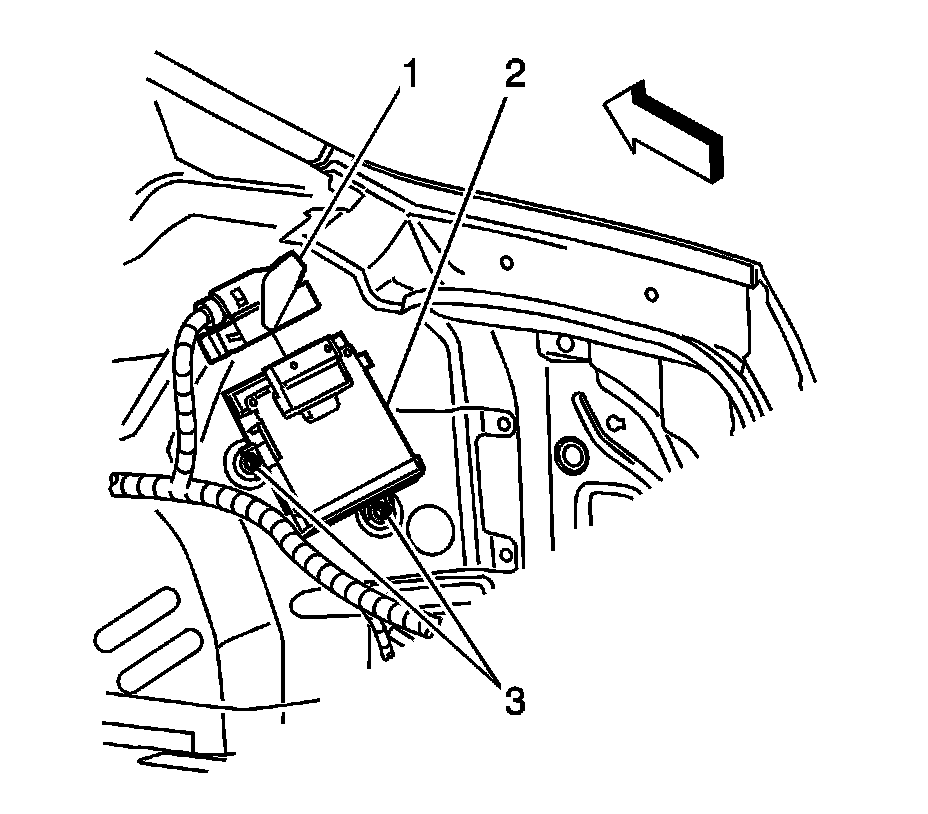

2. Loosen the electronic suspension control (ESC) module nuts (3)
3. Disconnect the ESC module electrical connector (1).
4. Remove the ESC module (2).

Installation Procedure





1. Install the ESC module (2).

2. Notice: Refer to Fastener Notice in Service Precautions.

Connect the ESC module electrical connector (1).
3. Tighten the ESC module nuts (3).
Tighten the nuts to 9 Nm (80 inch lbs.).
4. Install the right rear trim panel.
