Radiator Support Bracket Replacement

Radiator Support Bracket Replacement

Removal Procedure

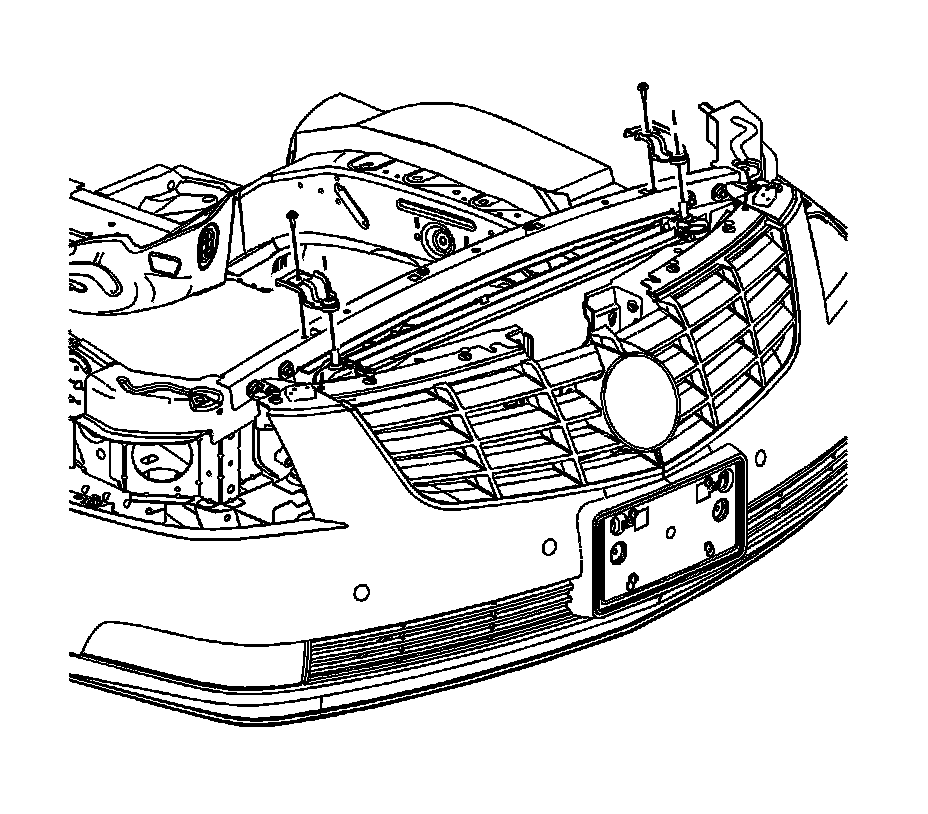

1. Remove the radiator support bracket retaining bolt.
2. Remove the radiator support bracket.

Installation Procedure





1. Install the radiator support bracket.
2. Install the radiator support bracket retaining bolt.
Tighten the bolts to 25 Nm (18 inch lbs.).
