Instrument Panel Outer Air Outlet Deflector Replacement - Left Side

Instrument Panel Outer Air Outlet Deflector Replacement - Left Side

Removal Procedure

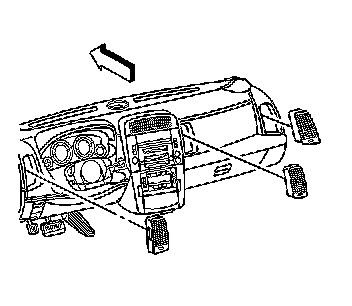

1. Using a small flat bladed tool, insert between the air vent and the I/P retainer.
2. Pry out in order to release the retainer securing the air vent.

Installation Procedure




1. Position the air vent onto the I/P.
2. Push the air vent into the I/P in order to secure.
