Rear Seat Harness

Harness Routing Views

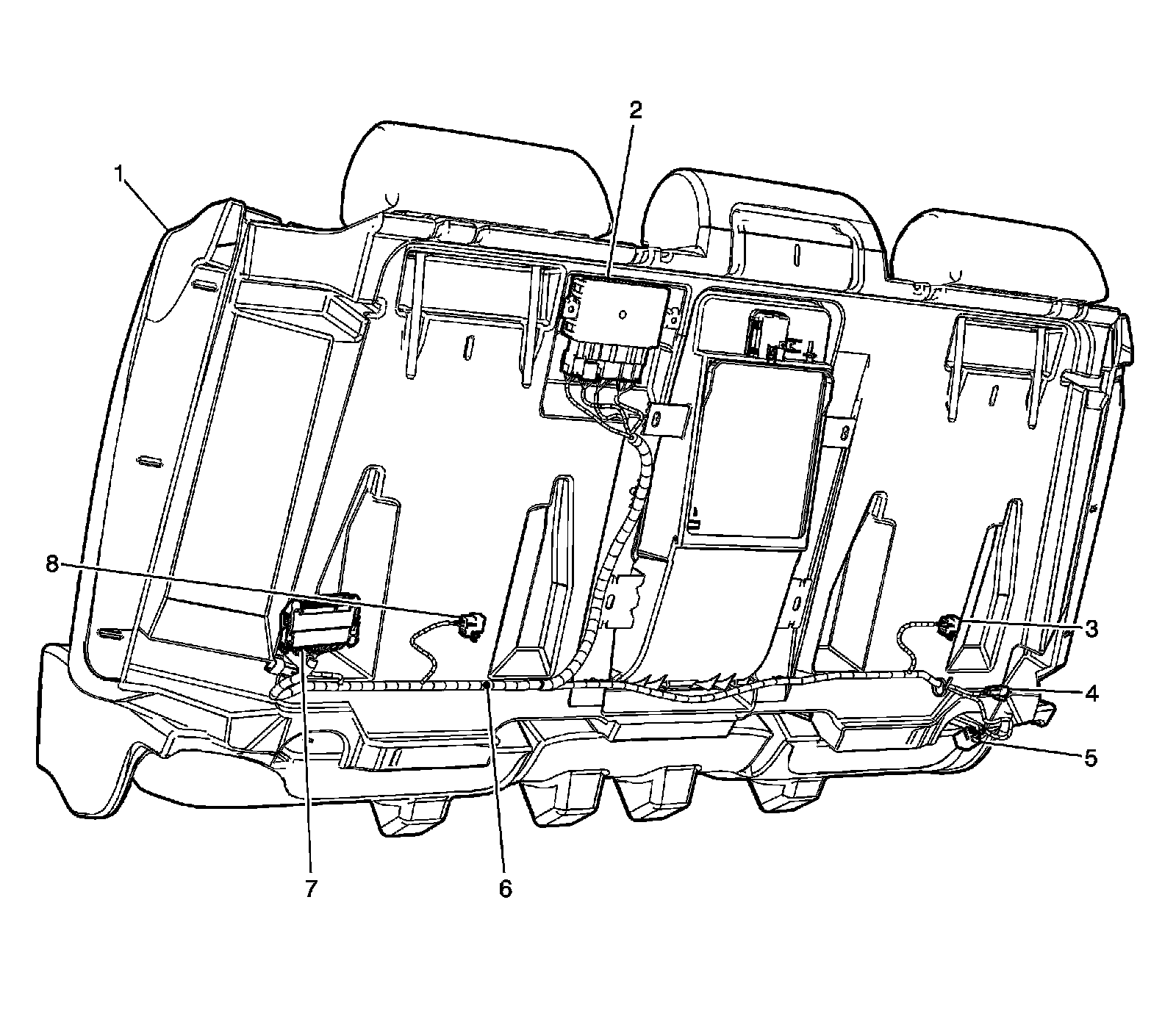

Rear Seat Harness




1 - Seat Back Cushion
2 - Heated Seat Module
3 - Lumbar Inline
4 - Heated Seat Element - RR Back Connector
5 - C320
6 - S353
7 - C313
8 - Lumbar Inline
