Washer Fluid Heater: Diagrams



Wiper/Washer Connector End Views

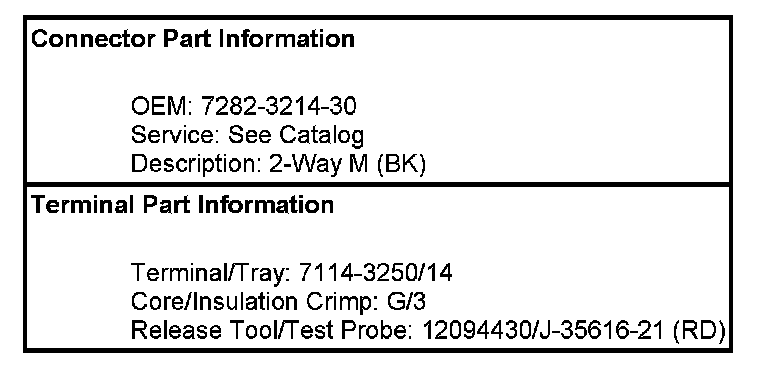

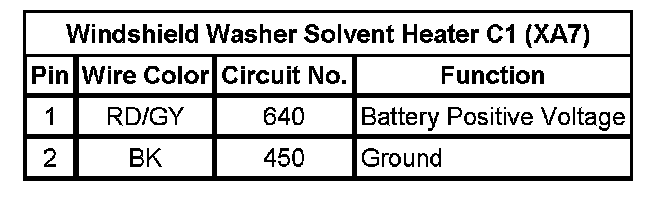

Windshield Washer Solvent Heater C1 (XA7)

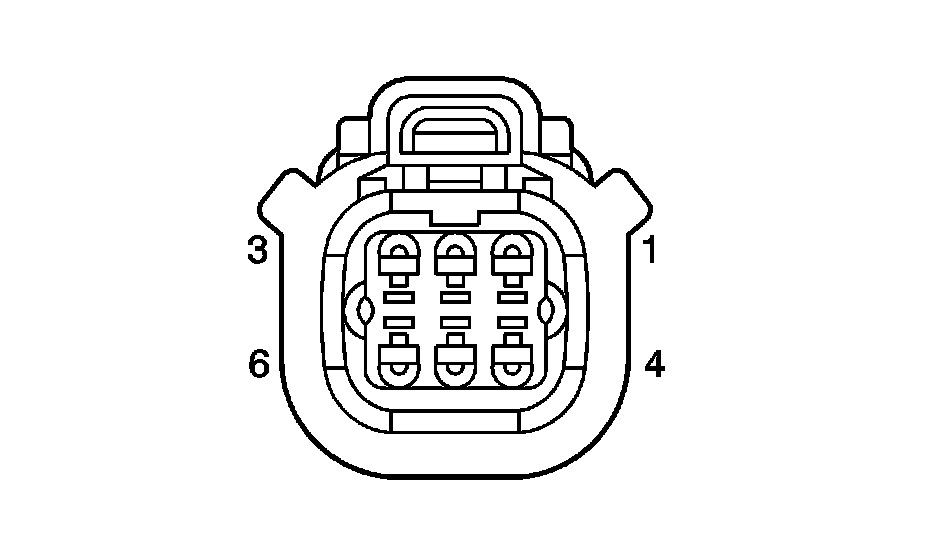

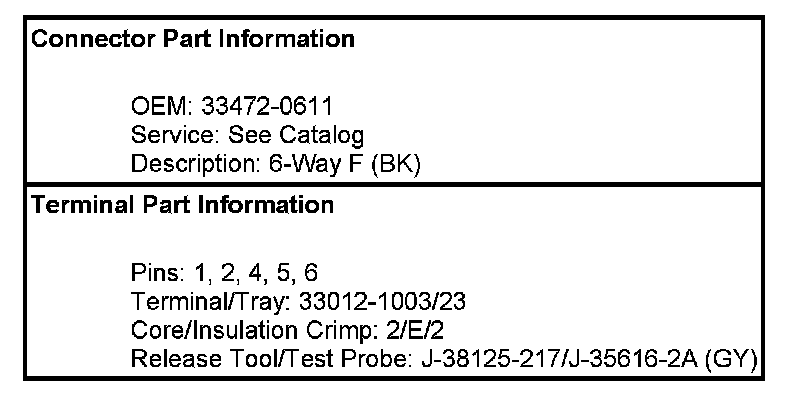

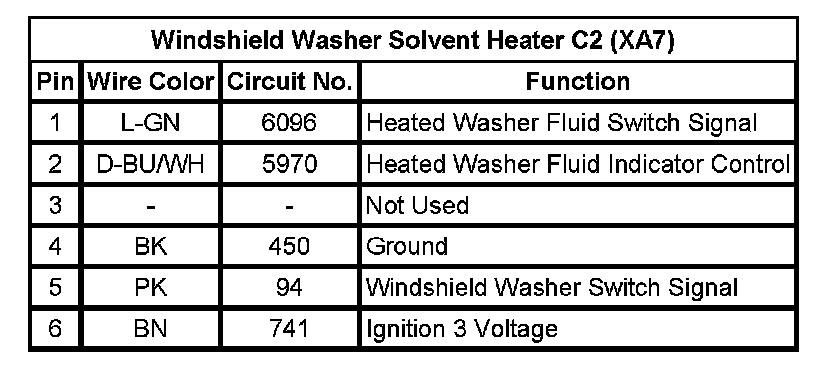

Windshield Washer Solvent Heater C2 (XA7)
