Engine - Oil Filter Bypass Valve/Reinstall or Replace

85-30
6A (VI)
Feb., 1985
Subject: OIL FILTER BYPASS VALVE 2.5L L4 ENGINE
Model and Year: 1980-85 VEHICLES EQUIPPED WITH 2.5L L4 ENGINE (VIN CODE R)
TO: ALL CHEVROLET DEALERS

OIL FILTER BYPASS VALVE:

Re-released to update vehicles affected. Previously released as 83-I-99.

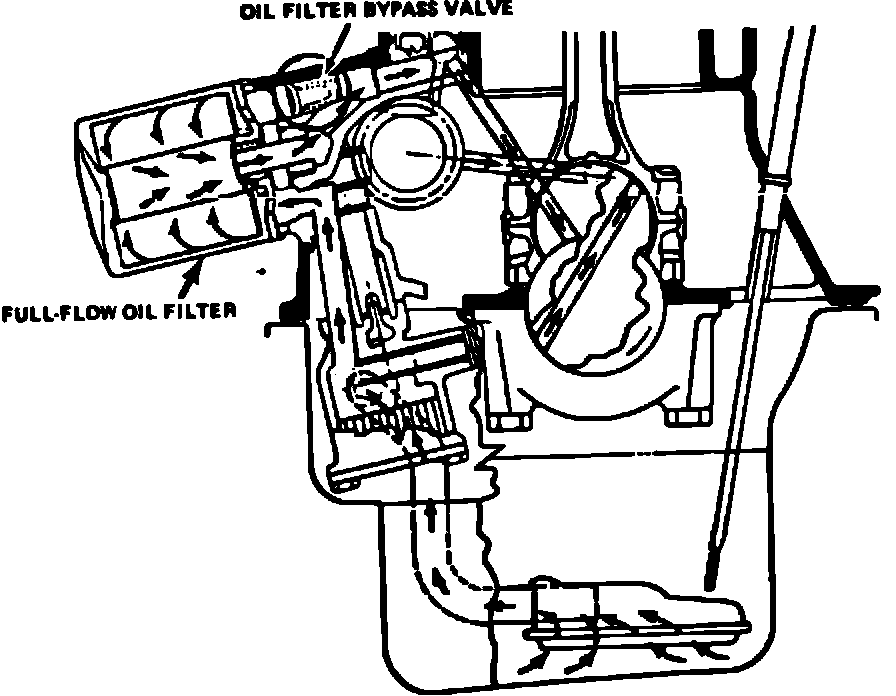

Whenever a repair requires replacement of the engine block, it will be necessary to remove the oil filter bypass valve assembly and reinstall it in the new block. If a new oil filter bypass check valve assembly is required, it will be necessary to order P/N 25010497 through WDDGM (refer to the illustration below).
