Fast Idle Cam: Adjustments

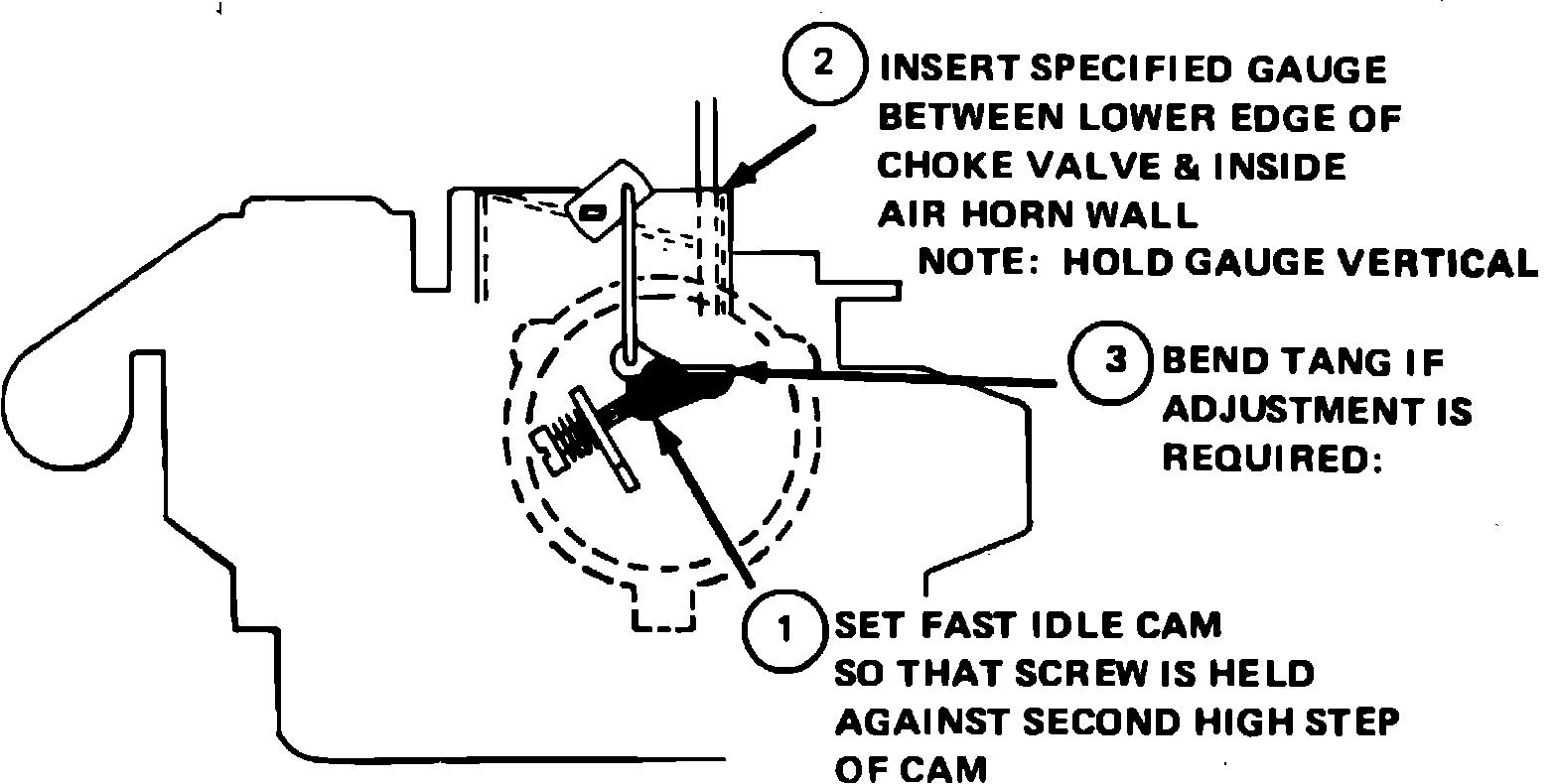

Fig. 6 Fast idle cam index adjustment:
Fig. 6-Set fast idle cam in position so the screw contacts second high step. Insert specified gauge between lower edge of choke valve and air horn wall. Bend tang to adjust.
