Front

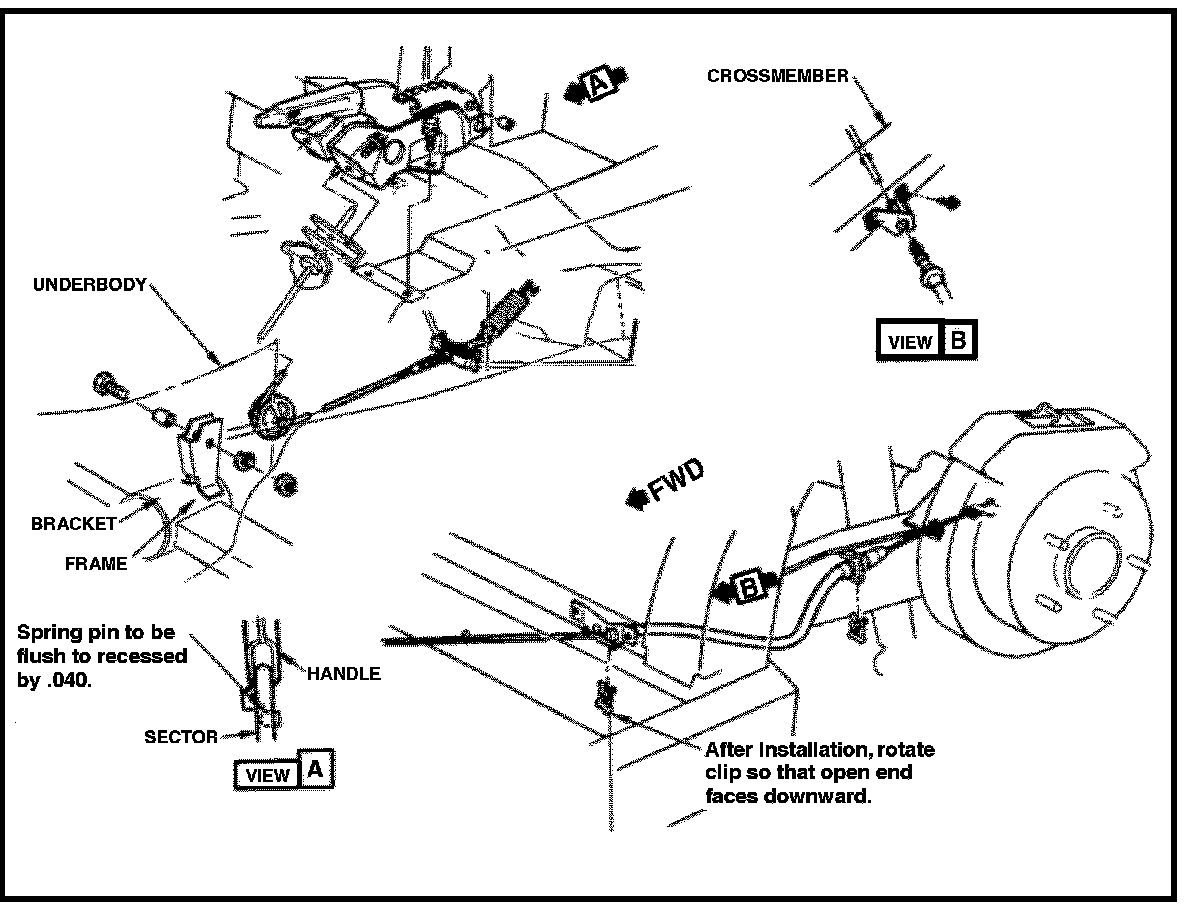

Front Cable Replacement






1. Perform the complete parking brake lever removal procedure.
2. Under vehicle, remove nut, washer, and bolt securing pulley to pulley bracket.
3. Remove seal grommet from underbody cable hole.
4. Pull front cable out of vehicle.
5. Install grommet onto new front cable.
6. Slide front cable into position through cable hole and work grommet into installed position.
7. Under vehicle, loop front cable around pulley wheel and secure pulley wheel to bracket with bolt, washer and nut.
8. Perform the complete parking brake lever installation procedure.
