A/C - Moan Reduction Information

Number: 83-99

Section: 1B (Ia)

Date: Oct., 1983
Subject: A/C MOAN REDUCTION INFORMATION


Model and Year: 1982-83 MONTE CARLO, IMPALA AND
CAPRICE WITH 3.8L (CALIFORNIA ONLY)
TO: ALL CHEVROLET DEALERS


Some 1982-83 Monte Carlo, Impala and Caprice models equipped with air conditioning may experience a moan condition at 50-55 mph or approximately 1300 engine rpm.

The brace and bracket used in production for the 1984 model will correct this condition. Parts are as follows:


25518931 Brace, A/C compressor Adj.
RR & Generator Adj. RR

25518933 Bracket

14060613 Bolt, Brace to A/C Compressor
Support

11507036 Nut, Brace to Manifold Stud

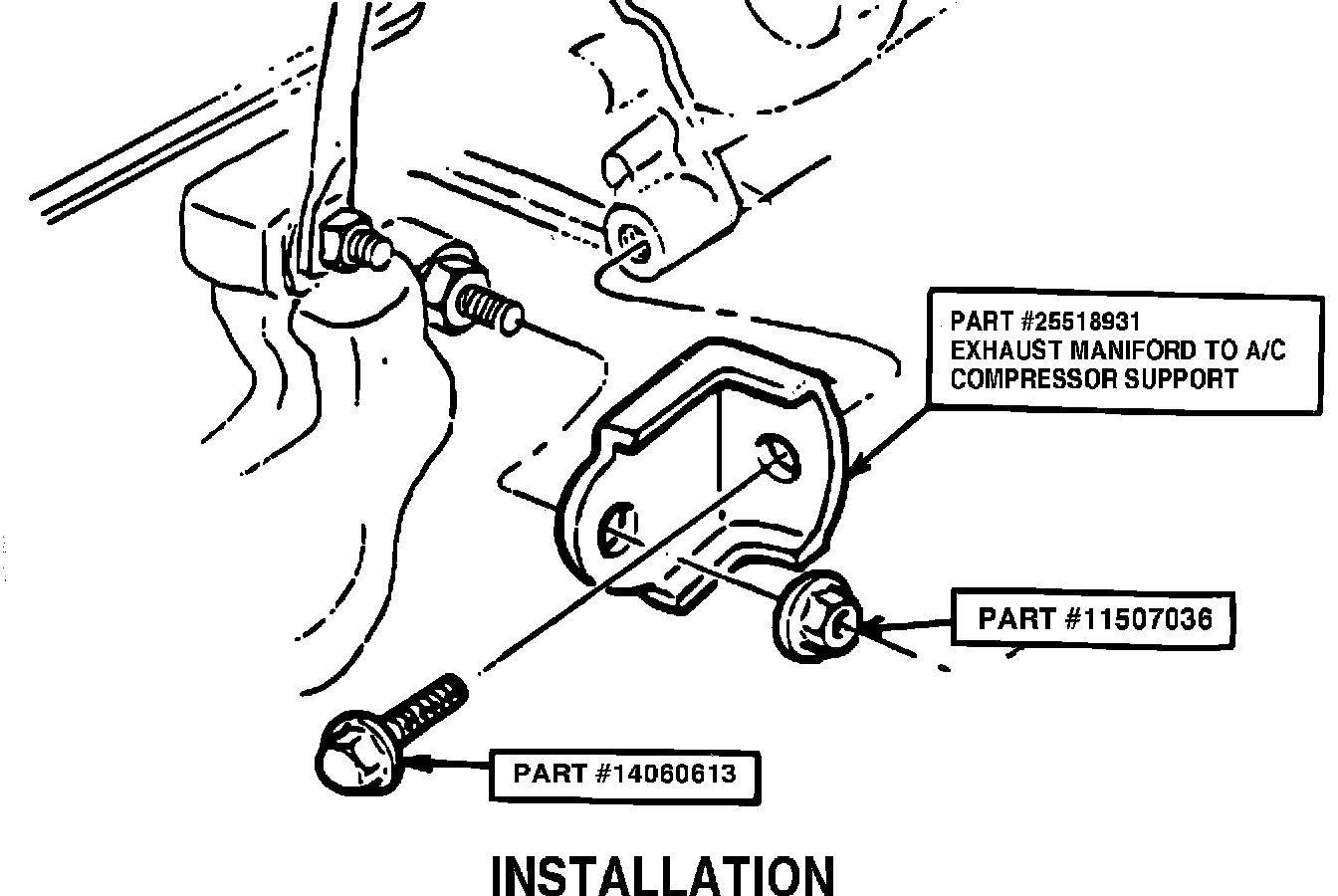

Installation:




Installation:




See illustration for installation instructions.
