Ignition, Check Engine Light
>>
2 Door
2 Door

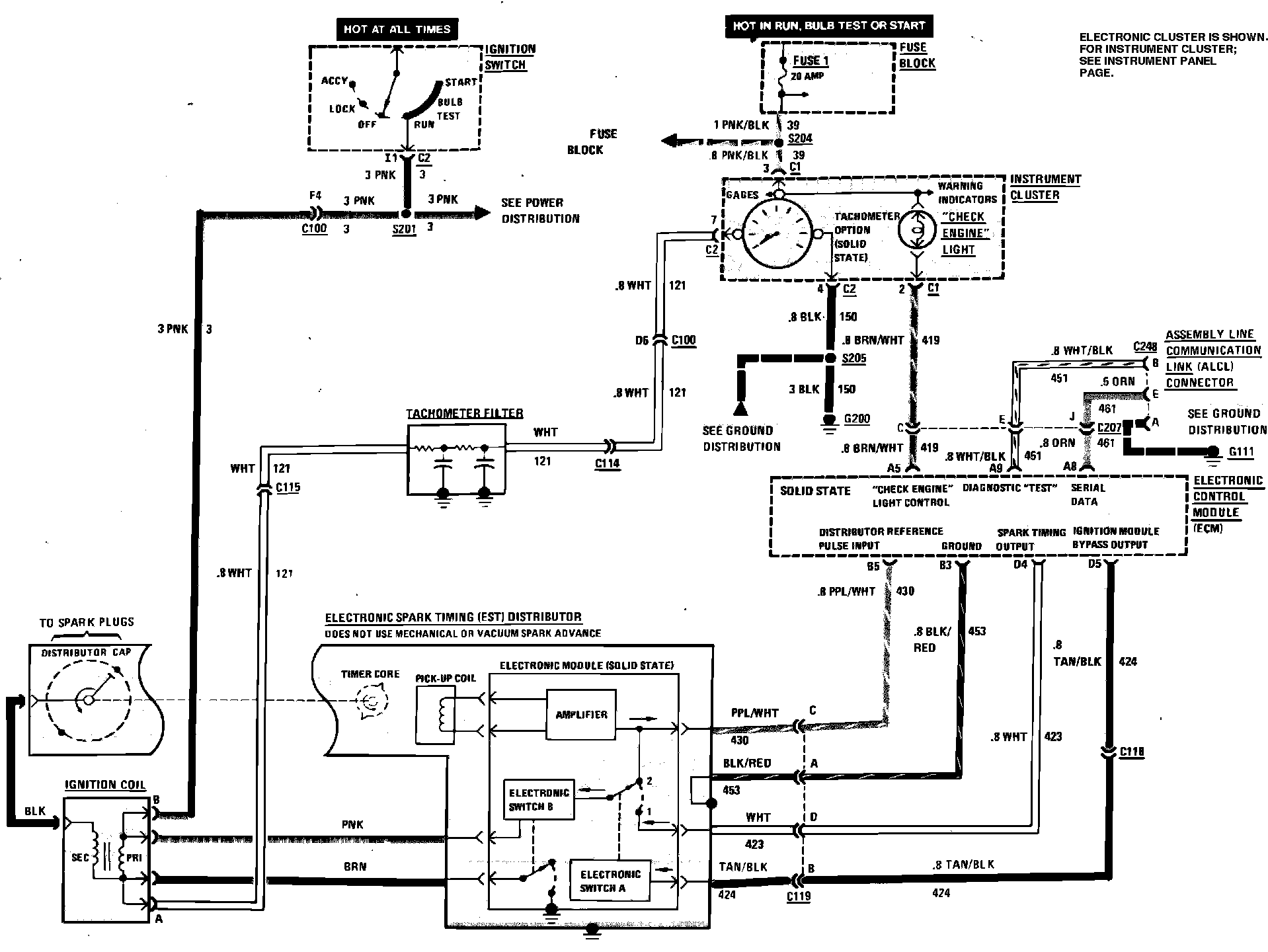

Electronic Fuel Injection (Check Engine Light & Ignition) Wiring Circuit:
