Home >> Chevrolet >> 1985 >> Cavalier/Z24 L4-121 2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> Cavalier 2 Door With Console

Cavalier 2 Door With Console

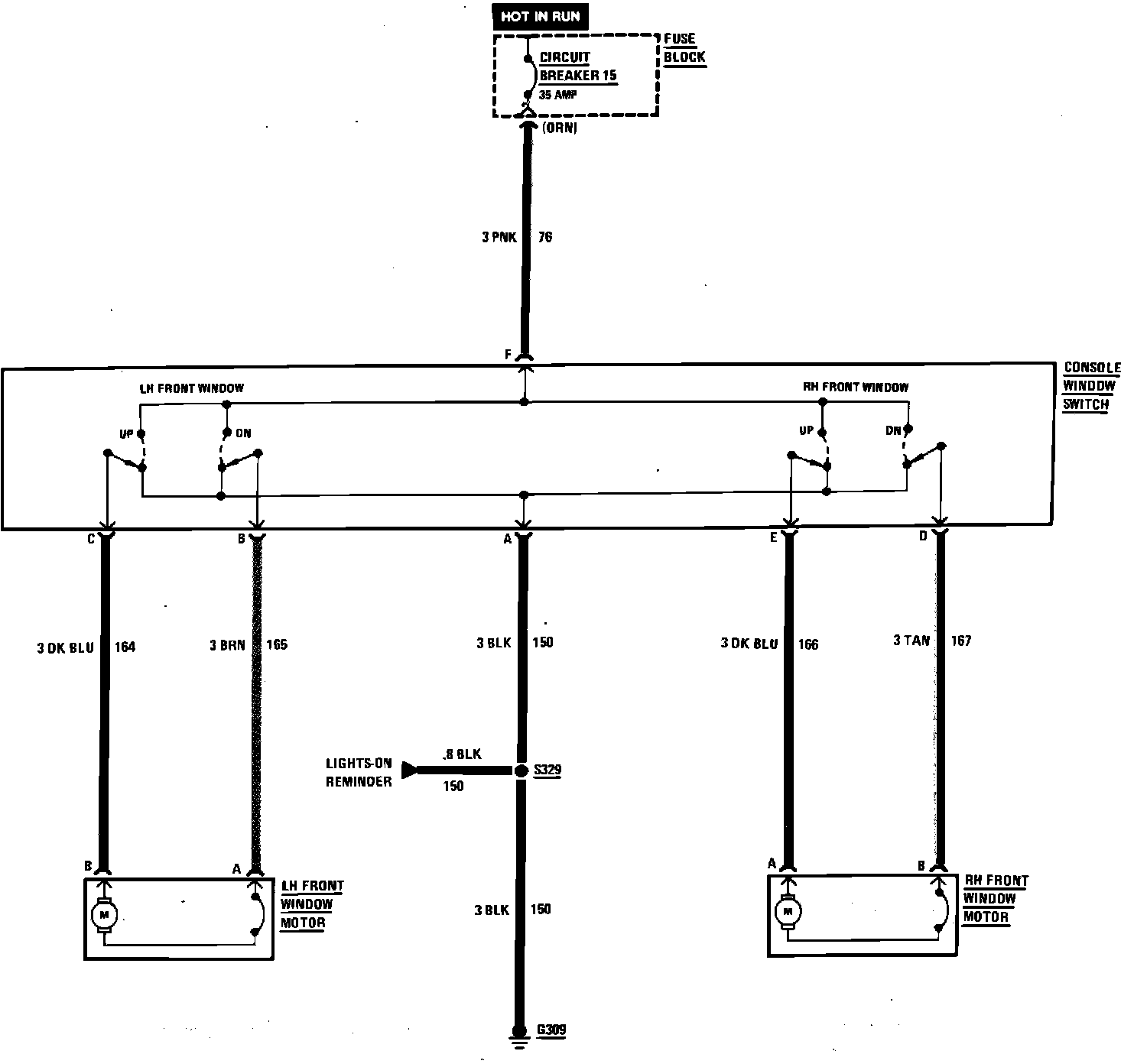

Power Window Wiring Circuit (2 Door With Console):
