Steering - Inner Tie Rod Bolt Lock Plate Modified
85-653B
APR., 1985
Subject: INNER TIE ROD TO GEAR BOLT LOCK PLATE REPLACEMENT
Model and Year: 1985 CAVALIER
LOCK PLATE:
TO: ALL CHEVROLET DEALERS
The inner tie rod bolt lock plate has been changed from the tab type lock plate to a push-on retainer type lock plate on 1985 Cavaliers.

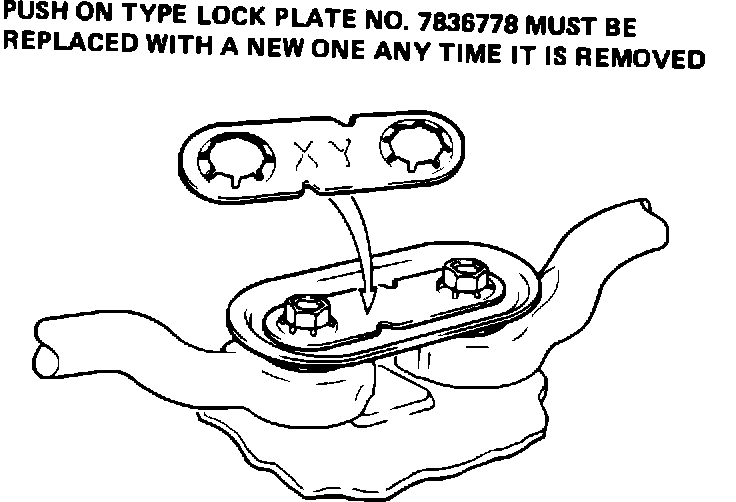

The new push-on lock plate, Part No. 7836778 must be replaced with a new one any time it is removed. Replacement is necessary as the plate may be damaged during removal and may not retain properly if reused. See Figure.
The new lock plate will be included with future packages of tie rods and center take-off short gears.
