Knock Sensor
>>
Locations
>>
Electronic Spark Control Detonation Sensor
Electronic Spark Control Detonation Sensor

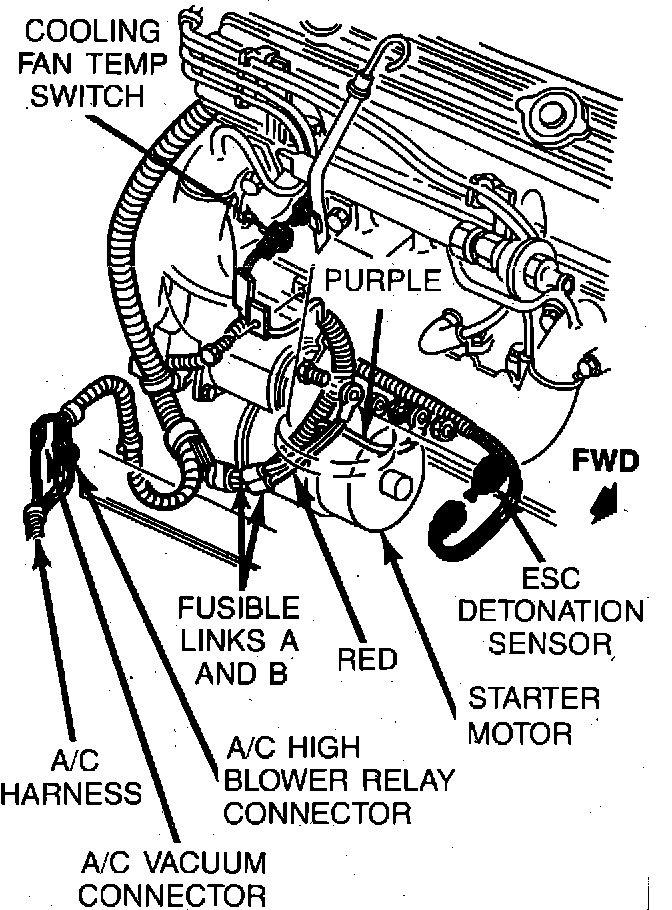

RH Side Of Engine.:
Top View Of Engine Compartment.:
RH Side Of Engine, Ahead Of Starter
Applicable to: 1984-85
