Powertrain Management: Locations

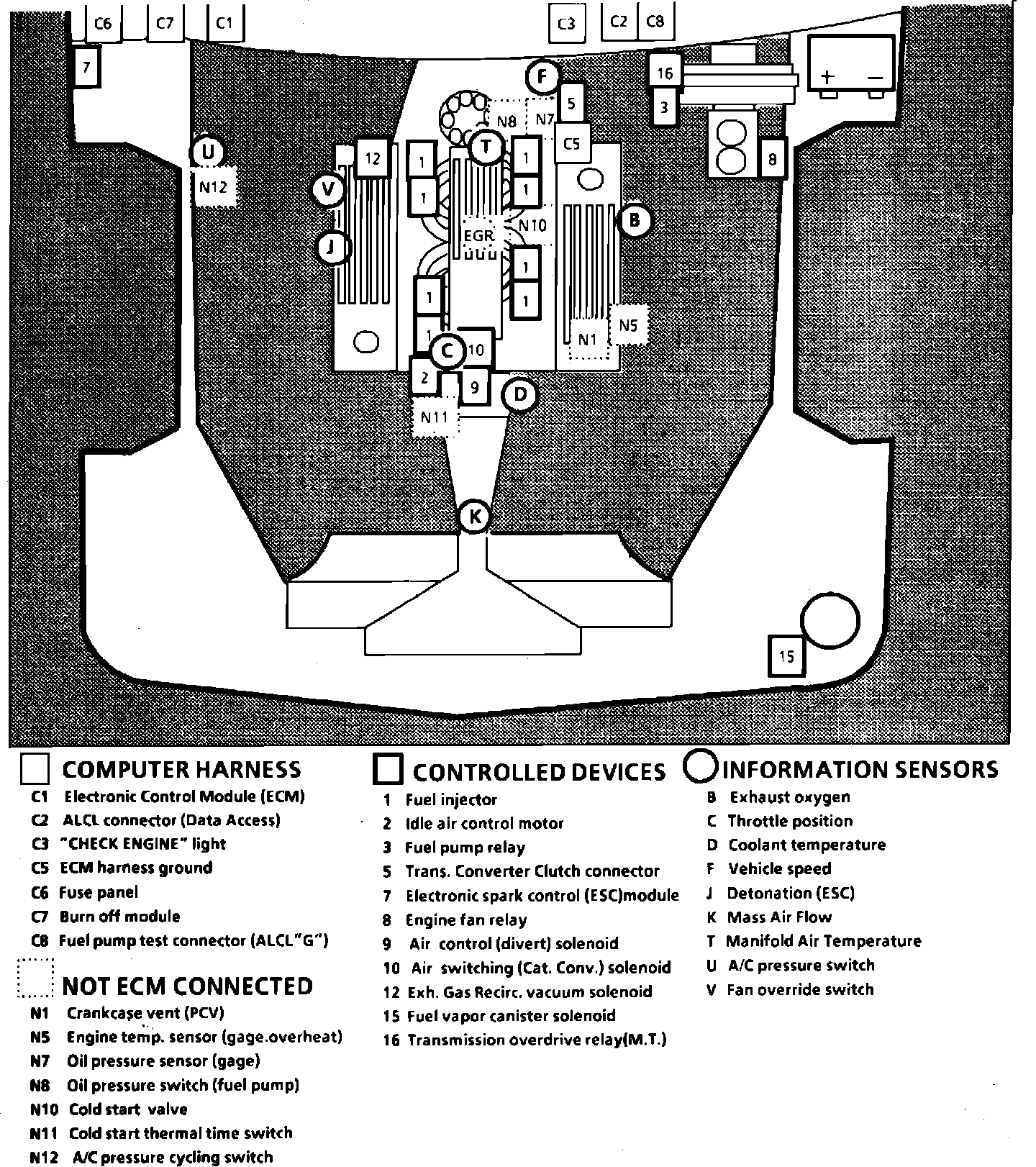

Fig. 31 Emission Component Location. 1985 Corvette W/V8-350/5.7L, PFI:
