Nova W/4-97/1.6L OHC Engine Exc. Calif. Models
Nova W/4-97/1.6L OHC Engine Exc. Calif. Models

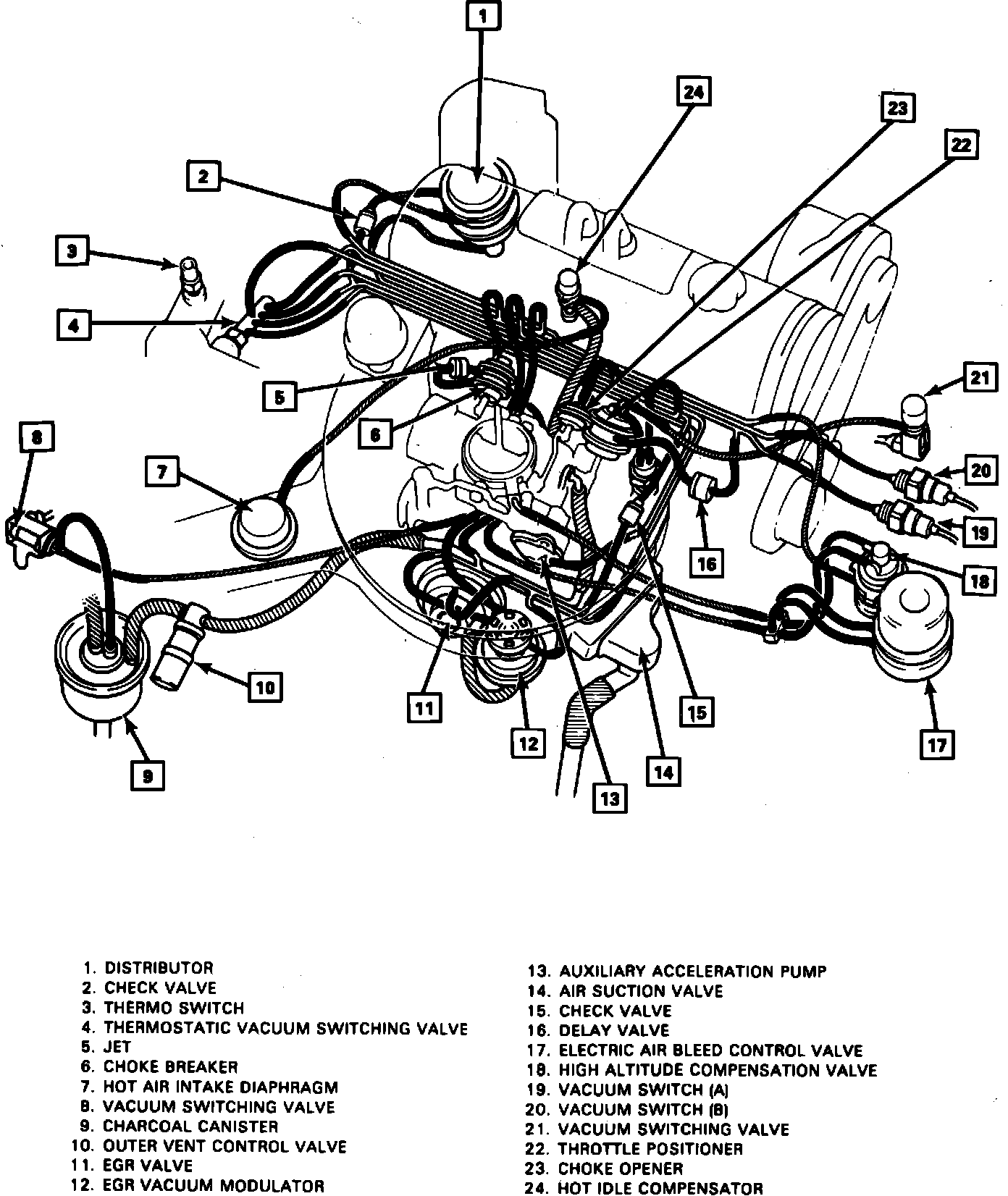

Fig. 33 Emission Component Location. 1985-86 Nova W/4-97/1.6L OHC Engine Exc. Calif. Models:
