Cruise Control
>>
Camaro Berlinetta
Camaro Berlinetta

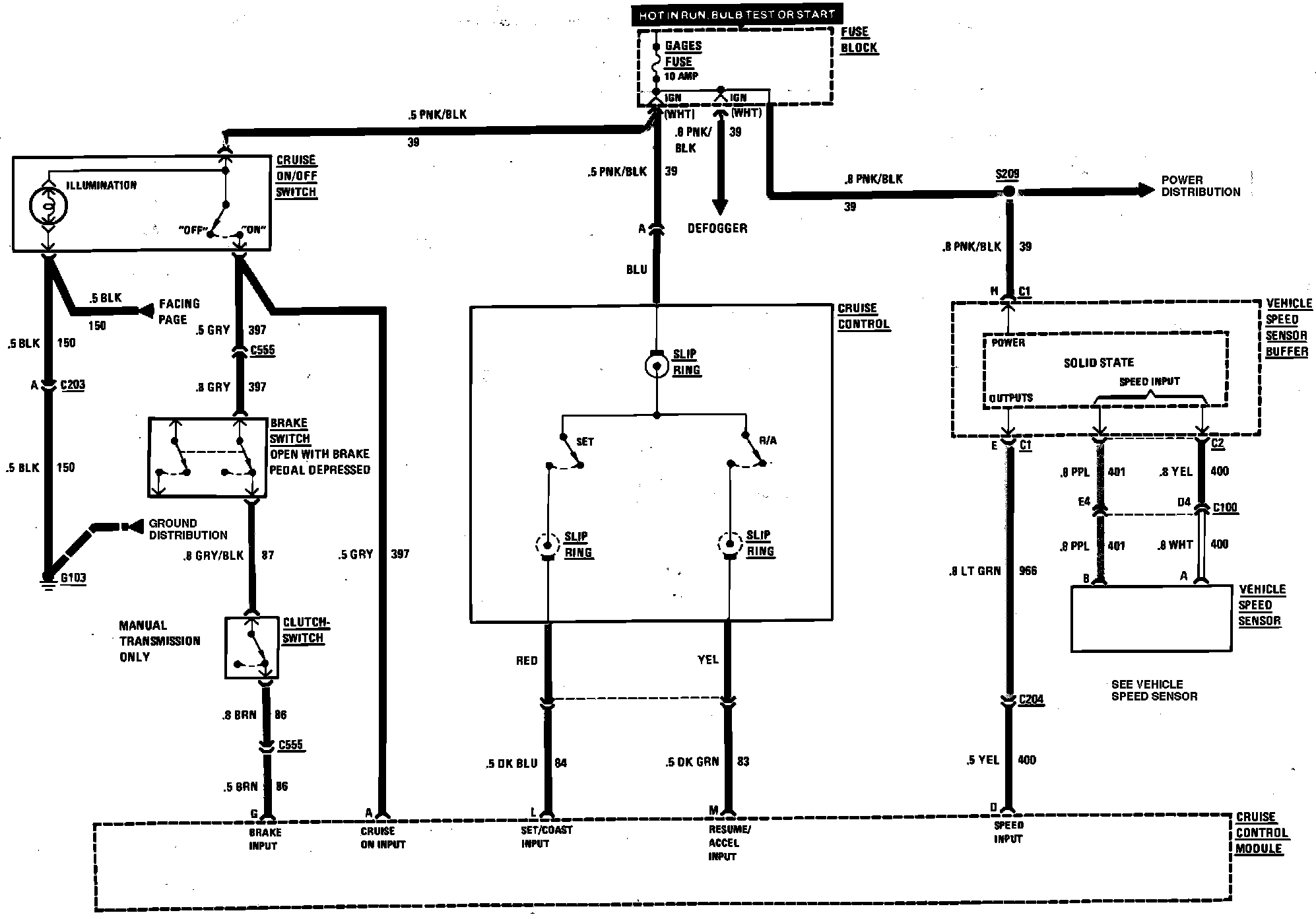

Cruise Control Vacuum & Wiring Circuit (Part 1 of 2). Berlinetta:
