Exc. Berlinetta

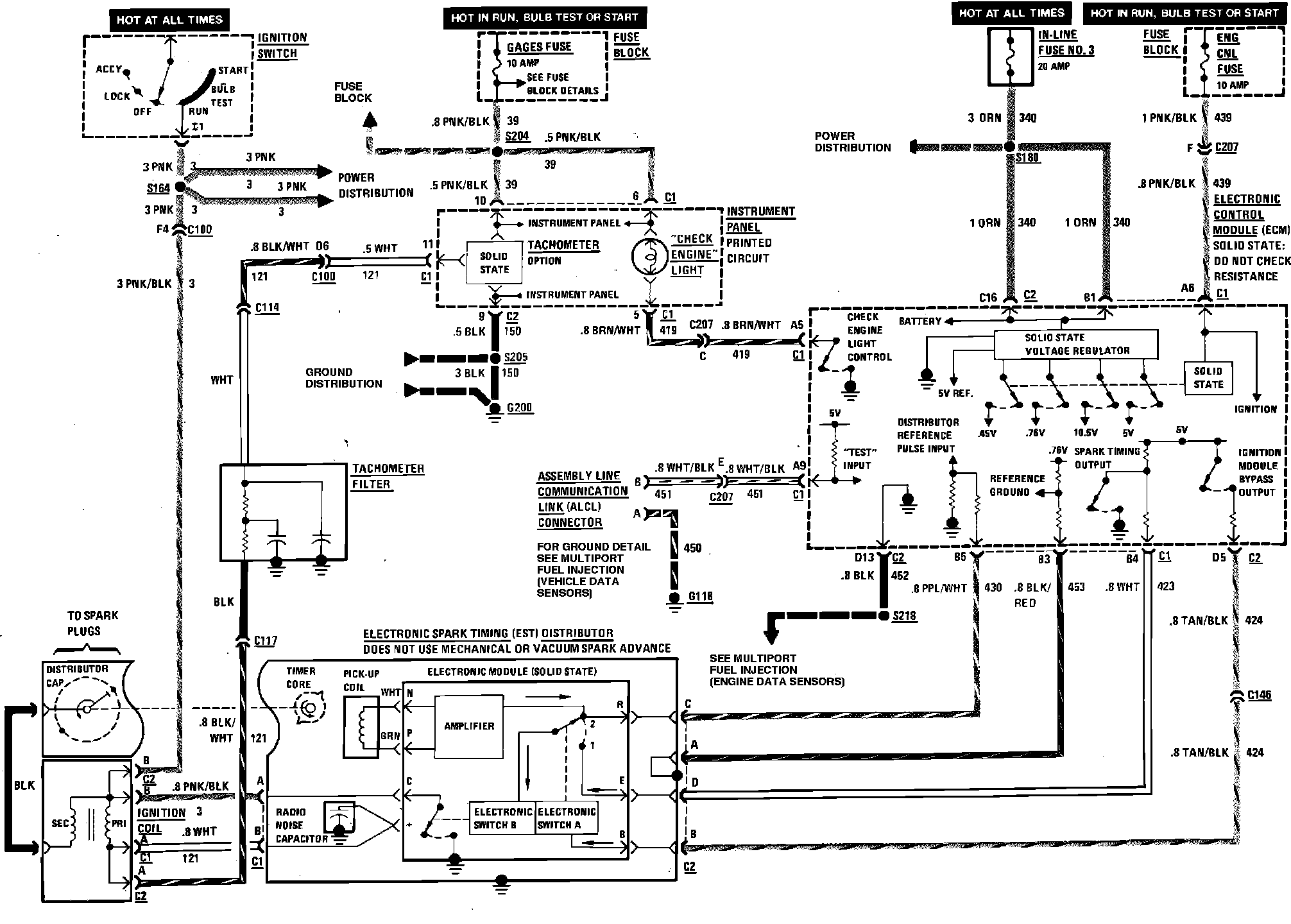

Multi-Point Fuel Injection Wiring Circuit (Check Engine Lamp, Ignition & Tachometer):
