Design and Clearance Specifications
DESIGN AND CLEARANCE SPECIFICATIONSClearance Specifications:

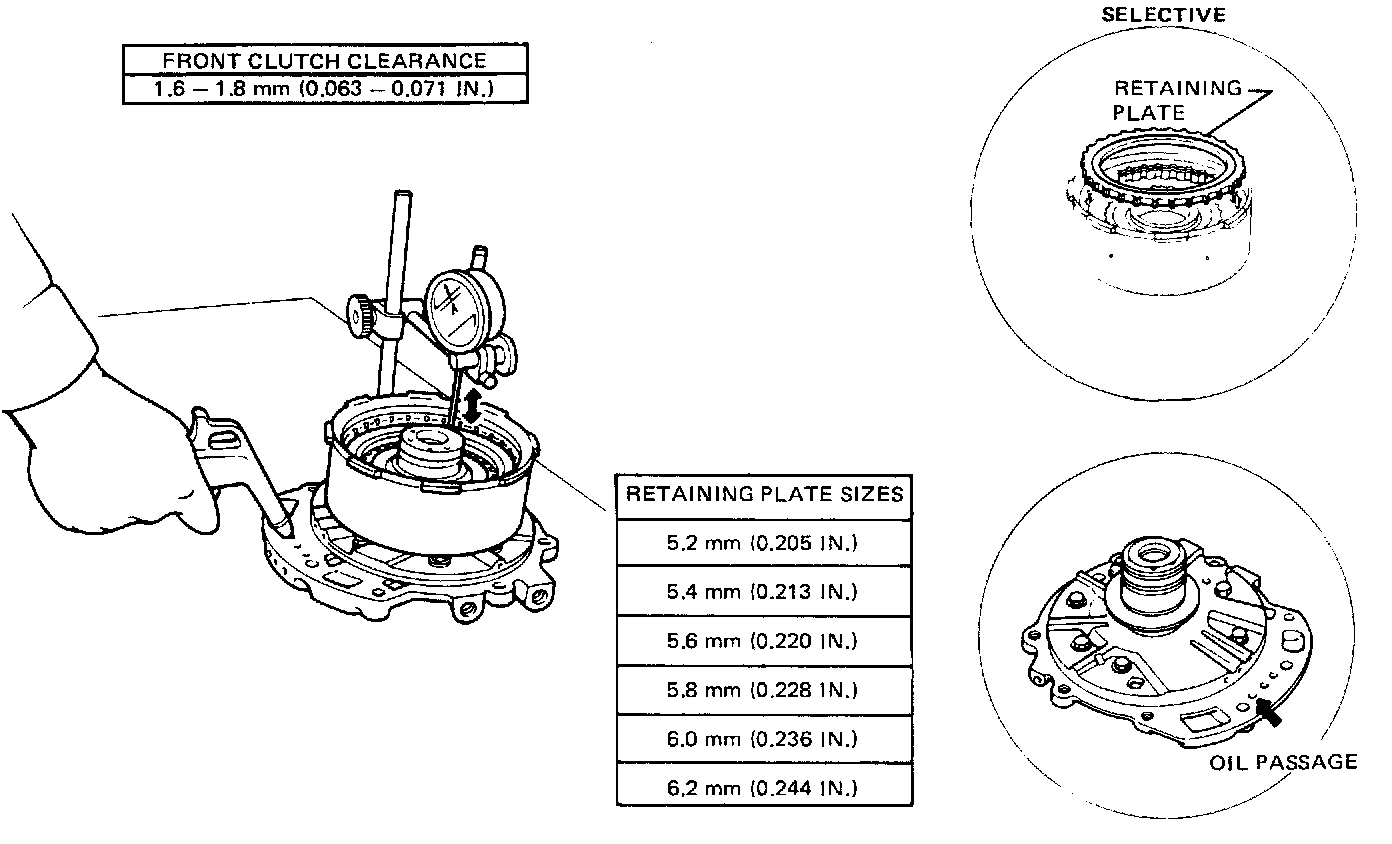

Front Clutch Clearance:
Rear Clutch Clearance:

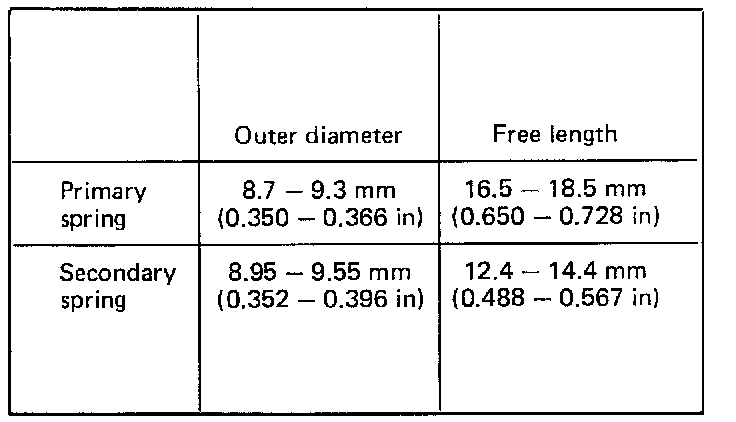

Governor Springs And Retainers:
Return Spring Specifications:

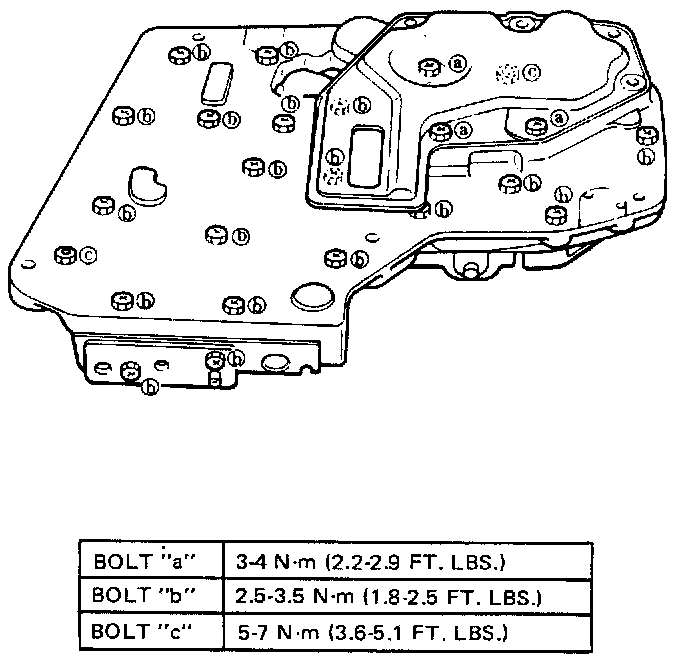

Valve Body Bolt Torque Specifications:
Valve Body Bolt Torque Specifications:

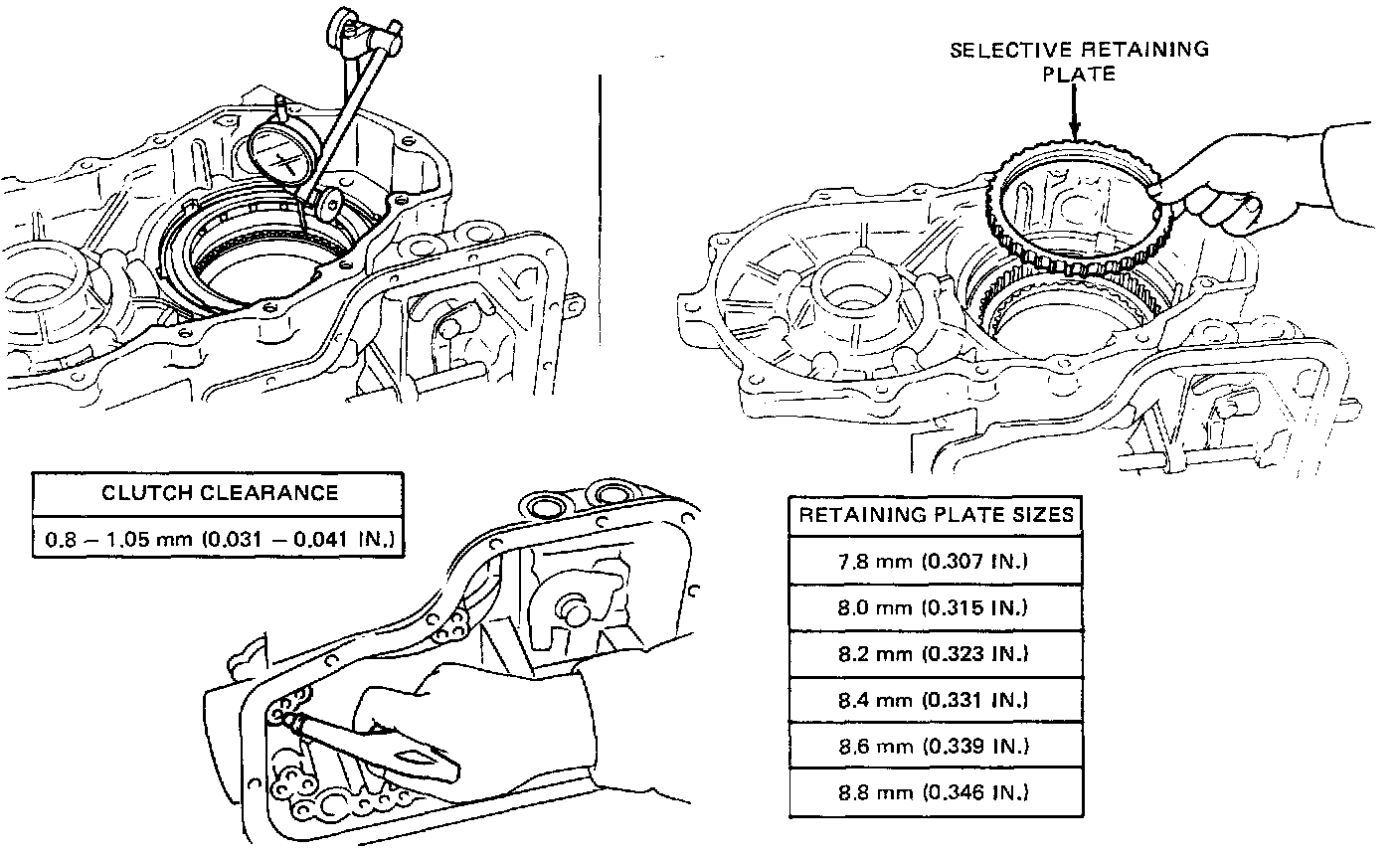

Low/Reverse Clutch Clearance:
Countershaft Rear Bearing
Clearance 0.125 in. (3 mm.) beyond case surface
Output Shaft Bearing Preload 0.001-0.005 in. (0.03-0.13 mm.)
