A/C - Punctured Condenser

87chevy17

Number: 88-30

Section: 1B

Date: July, 1987

Subject: PUNCTURED AIR CONDITIONING CONDENSER


Model and Year: 1987-88 BERETTA, CORSICA
TO: ALL CHEVROLET DEALERS

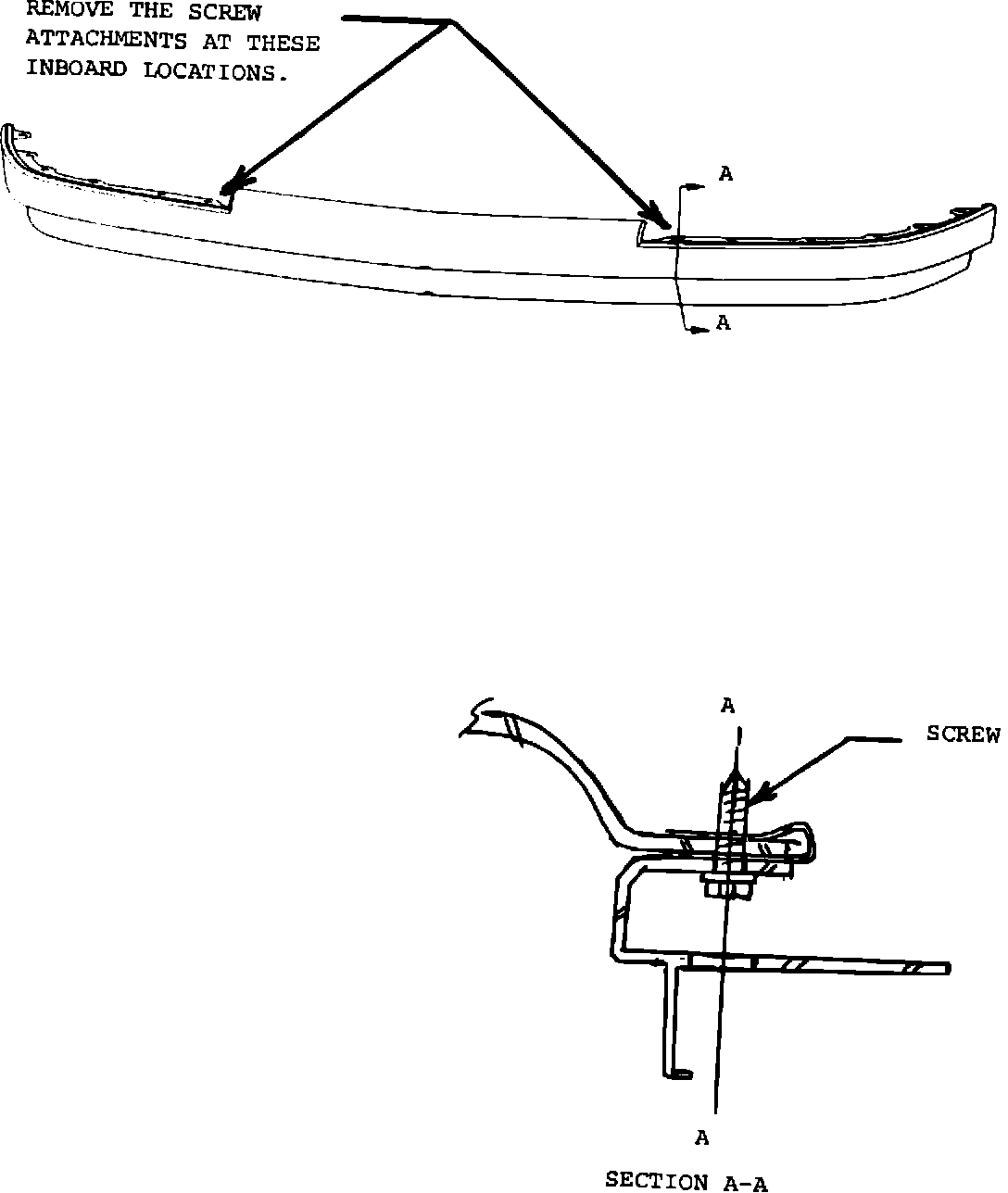

FIGURE 1 - FRONT BUMPER LOWER AIR DEFLECTOR:

The air conditioning condensers in some 1987-88 Beretta, Corsica models may have been punctured by a screw from the lower air deflector (See Figure 1).

For this reason, future production parts will eliminate the inboard attachments. Likewise, do not install the two inboard screws when installing the air deflector at the dealership. The current installation instructions supplied earlier are incorrect. New installation instructions are immediately forthcoming.

If an interference is noted between the condenser and deflector attaching screw on the subject vehicles, remove the two inboard screws.

Labor Operation Labor
Number Time


Remove two inboard
attaching screws: D9990 .2 Hours
