A/T - Slow TCC Apply
88chevy19Number:
REISSUE 87-267-7A
Section: 7A
Date: OCT., 1988
Subject: SLOW TCC APPLY - PLUG IN PUMP COVER
Model and Year: 1987 CHEVROLET VEHICLES
WITH THM 200C TRANSMISSION
TO: ALL CHEVROLET DEALERS
FIGURE 2:
Chevrolet Dealer Service Bulletin 87-267-7A dated January, 1988, is being reissued to correct a part number indicated with art work on Page 2. All copies of the January, 1988 issued bulletin should be discarded.

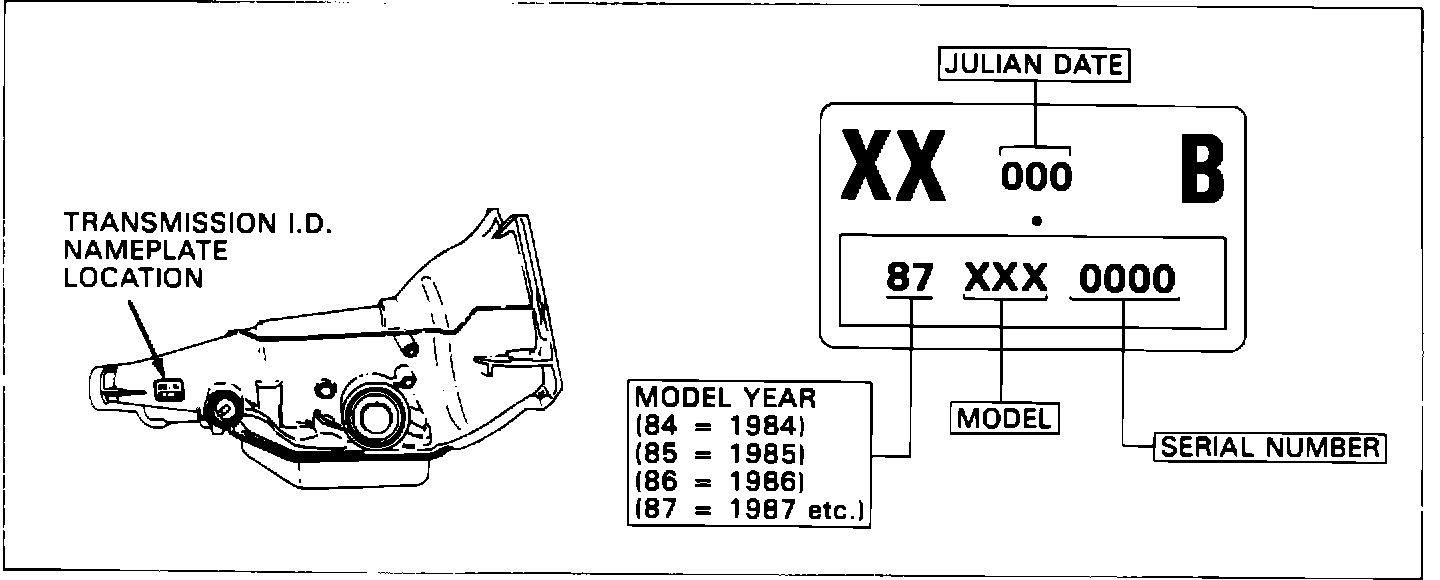

FIGURE 1 - THM 200C TRANSMISSION NAMEPLATE:

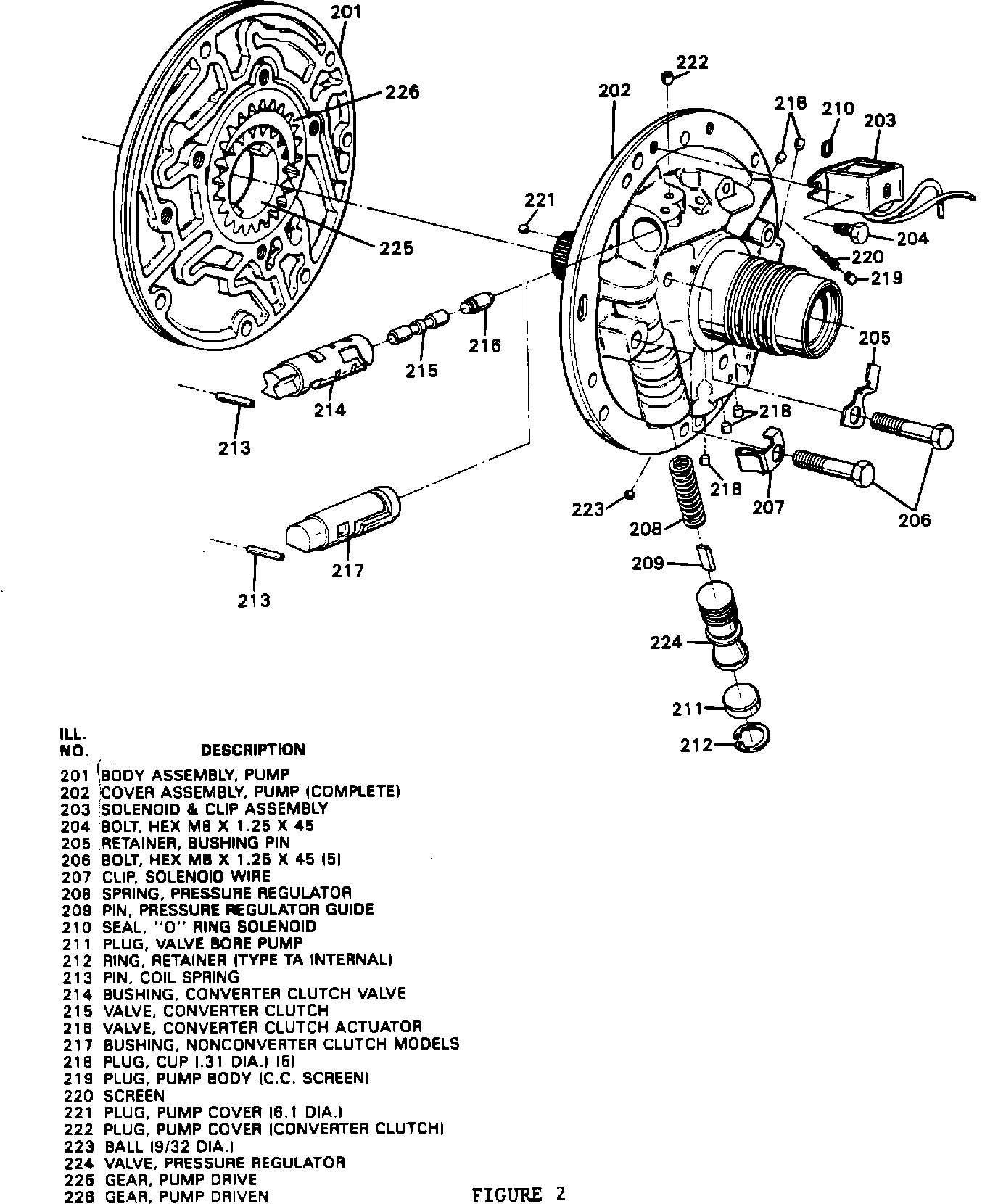

FIGURE 2:
A new turbine shaft with a ball capsule entered production for the 200C transmission (Figure 1). Transmissions produced between October 8, 1986 (Julian date 281) and December 15, 1986 (Julian date 349) may inadvertently have had a plug left in the pump cover (refer to Figure 2, item 222). If the plug is left in, a slightly slower torque converter clutch (TCC) apply may result. This slightly slower TCC apply is not a durability concern.
When installing a Neutral/Drive shift package, as referenced in Dealer Service Bulletin 87-149 (Section 7A) dated May 1987, or when servicing a pump on a THM 200C built between the above time frames, make sure the plug is removed from the pump cover. The new turbine shaft assembly with ball capsule is included in the Neutral/Drive shift package.
SERVICE PARTS INFORMATION
Part Number Description Model Applications
8633958 Cover Assembly, Pump All
(with plug) for use when servicing transmissions produced prior to October 8, 1986, Julian date 281.
8638966 Cover Assembly, Pump All Except 7CUB
(without plug)
8638968 Cover Assembly, Pump 7CUB
(without plug)
