Engine Metal Temperature Switch

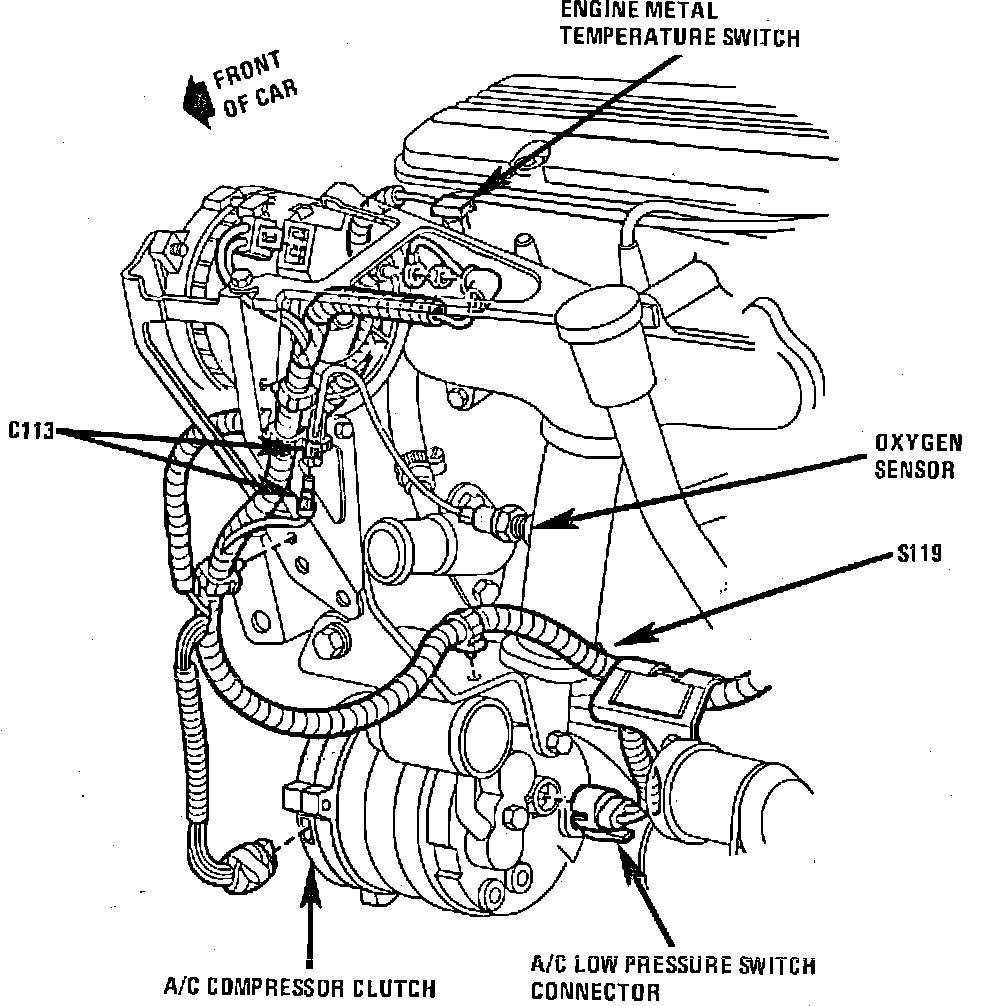

Engine Metal Temperature Switch
RH Front Of 4-121/2.0L:
RH Front Of Engine On Front Of Cylinder Head
Applicable to: 0L (VIN 1) Engine
