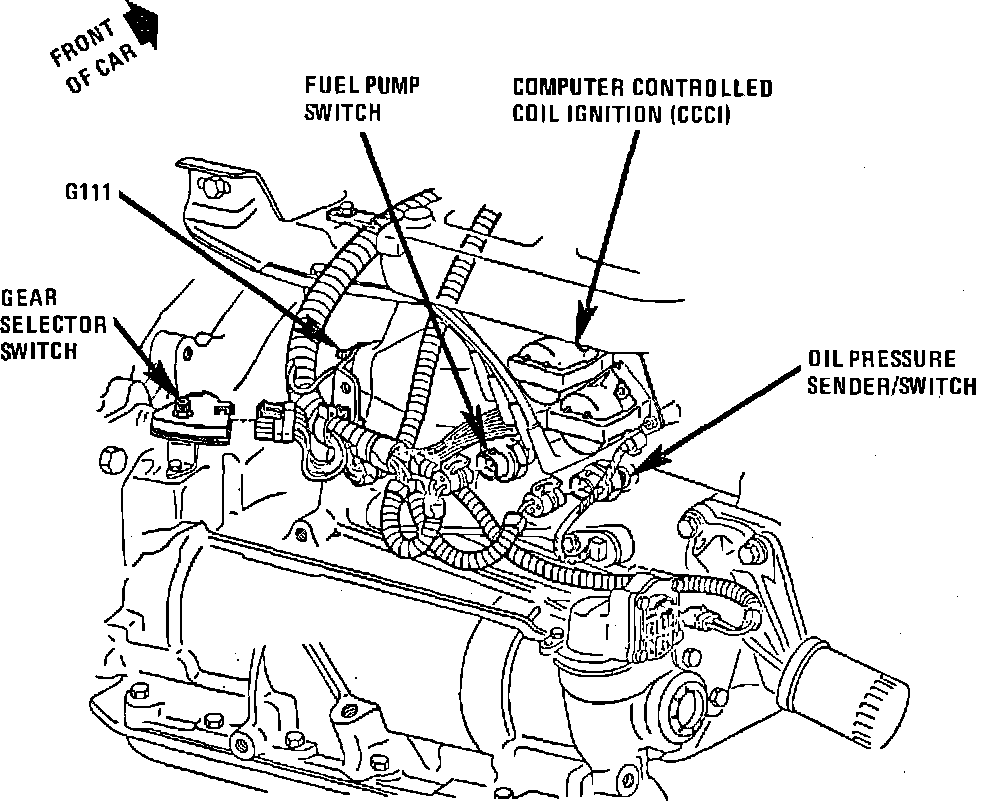

Fuel Pump Switch
Rear Of 4-121/2.0L:
Rear Of Engine, Below Direct Ignition System
Applicable to: 0L (VIN 1) Engine
