Home >> Chevrolet >> 1987 >> Cavalier/Z24 L4-121 2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Compressor HVAC >> Part 2 of 2

Part 2 of 2

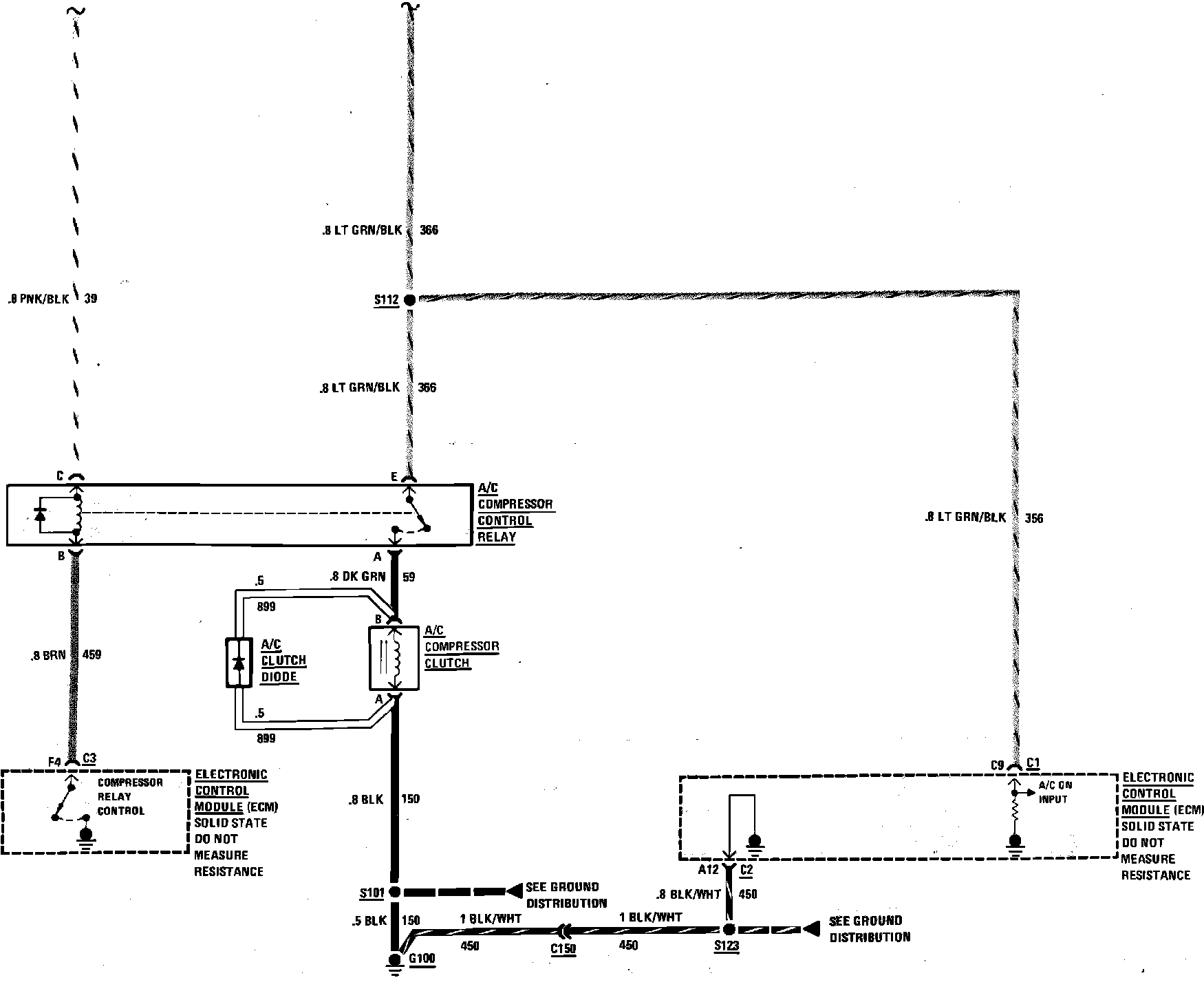

Fig. 13 Air Conditioning Wiring Circuit Compressor Control (Part 2 Of 2):
