Part 2 of 2
Part 2 of 2

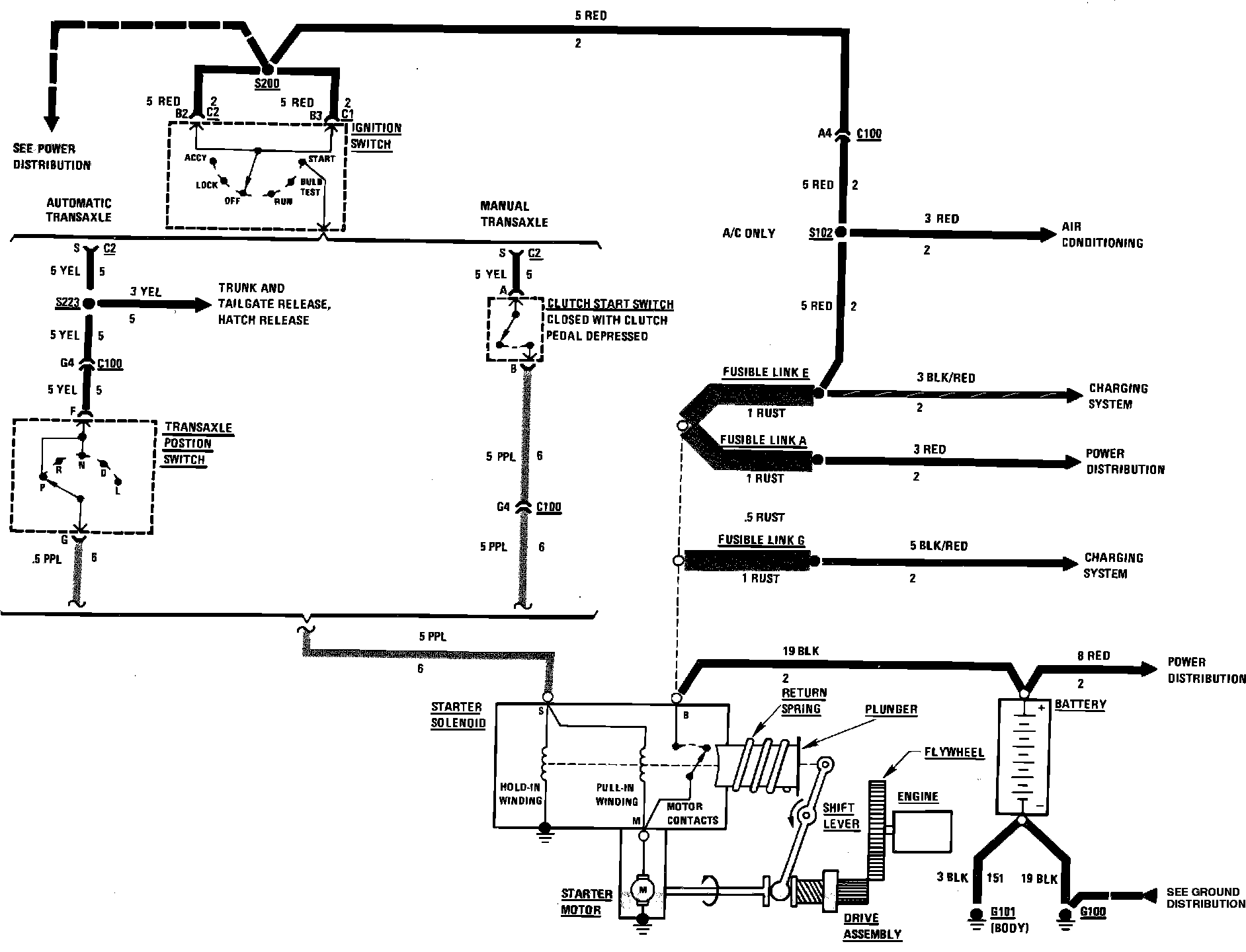

Fig. 33 Charging & Starting System Wiring Circuit (Part 2 Of 2) W/V6-173/2.8L Engine:
