Home >> Chevrolet >> 1987 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Map Light >> Convertible

Convertible

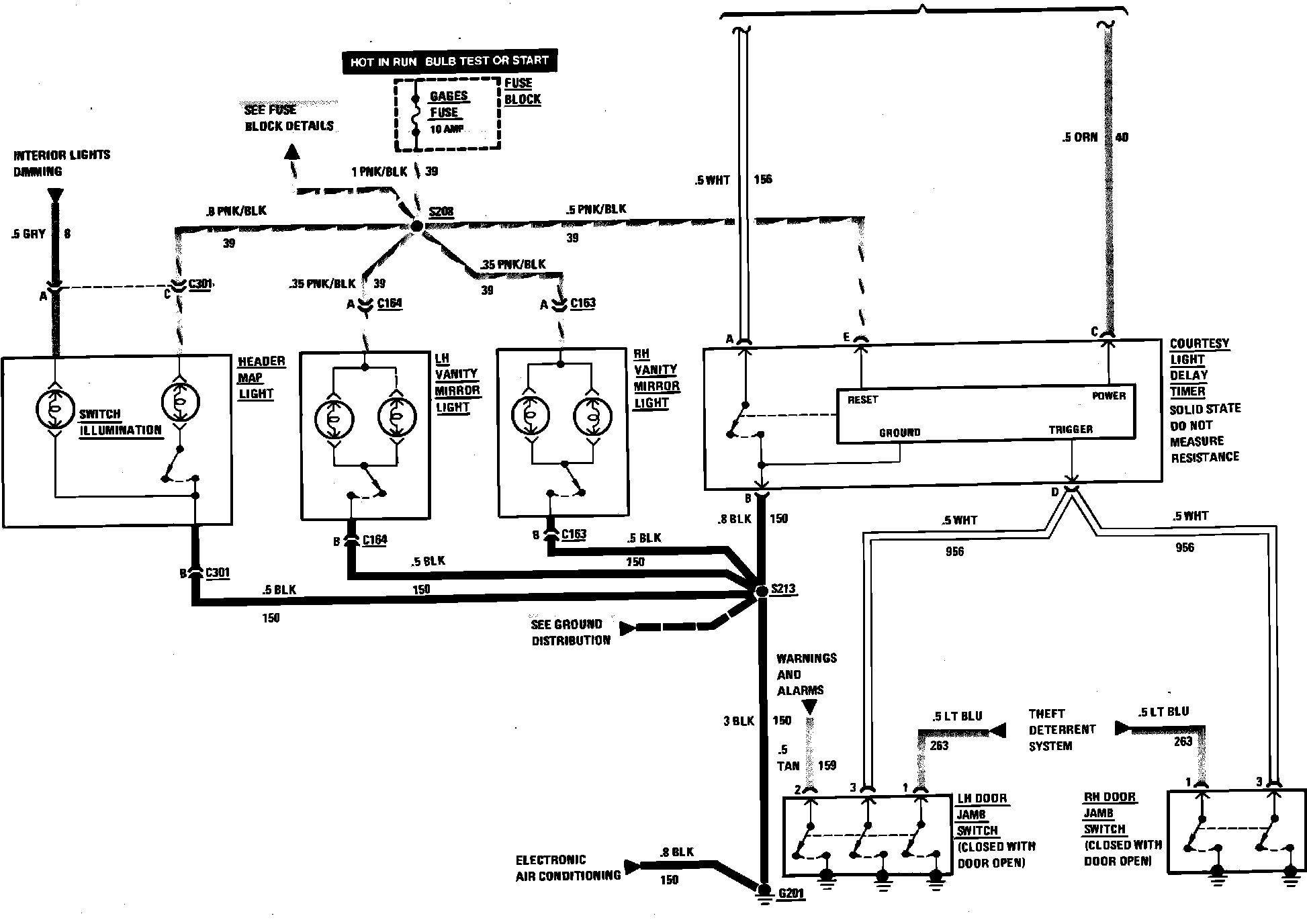

Interior Light Wiring Circuit (Cargo, Courtesy, Header Map, Map, Spare Tire & Vanity Mirror):

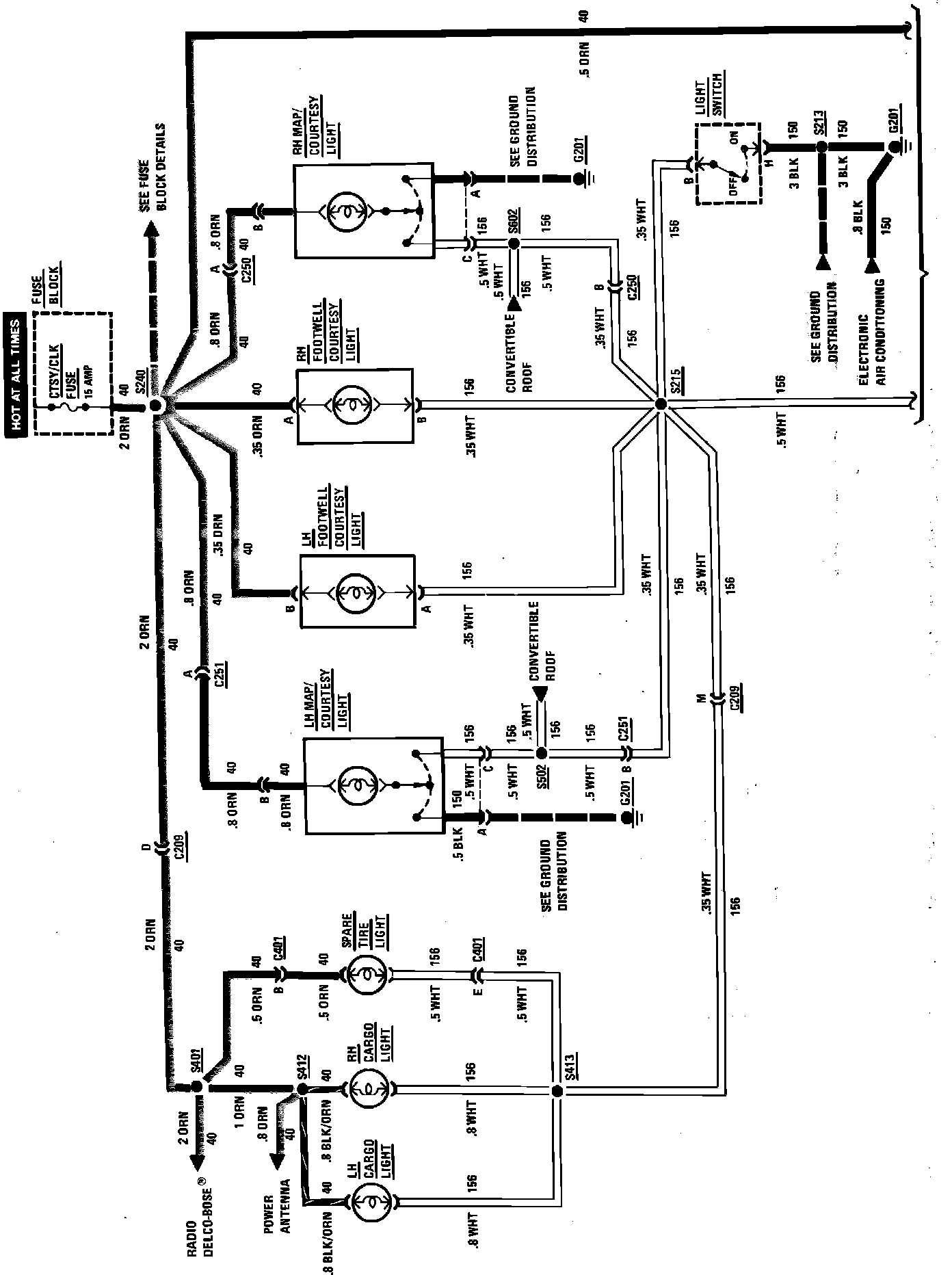

Interior Light Wiring Circuit (Cargo, Courtesy, Header Map, Map, Spare Tire & Vanity Mirror):
