Ignition Controls

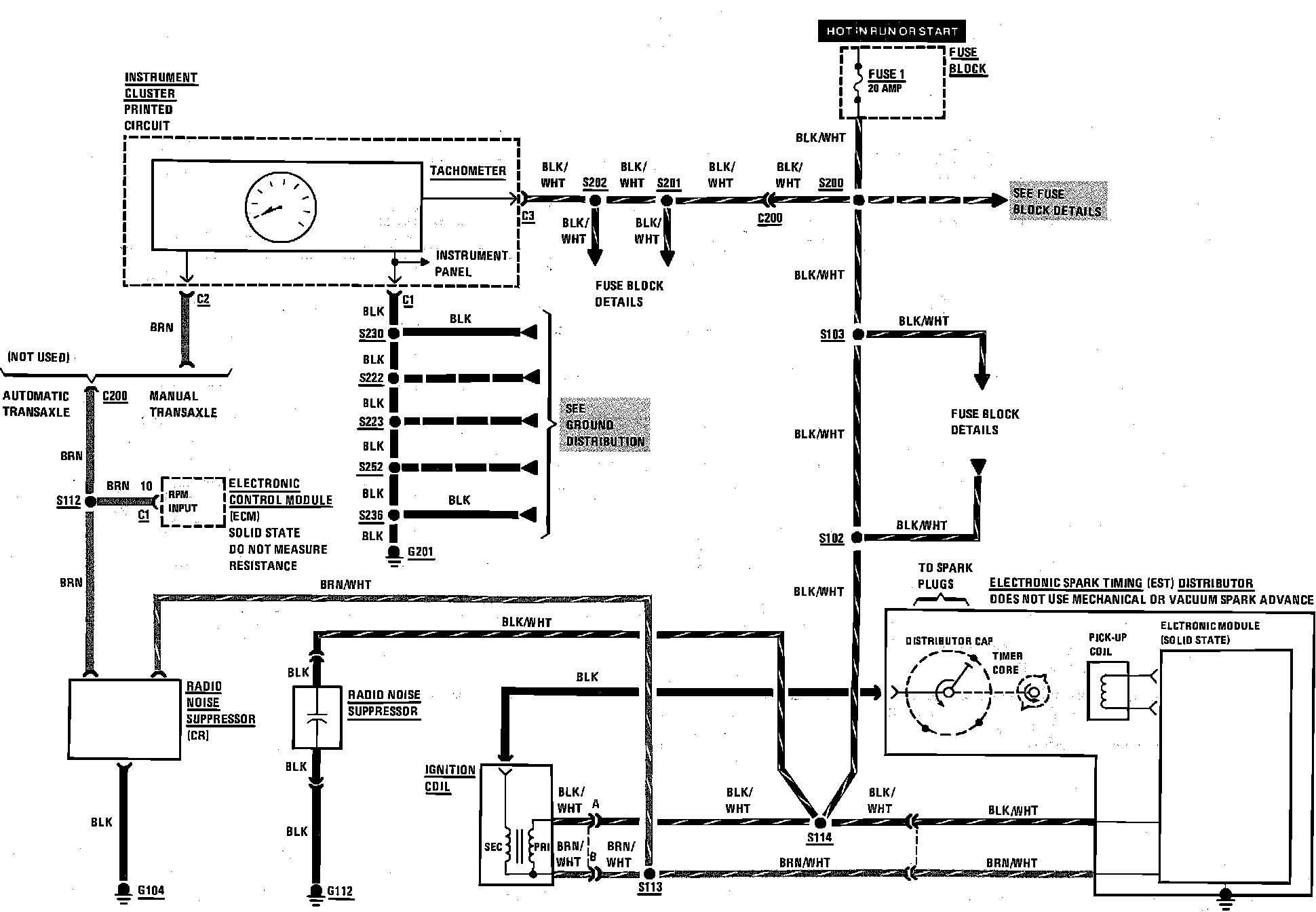

Fig. 17 Electronic Engine Controls Wiring Circuit. Ignition:

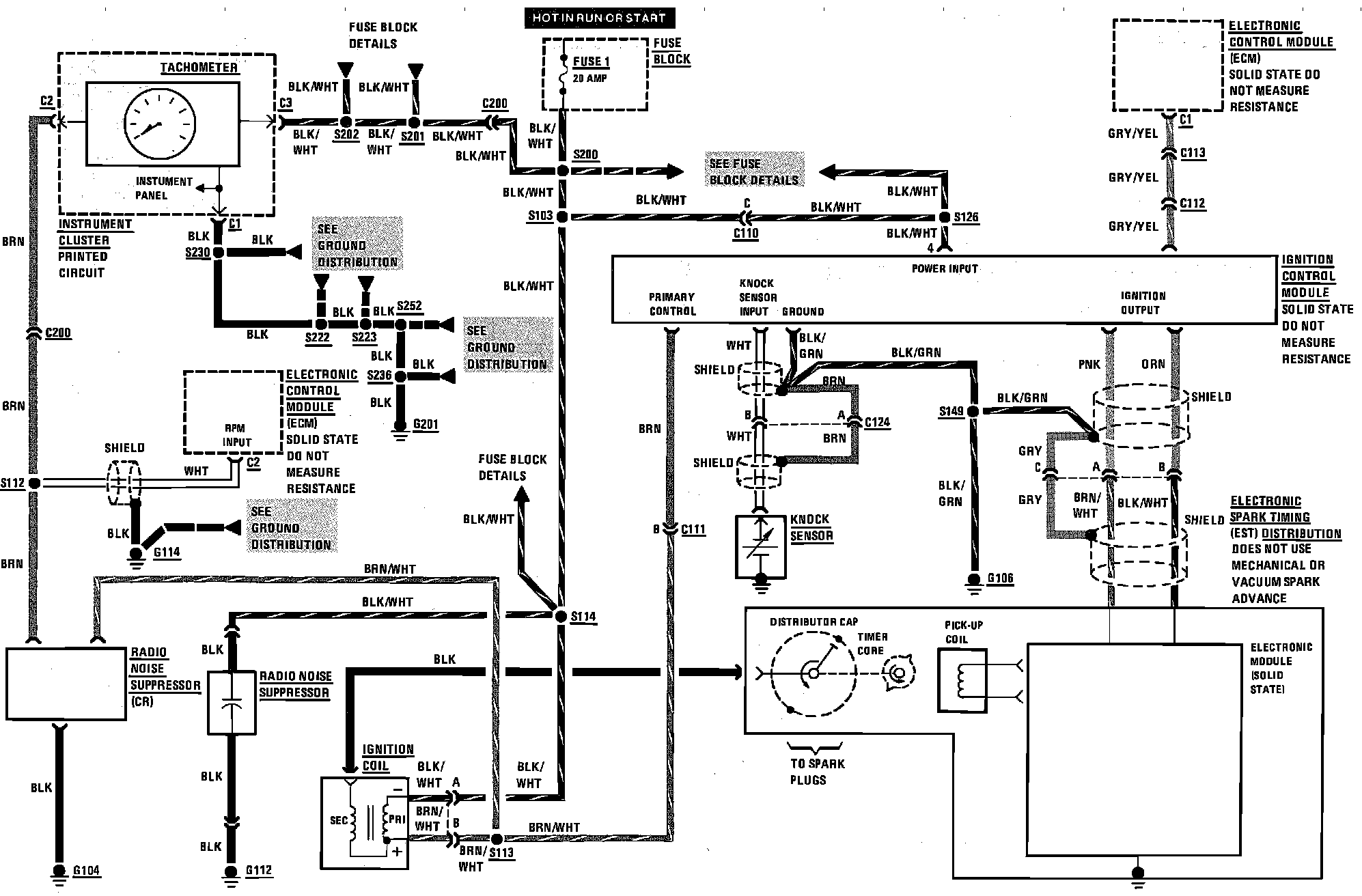

Fig. 38 Multi-Port Fuel Injection Wiring Circuit. Turbo Engine (Ignition):
