Drive Belt: Service and Repair

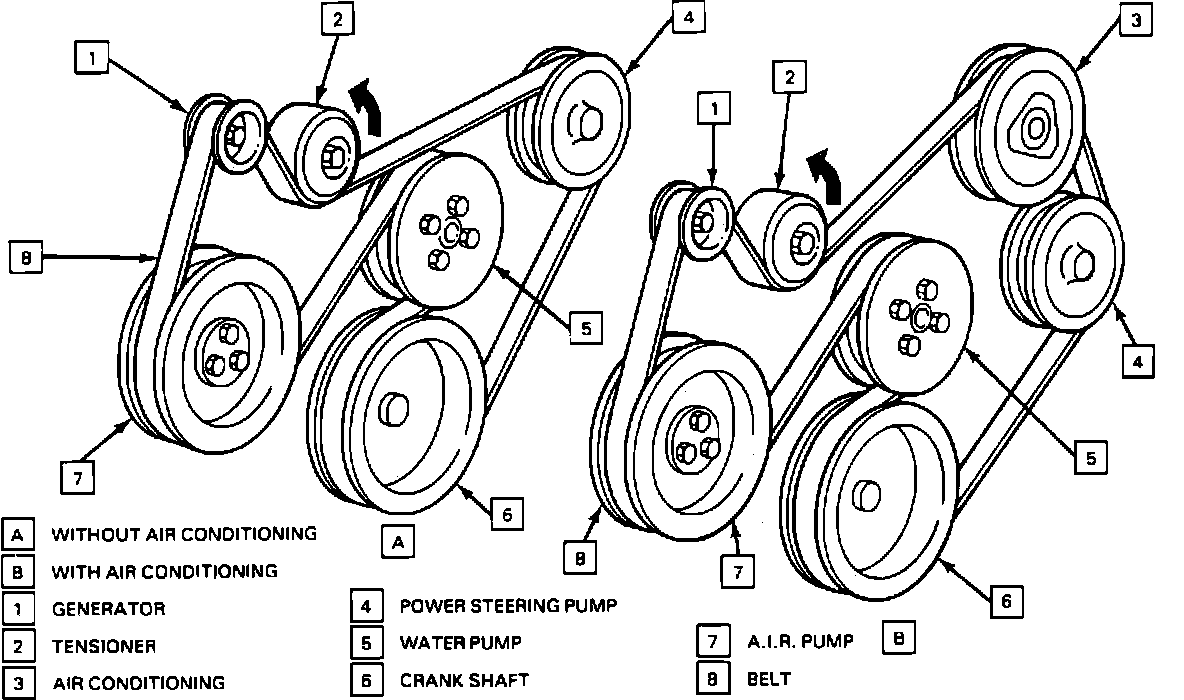

Fig. 17 Serpentine Drive Belt Routing. 1989-90 Models W/man Trans.:

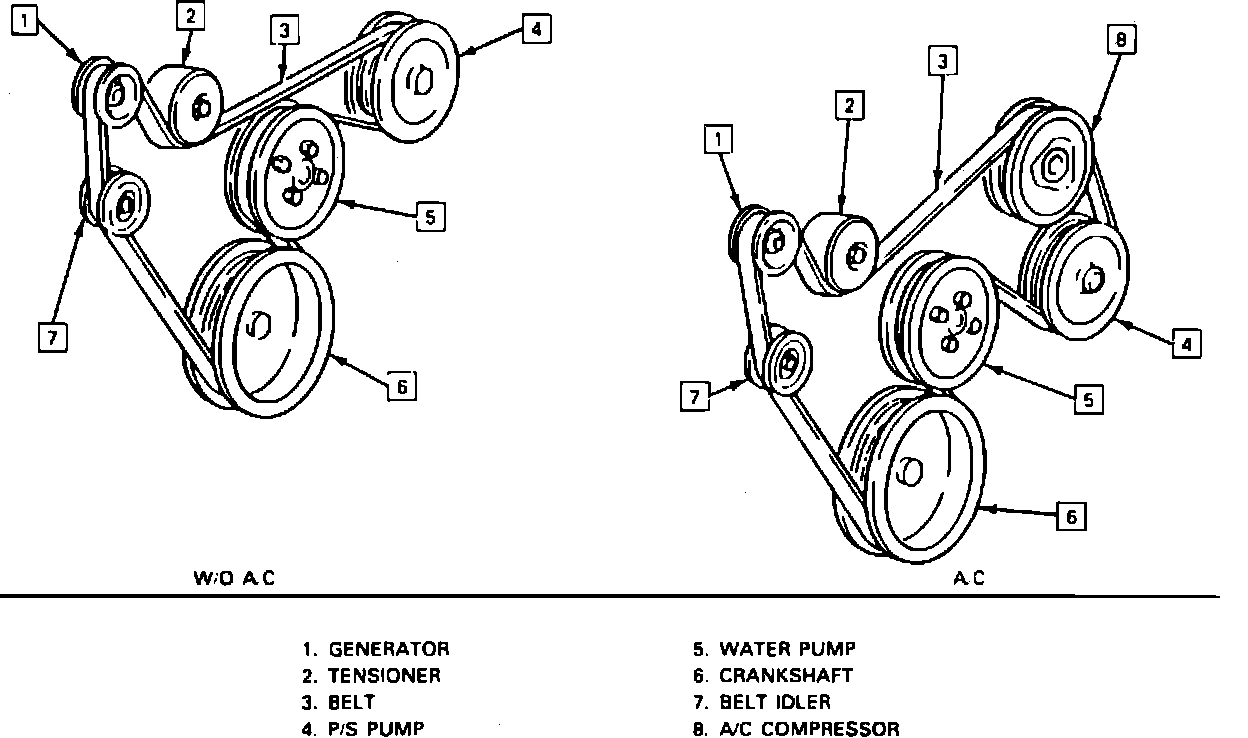

Fig. 18 Serpentine Drive Belt Routing. 1989-90 Models W/auto. Trans.:

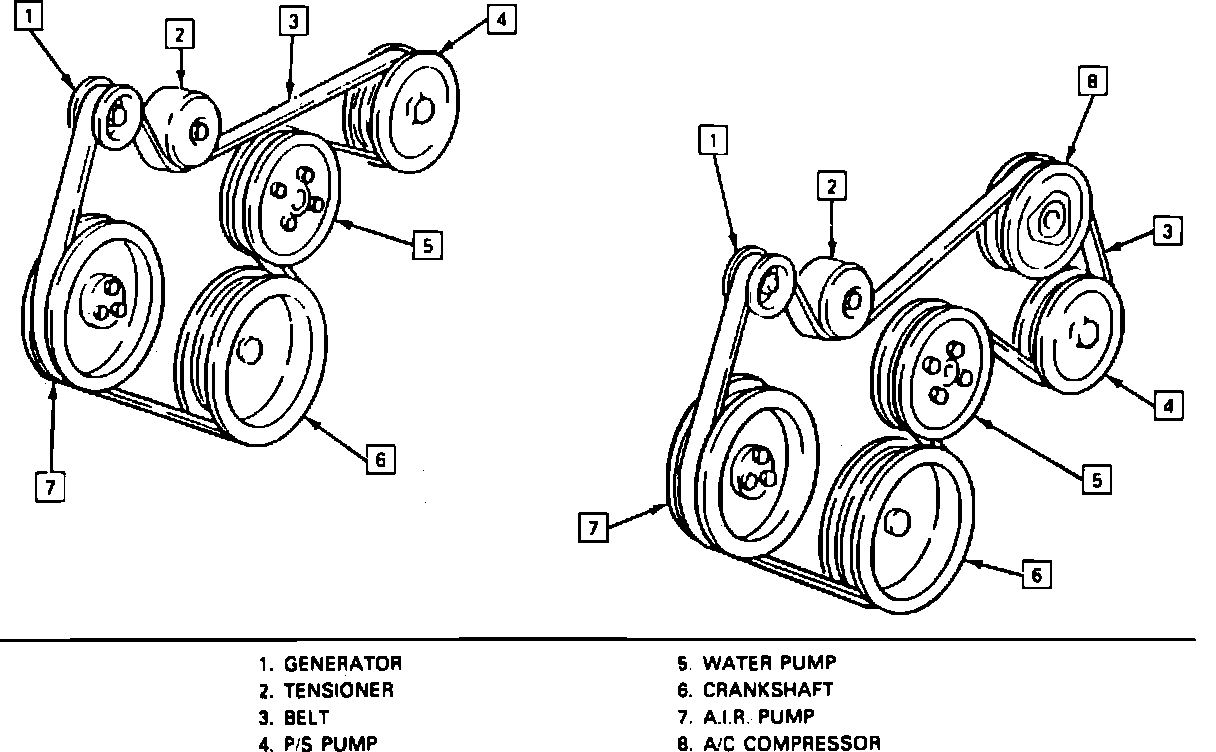

Fig. 19 Serpentine Drive Belt Routing. 1991-92:

1. Disconnect battery ground cable.
2. Lift belt tensioner off belt using a socket and breaker bar.
3. Remove drive belt.
4. Reverse procedure to install. Start and operate engine for 5 minutes. Check belt tension using a suitable belt tension gauge. On models less A/C, check belt tension between tensioner and power steering pump. On models with A/C, check belt tension between tensioner and A/C compressor. Refer to Engine/Drive Belts, Mounts, Brackets and Accessories/Drive Belt/Specifications/Mechanical for specifications. Operate engine 30 seconds, then recheck belt tension. If tension is not with in limits, check belt and tensioner and replace as necessary.
