Antilock Brakes / Traction Control Systems
>>
System Diagram
>>
Power Distribution Circuit

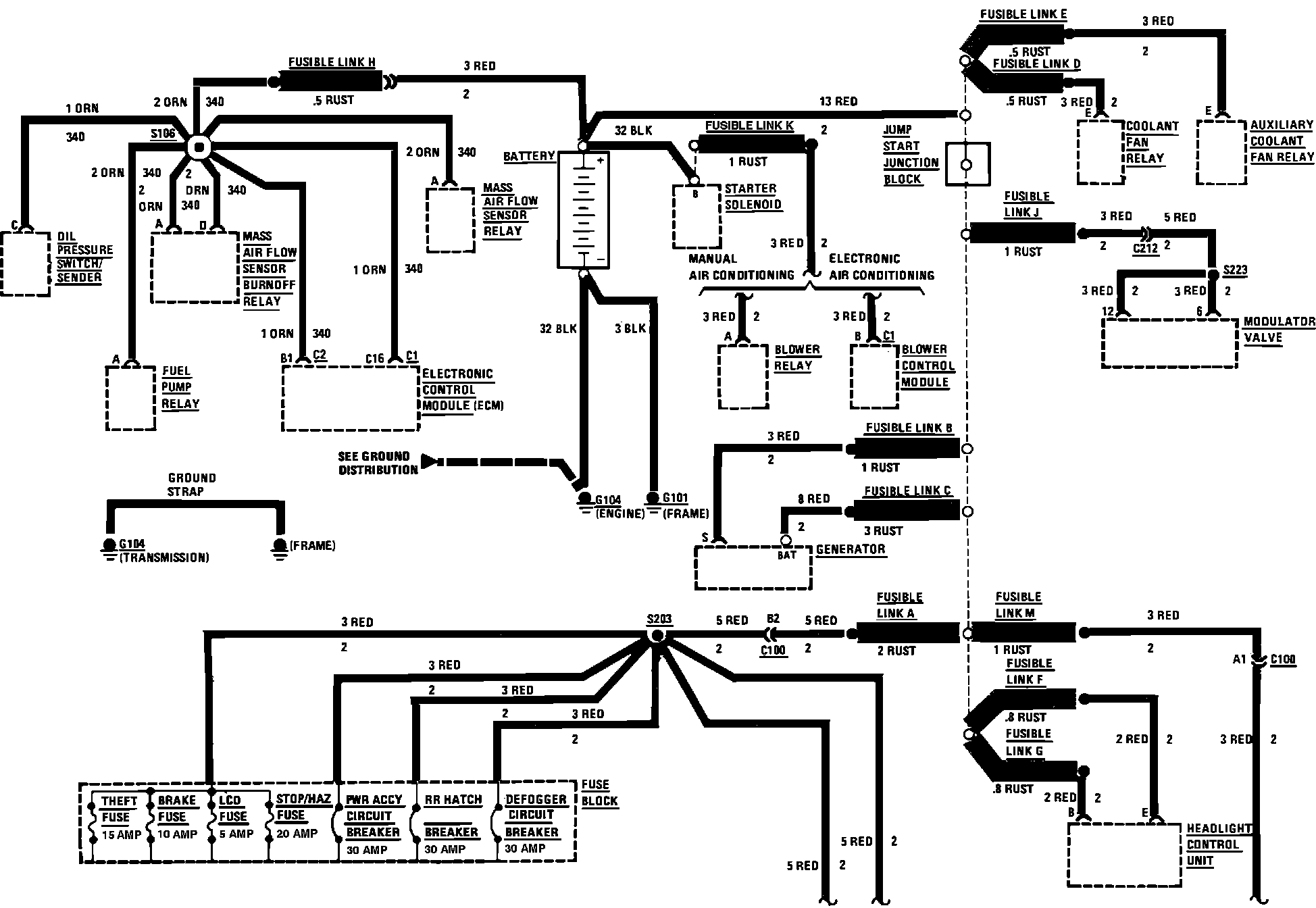

Power Distribution Circuit
Power Distribution:
