Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1990
>>
Caprice V6-262 4.3L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
With Carbureted Engines
With Carbureted Engines

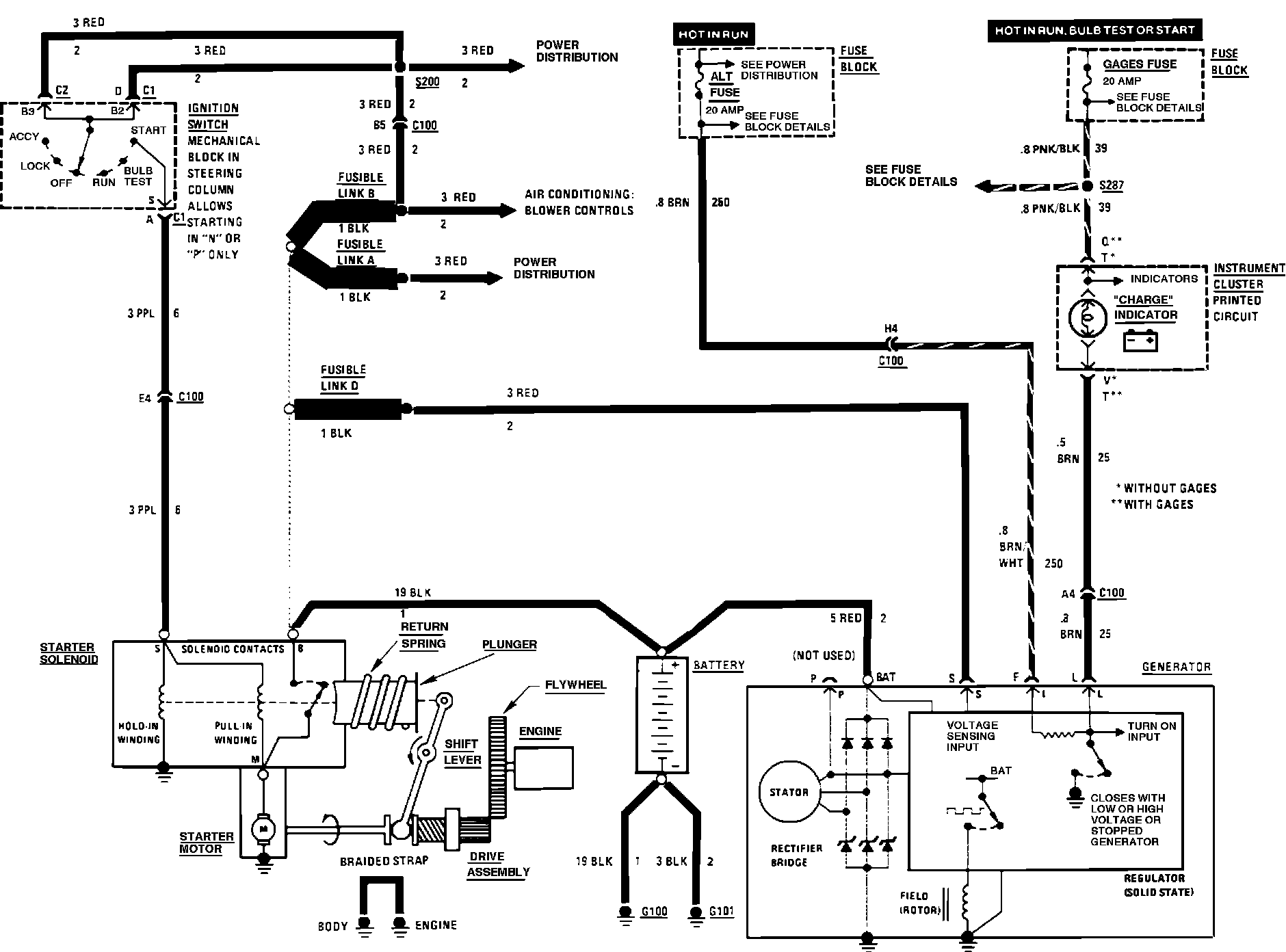

Charging & Starting System. With Carbureted Engines:
